S8050
Rev.F May.-2021
DATA SHEET
描述 / Descriptions

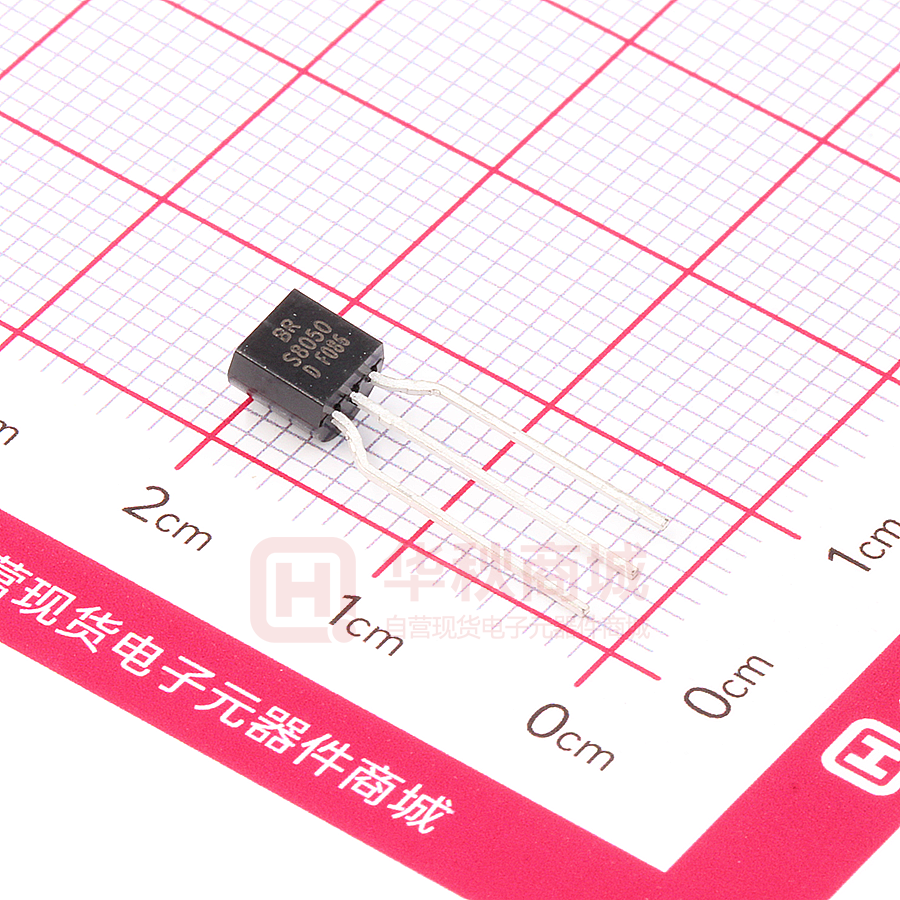

TO-92 塑封封装 NPN 半导体三极管。Silicon NPN transistor in a TO-92 Plastic Package.
特征 / Features
PC, IC 大,与 S8550 互补。
High PC and IC, complementary pair with S8550.
用途 /
Applications
用于乙类推挽功放。
Amplifier of portable radios in class B push-pull operation.
内部等效电路 / Equivalent Circuit
引脚排列 / Pinning
12
3
PIN1:Collector
PIN 2:Base
PIN 3:Emitter
放大及印章代码 / hFE Classifications & Marking
hFE Classifications
Symbol
hFE Range
http://www.fsbrec.com
B
C
D
85~160
120~200
160~300
1/6
S8050
Rev.F May.-2021
极限参数 /
DATA SHEET
Absolute Maximum Ratings(Ta=25℃)
参数
Parameter
Collector to Base Voltage
符号
Symbol
VCBO
数值
Rating
40
单位
Unit
V
Collector to Emitter Voltage
VCEO
25
V
Emitter to Base Voltage
VEBO
6.0
V
Collector Current - Continuous
IC
800
mA
Base Current - Continuous
IB
200
mA
Collector Power Dissipation
PC
625
mW
Junction Temperature
Tj
150
℃
Tstg
-55~150
℃
Storage Temperature Range
电性能参数 / Electrical Characteristics(Ta=25℃)
参数
符号
测试条件
Parameter
Symbol
Test Conditions
Collector to Base Breakdown
VCBO IC=0.1mA
IE=0
Voltage
Collector to Emitter Breakdown
VCEO IC=2.0mA
IB=0
Voltage
Emitter to Base Breakdown Voltage VEBO IE=0.1mA
IC=0
最小值 典型值 最大值 单位
Min
Typ
Max
Unit
40
V
25
V
6.0
V
Collector Cut-Off Current
ICBO
VCB=35V
IE=0
0.1
μA
Emitter Cut-Off Current
IEBO
VEB=6.0V
IC=0
0.1
μA
hFE(1)
VCE=1.0V
IC=100mA
85
hFE(2)
VCE=1.0V
IC=500mA
40
hFE(3)
VCE=1.0V
IC=5.0mA
45
VCE(sat)
IC=500mA
IB=50mA
0.28
0.6
V
VBE(sat)
IC=500mA
IB=50mA
0.98
1.2
V
VBE
VCE=1.0V
IC=10mA
0.66
1.0
V
fT
VCE=10V
VCB=10V
f=1.0MHz
IC=50mA
IE=0
DC Current Gain
Collector to Emitter Saturation
Voltage
Base to Emitter Saturation Voltage
Base to Emitter Voltage
Transition Frequency
Collector Output Capacitance
http://www.fsbrec.com
Cob
100
300
190
MHz
9.0
pF
2/6
S8050
Rev.F May.-2021
DATA SHEET
电参数曲线图 / Electrical Characteristic Curve
http://www.fsbrec.com
3/6
S8050
Rev.F May.-2021
DATA SHEET
外形尺寸图 / Package Dimensions
http://www.fsbrec.com
4/6
S8050
Rev.F May.-2021
DATA SHEET
印章说明 / Marking Instructions
BR
S8050
C ****
说明:
BR:
为公司代码
S8050:
为产品型号
C:
为 hFE 分档代码
****:
为生产批号代码,随生产批号变化。
Note:
BR:
Company Code.
S8050:
Product Type.
C:
hFE Classifications Symbol.
****:
Lot No. Code, code change with Lot No.
http://www.fsbrec.com
5/6
S8050
Rev.F May.-2021
DATA SHEET
波峰焊温度曲线图(无铅) / Temperature Profile for Dip Soldering(Pb-Free)
说明:
Note:
1、预热温度 25~150℃,时间 60~90sec;
1.Preheating:25~150℃, Time:60~90sec.
2、峰值温度 255±5℃,时间持续为 5±0.5sec;
2.Peak Temp.:255±5℃, Duration:5±0.5sec.
3、焊接制程冷却速度为 2~10℃/sec.
3. Cooling Speed: 2~10℃/sec.
耐焊接热试验条件 /
温度:270±5℃
Resistance to Soldering Heat Test Conditions
时间:10±1 sec.
Temp.:270±5℃
Time:10±1 sec
包装规格 / Packaging SPEC.
散件包装 / BULK
Package Type
封装形式
TO-92
Units 包装数量
Dimension 包装尺寸
Inner Boxes/Outer Box
盒/箱
(unit:mm3)
Units/Bag
只/袋
Bags/Inner Box
袋/盒
Units/Inner Box
只/盒
Units/Outer Box
只/箱
Bag 袋
Inner Box 盒
Outer Box 箱
1,000
10
10,000
1,000
10
10,000
5
50,000
135×190
237×172×102
560×245×195
10
100,000
135×190
237×172×102
560×245×375
Dimension 包装尺寸
(unit:mm3)
Units/tape
只/纸带
Tape/Inner Box
纸带/盒
Rows/Inner Box
纸带层/盒
Inner Boxes/Outer Box
盒/箱
Units/Outer Box
只/箱
Inner Box 盒
Outer Box 箱
3,000
1
120
10
30,000
328×230×42
小箱 480×346×235,
大箱 547×407×268
编带包装 / AMMO
Package Type
封装形式
TO-92
Units 包装数量
使用说明 / Notices
http://www.fsbrec.com
6/6
