UMW 1SS226
SOT-23 Plastic-Encapsulate Transistors

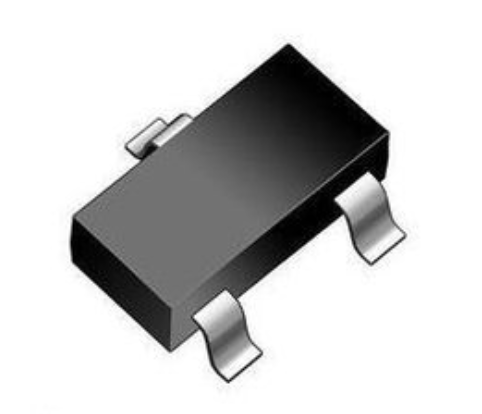

SOT-23
1SS226
SWITCHING DIODE
FEATURES
Low forward voltage
z
z
Fast reverse recovery time
z
Small total capacitance
1. BASE
2. EMITTER
3. COLLECTOR
MARKING: C3
Maximum Ratings ,Single Diode @Ta=25℃
Parameter
Symbol
Limit
Unit
85
Non-Repetitive Peak Reverse Voltage
VRM
Peak Repetitive Peak Reverse Voltage
VRRM
Working Peak Reverse Voltage
VRWM
V
80
V
DC Blocking Voltage
VR
Forward Continuous Current
IFM
300
mA
Average Rectified Output Current
IO
100
mA
Peak Forward Surge Current @t=10ms
2
IFSM
A
Power Dissipation
PD
150
mW
Junction Temperature
TJ
150
℃
Storage Temperature
TSTG
-55~+150
℃
ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)
Parameter
Reverse breakdown voltage
Symbol
Test
V(BR)
IR= 100uA
conditions
Min
Max
80
Unit
V
Reverse voltage leakage current
IR
VR=80V
0.5
uA
Forward voltage
VF
IF=100mA
1.2
V
Diode capacitance
CD
VR=0V , f=1MHz
3
pF
Reverse recovery time
t rr
IF=10mA
4
ns
www.umw-ic.com
1
友台半导体有限公司
UMW
R
UMW 1SS226
SOT-23 Plastic-Encapsulate Transistors
Forward
100
Characteristics
Reverse
1000
Characteristics
(mA)
Ta=100℃
(nA)
REVERSE CURRENT IR
1
Ta
=2
5℃
FORWARD CURRENT
IF
Ta
=1
00
℃
10
0.1
0.01
0.0
0.2
0.4
0.6
FORWARD VOLTAGE
0.8
VF
1.0
Ta=25℃
10
1
1.2
0
20
(V)
40
REVERSE VOLTAGE
Capacitance Characteristics
1.2
100
60
VR
80
(V)
Power Derating Curve
200
(mW)
150
PD
POWER DISSIPATION
CAPACITANCE BETWEEN TERMINALS
CT (pF)
Ta=25℃
f=1MHz
1.0
0.8
0
5
10
REVERSE VOLTAGE
www.umw-ic.com
15
VR
100
50
0
20
(V)
0
25
50
75
AMBIENT TEMPERATURE
2
100
Ta
125
150
(℃)
友台半导体有限公司
UMW
R
Symbol
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
www.umw-ic.com
UMW 1SS226
SOT-23 Plastic-Encapsulate Transistors
Dimensions In Millimeters
Min.
Max.
0.900
1.150
0.000
0.100
0.900
1.050
0.300
0.500
0.080
0.150
2.800
3.000
1.200
1.400
2.250
2.550
0.950 TYP.
1.800
2.000
0.550 REF.
0.300
0.500
0°
8°
3
Dimensions In Inches
Min.
Max.
0.035
0.045
0.000
0.004
0.035
0.041
0.012
0.020
0.003
0.006
0.110
0.118
0.047
0.055
0.089
0.100
0.037 TYP.
0.071
0.079
0.022 REF.
0.012
0.020
0°
8°
友台半导体有限公司
