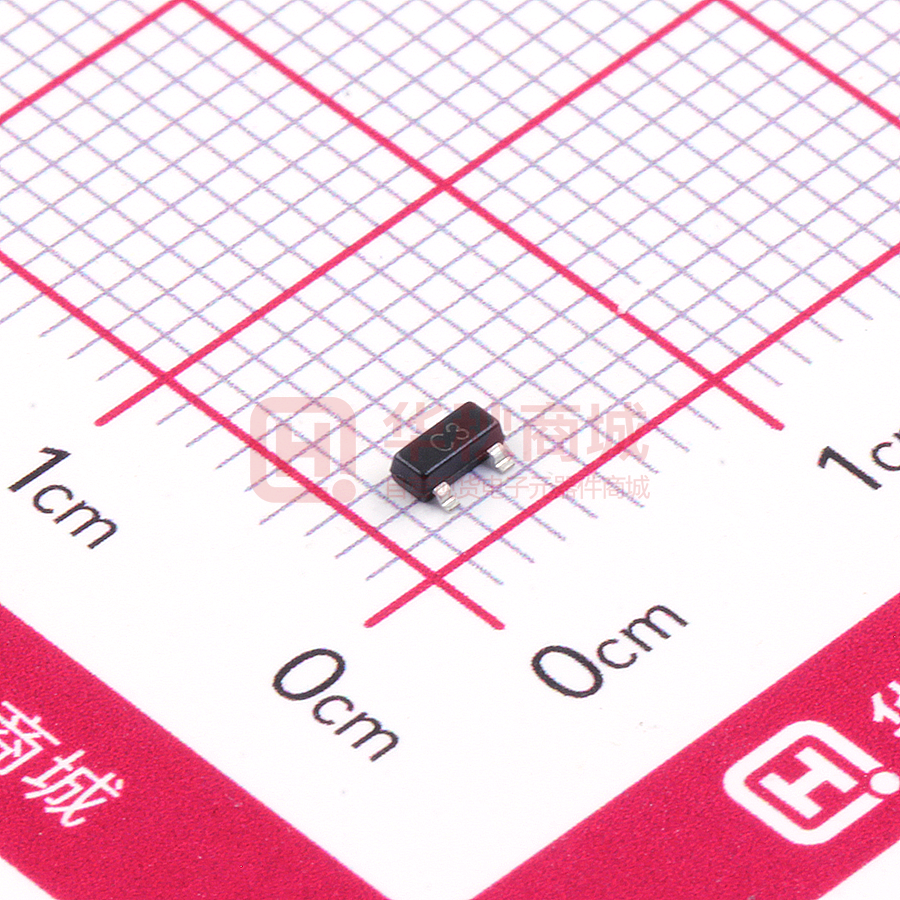

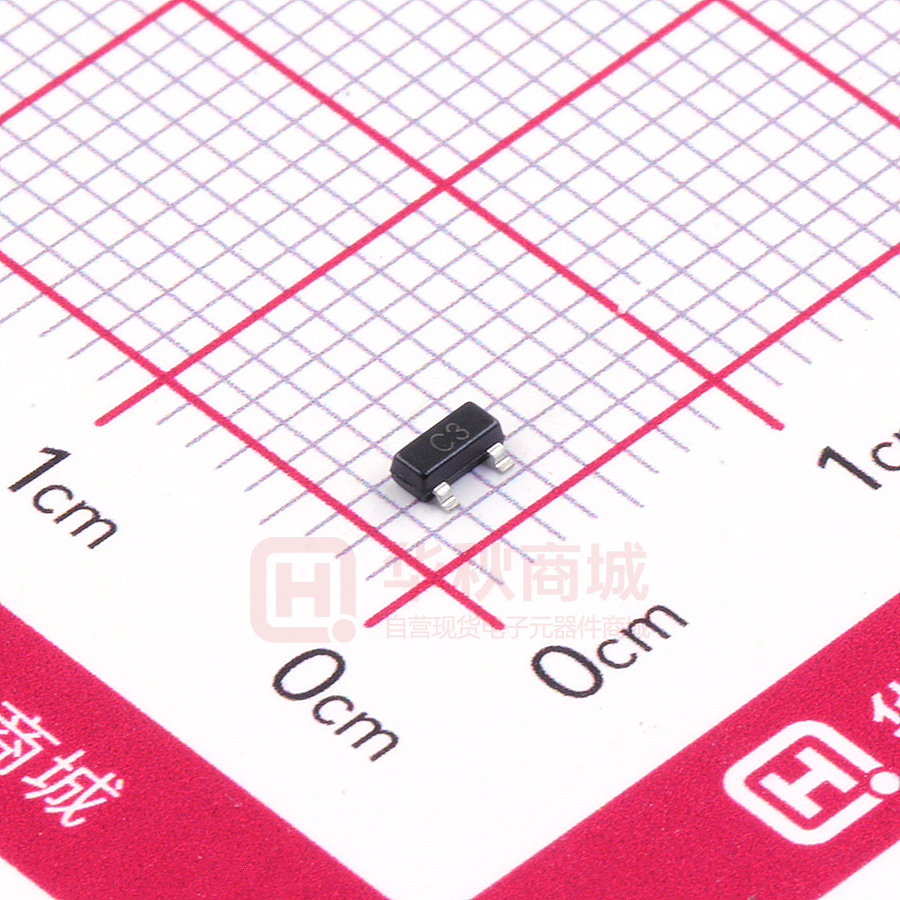

1SS226

1SS226 Surface mount switching diode FEATURES z Low forward voltage:VF(3)=0.9V(typ). z Small total capacitance:CT=0.9pF(typ). z Fast reverse recovery time:trr=1.6ns(typ.) Pb Lead-free APPLICATIONS z High speed switching application. SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Characteristic Symbol Limits Unit Non-Repetitive Peak Reverse Voltage VRM 85 V DC Reverse Voltage VR 80 V Forward Output current Io 100 mA IFSM 2 A Power Dissipation Pd 150 mW Operating Junction Temperature Range Tj 125 ℃ Storage Temperature Range TSTG -55 to +125 ℃ Peak forward surge current @t=10ms ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified Characteristic Symbol Min TYP MAX UNIT V(BR)R 80 - - V IR= 100μA Forward Voltage VF - 0.60 0.72 0.90 1.2 V IF=100mA Reverse Leakage Current IR - - 0.1 0.5 μA VR=30V VR=80V Diode Capacitance CD - 0.9 3.0 pF VR=0V,f=1MHz Reverse Recovery Time trr - 1.6 4.0 ns IF=IR=10mAIrr=0.1*IR Reverse Breakdown Voltage Test Condition TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified www.slkormicro.com 1 1SS226 www.slkormicro.com 2 1SS226 A SOT-23 E K B J D G Min Max A 2.70 3.10 B 1.10 1.50 C 1.0 Typical D 0.4 Typical E 0.35 0.48 G 1.80 2.00 H 0.02 0.1 J H C Dim K 0.1 Typical 2.20 2.60 All Dimensions in mm SOLDERING FOOTPRINT 0.95 0.95 2.00 0.90 0.80 Unit : mm PACKAGE INFORMATION Device Package Shipping 1SS226 SOT-23 3000/Tape&Reel www.slkormicro.com 3
