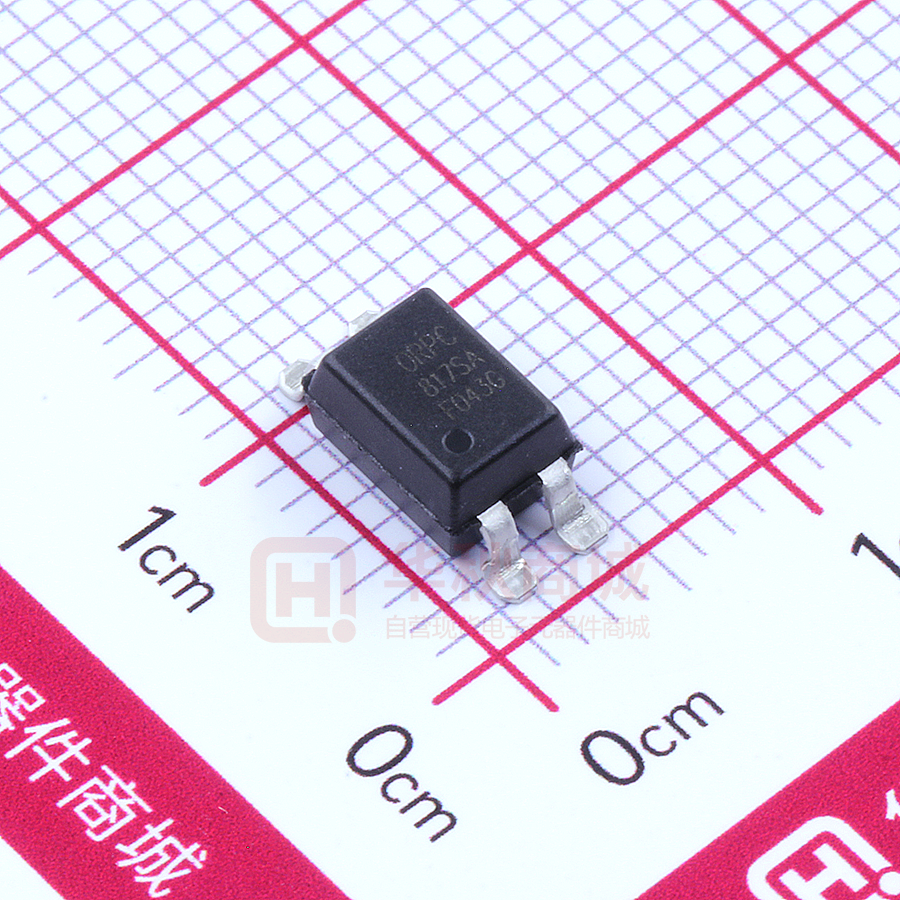

ORPC-817SA

Shenzhen Orient Components Co ., Ltd ORPC-817 ORIENT Photo coupler Product Data Sheet Part Number: ORPC-817 Customer: Date: SHENZHEN ORIENT COMPONENTS CO ., LTD Block A3rd Floor No.4 Building,Tian’an Cyber Park,Huangge Rd,LongGang Dist,Shenzhen,GD TEL：0755-29681817 FAX：0755-29681200 www.orient-opto.com Copyright© 2020 Orient .All rights Reserved 1 V7 Shenzhen Orient Components Co ., Ltd ORPC-817 1. Features (1) (2) (3) (4) Current transfer ratio ( CTR : MIN. 50% at IF = 5mA, VCE = 5V ) High input-output isolation voltage ( Viso = 5,000Vrms ) Response time ( tr : TYP. 4µs at VCE = 2V, IC = 2mA, RL = 100Ω) Safety approval UL approved (No.E323844) VDE approved(No.40029733) CQC approved (No.CQC09001029446) CE approved (No.AC/0431008) State Grid approved (No.SGCM013420170152 ) (5) In compliance with RoHS, REACH standards (6) MSL Class Ⅰ 2. Description (1) ORPC-817 photo coupler consist of one piece of GaAs emitter and one piece of NPN transistor. (2) Packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option. 3. Applications (1) Switching power supply (2) Ammeter (3) Computer (4) Instrumental application, measurement machine (5) Signal transforming systems (6) Imbursement equipments, duplicating machine, automat (7) Family-use electric equipments, such as fans 4. Functional Diagram Copyright© 2020 Orient .All rights Reserved 2 V7 ORPC-817 Shenzhen Orient Components Co ., Ltd 5. Absolute Maximum Ratings at Ta=25℃ Parameter Symbol Rated Value Unit Forward Current IF 60 mA Peak forward Current (100μs pulse, 100Hz frequency) IFP 1 A Reverse Voltage VR 6 V Consume Power P 70 mW Collector and emitter Voltage VCEO 80 Emitter and collector Voltage VECO 7 Collector Current IC 50 mA Consume Power PC 150 mW Total Consume Power Ptot 200 mW *1 Insulation Voltage V iso 5,000 Vrms Max Insulation Voltage (Insulating oil test) VIOTM 10,000 V Rated Impulse Insulation Voltage V IORM 630 V Working Temperature Topr -55 to + 110 Deposit Temperature Tstg -55 to + 125 *2 Soldering Temperature Tsol 260 Input Output V ℃ *1.AC For 1 Minute, R.H. = 40 ~ 60% Isolation voltage shall be measured using the following method. (1) Short between anode and cathode on the primary side and between collector and emitter onthe secondary side. (2) The isolation voltage tester with zero-cross circuit shall be used. (3) The waveform of applied voltage shall be a sine wave. *2. Soldering time is 10 seconds Copyright© 2020 Orient .All rights Reserved 3 V7 ORPC-817 Shenzhen Orient Components Co ., Ltd 6. Electro-Optical Characteristics (Ta=25℃ unless specified otherwise) Parameter Input Output Min Typ.* Max Unit Condition Forward Voltage VF --- 1.2 1.4 V IF=20mA Reverse Current IR --- --- 5 μA VR=5V Collector Capacitance Ct --- 30 250 pF V=0, f=1KHz Collector to Emitter Current ICEO --- --- 100 nA VCE=20V, IF=0mA Collector and Emitter attenuation Voltage BVCEO 80 --- --- V IC=0.1mA Emitter and Collector attenuation Voltage BVECO IF=0mA 7 --- --- V CTR 50 --- 600 % Collector Current IC 2.5 --- 30 mA VCE(sat) --- 0.1 0.2 V Insulation Impedance Floating Capacitance IE=0.1mA IF=0mA *1 Current conversion ratio Collector and Emitter Saturation Voltage Transforming Characteristics Symbol IF=5mA VCE=5V IF=20mA IC= 1mA Riso Cf 5×1010 1×1012 --- 0.6 --- Ω 1.0 pF DC500V 40~60%R.H. V=0, f=1MHz VCE=5V, Cut-off Frequency fc --- 80 --- kHz IC=2mA RL=100Ω,-3dB Rise Time tr --- 4 18 μs Descend Time tf --- 3 18 μs VCE=2V, IC=2mA RL=100Ω *1 Current Conversion Ratio = IC / IF × 100% , CTR Tolerance:±3%. Copyright© 2020 Orient .All rights Reserved 4 V7 Shenzhen Orient Components Co ., Ltd ORPC-817 7. Rank Table of Current Transfer Ratio (1) ORPC-817 Grade Sign Min (% ) Max (% ) ORPC-817L 50 100 ORPC-817A 80 160 ORPC-817B 130 260 ORPC-817C 200 400 ORPC-817D 300 600 Min (% ) Max (% ) ORPC-817ML 50 100 ORPC-817MA 80 160 ORPC-817MB 130 260 ORPC-817MC 200 400 ORPC-817MD 300 600 Grade Sign Min (% ) Max (% ) ORPC-817SL 50 100 ORPC-817SA 80 160 ORPC-817SB 130 260 ORPC-817SC 200 400 ORPC-817SD 300 600 Note: Working condition: IF=5mA, VCE=5V, Ta=25℃. (2) ORPC-817M Grade Sign Note: Working condition: IF=5mA, VCE=5V, Ta=25℃. (3) ORPC-817S Note: Working condition: IF=5mA, VCE=5V, Ta=25℃. Copyright© 2020 Orient .All rights Reserved 5 V7 Shenzhen Orient Components Co ., Ltd ORPC-817 8. Order Information Part Number ORPC-817XT-V-W-Z Note X = Lead form option (S, M or none) T = CTR Rank (L, A, B, C, D or none) V = Tape and reel option (TP,TP1 or none). W = Lead frame option (F: Iron, C:copper) Z = ‘G’ code for Halogen free (This options is not necessary). * Halogen Free can be selected. Option Description Packing quantity None Standard DIP-4 100 units per tube M Wide lead bend (0.4 inch spacing) 100 units per tube S(TP) Surface mount lead form (low profile) + TP tape & reel option 2000 units per reel S(TP1) Surface mount lead form (low profile) + TP1 tape & reel option 2000 units per reel Copyright© 2020 Orient .All rights Reserved 6 V7 Shenzhen Orient Components Co ., Ltd ORPC-817 9. Naming Rule 1. Manufacturer : ORIENT. 2. Part Number : 817. 3. Shape Code . 4. Rank Code ： CTR Rank 5. Lead frame Code 6. Year Code 7. Week Code 8. Identification 9. Anode. ：‘F’ means Iron，‘C’ means Copper. ： '1' means '2021' and so on. ： 01 means the first week, 02 means the second week and so on. . * Halogen Free Mark can be selected. Copyright© 2020 Orient .All rights Reserved 7 V7 Shenzhen Orient Components Co ., Ltd ORPC-817 10. Package Dimension (Unit：mm） (1) ORPC-817 (2) ORPC-817M Copyright© 2020 Orient .All rights Reserved 8 V7 Shenzhen Orient Components Co ., Ltd ORPC-817 (3) ORPC-817S 11. Taping Dimensions (1)ORPC-817S-TP Copyright© 2020 Orient .All rights Reserved 9 V7 Shenzhen Orient Components Co ., Ltd ORPC-817 (2)ORPC-817S-TP1 Description Symbol Dimension in mm (inch) Tape wide W 16±0.3 (.63) Pitch of sprocket holes P0 4±0.1 (.15) Distance of compartment F P2 7.5±0.1 (.295) Distance of compartment to compartment P1 8±0.1 (.472) 2±0.1 (.0079) Package Type Quantities(pcs) 12. TP/TP1 2000 Recommended Foot Print Patterns (Mount Pad) (Unit：mm） Copyright© 2020 Orient .All rights Reserved 10 V7 Shenzhen Orient Components Co ., Ltd ORPC-817 13. Package Dimension (1) package dimension DIP Type Packing Information Packing type Tube Qty per Tube 100pcs Small box (Inner) Dimension 525*128*60mm Large box (Outer) Dimension 545*290*335mm The Amount per Inner Box 5,000pcs The Amount per Outer Box 50,000pcs SOP Type Packing Information Packing type Reel type Tape Width 16mm Qty per Reel 2,000pcs Small box (inner) Dimension 345*345*58.5mm Large box (Outer) Dimension 620x360x360mm Max qty per small box 4,000pcs Max qty per large box 40,000pcs (2)Packing Label Sample Note： 1. 2. Material Code :Product ID. P/N :Contents with "Order Information" in the specification. 3. Lot No. :Product data. 4. D/C :Product weeks. 5. Quantity :Packaging quantity. Copyright© 2020 Orient .All rights Reserved 11 V7 ORPC-817 Shenzhen Orient Components Co ., Ltd 14. Reliability Test NO. 1 ITEMS RSH 耐焊接热 Reliability Testing QTY. (Pcs) 22 Condition 260±5℃ Process 10s/3 次 Device Standard 锡炉 JESD22-A106 高温烤箱 测试仪 JESD22-A103 低温箱 测试仪 JESD22-A119 168 hrs 2 HTSL 高温存储 77 125℃ 500 hrs 1000 hrs 168 hrs 3 LTSL 低温存储 77 -55℃ 500 hrs 1000 hrs 4 5 TC 温度循环 TS 温度冲击 77 H:125℃ 15min ∫5min L:-55℃ 15min 300 cycle 冷热冲击机 JESD22-A104 77 H:100℃ 5min ∫15s L:-40℃ 5min 300 cycle 冷热冲击机 JESD22-A106 高温烤箱 测试仪、老 化电路板 JESD22-A108 ESD静电测 试仪 JESD22-A114 锡炉 JESD22-B102 高温烤箱 ，测试仪 JESD22-A103 恒温恒湿 机，测试仪 JESD22-A101 压力锅 JESD22-A102 168 hrs 6 7 8 9 10 11 HTOL 高温操作 ESD-HBM 人体模式 SD 可焊性 HTRB 高温反向偏压 H3TRB 温湿度反向偏 压，寿命试验 Autoclave 压力锅 110°C IF=10mA Vce=5V 500 hrs 22 ≥8KV 1Cycle 1次 22 Pb-free 245±5℃ 5S/1次 77 HTRB ＠125℃ Vce=80v 77 77 77 H3TRB 85℃,85%RH Vce=80v Ta=121 ℃,100%RH,2atm Copyright© 2020 Orient .All rights Reserved 1000 hrs 168 hrs 500 hrs 1000 hrs 168 hrs 500 hrs 1000 hrs 96hrs 12 V7 Shenzhen Orient Components Co ., Ltd ORPC-817 15. Temperature Profile Of Soldering (1).IR Reflow soldering (JEDEC-STD-020C compliant) One time soldering reflow is recommended within the condition of temperature and time profile shown below. Do not solder more than three times. Profile item Conditions Preheat - Temperature Min (T Smin ) 150˚C - Temperature Max (T Smax ) 200˚C - Time (min to max) (ts) 90±30 sec Soldering zone - Temperature (TL ) 217˚C - Time (t L ) 60 sec Peak Temperature 260˚C Peak Temperature time 20 sec Ramp-up rate 3˚C / sec max. Ramp-down rate from peak temperature 3~6˚C / sec Reflow times ≤3 Copyright© 2020 Orient .All rights Reserved 13 V7 Shenzhen Orient Components Co ., Ltd ORPC-817 (2).Wave soldering (JEDEC22A111 compliant) One time soldering is recommended within the condition of temperature. Temperature 260+0/-5˚C Time 10 sec Preheat temperature 25 to 140˚C Preheat time 30 to 80 sec (3).Hand soldering by soldering iron Allow single lead soldering in every single process. One time soldering is recommended. Copyright© 2020 Orient .All rights Reserved Temperature 380+0/-5˚C Time 3 sec max 14 V7 Shenzhen Orient Components Co ., Ltd ORPC-817 16. Characteristics Curves Copyright© 2020 Orient .All rights Reserved 15 V7 Shenzhen Orient Components Co ., Ltd Copyright© 2020 Orient .All rights Reserved 16 ORPC-817 V7
