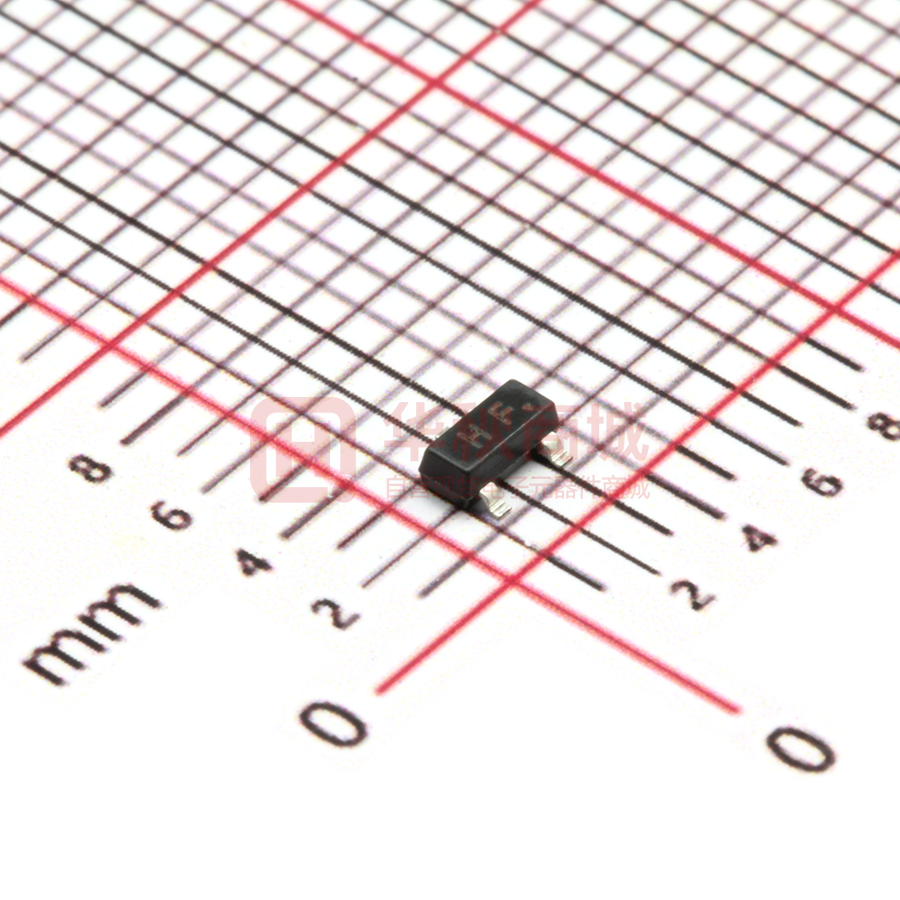

2SC1815
SOT-23 Plastic-Encapsulate Transistors
2SC1815
TRANSISTOR (NPN)
SOT-23
FEATURES
z Power
dissipation
z MARKING:2SC1815=HF
1. BASE
2. EMITTER
3. COLLECTOR
MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)
Symbol
Parameter
Value
Unit
VCBO
Collector to Base Voltage
60
V
VCEO
Collector to Emitter Voltage
50
V
VEBO
Emitter to Base Voltage
5
V
IC
Collector Current
150
mA
PC
Power Dissipation
200
mW
Tj
Junction Temperature
150
℃
Tstg
Storage Temperature
-55~+150
℃
ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)
Typ
Symbol
ol
Test conditions
Collector-base breakdown voltage
V(BR)CBO
IC=100μA, IE=0
60
V
Collector-emitter breakdown voltage
V(BR)CEO
IC=0.1mA, IB=0
50
V
Parameter
Min
Max
Unit
Collector cut-off current
ICBO
VCB=60V, IE=0
0.1
μA
Collector cut-off current
ICEO
VCE=50V, IB=0
0.1
μA
Emitter cut-off current
IEBO
VEB=5V, IC=0
0.1
μA
DC current gain
hFE
VCE=6V, IC=2mA
130
400
Collector-emitter saturation voltage
VCE((sat) IC=100mA, IB= 10mA
0.25
V
Base-emitter saturation voltage
VBE(sat)
(
IC=100mA, IB= 10mA
1
V
Transition frequency
fT
VCE=10V, IC= 1mA, f = 30MHz
MHz
80
CLASSIFICATION OF hFE
Rank
Range
L
H
200-400
130-200
DN:T21603A0
http://www.microdiode.com
Rev:2021A0
Page :1
2SC1815
Typical Characteristics
VCE(sat)/VBE(sat)-IC
http://www.microdiode.com
fT-Ic
Rev:2021A0
Page :2
2SC1815
Outlitne Drawing
SOT-23 Package Outline Dimensions
e
Suggested Pad Layout
0.037
0.95
0.037
0.95
L
L1
E
E1
Symbol
A
A1
b
c
D
E
E1
e
L
L1
θ
Dimensions In Millimeters
Min
Typ
Max
0.90
1.40
0.10
0.00
0.30
0.50
0.20
0.08
2.80
2.90
3.10
1.20
1.60
2.80
2.25
1.80
1.90
2.00
0.10
0.50
0.4
0°
0.55
10°
Note:
1. Controlling dimension:in/millimeters.
2. General tolerance: ±0.05mm.
3. The pad layout is for reference purposes only.
0.079
2.0
0.035
0.9
0.031
0.8
inches
mm
Important Notice and Disclaimer
Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its
products and specifications at any time without notice. Customers should obtain and confirm the
latest product information and specifications before final design,purchase or use.
Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding
the suitability of its products for any particular purpose, not does Microdiode Electronics
(Jiangsu) assume any liability for application assistance or customer product design. Microdiode
Electronics (Jiangsu) does not warrant or accept any liability with products which are purchased
or used for any unintended or unauthorized application.
No license is granted by implication or otherwise under any intellectual property rights of
Microdiode Electronics (Jiangsu).
Microdiode Electronics (Jiangsu) products are not authorized for use as critical components
in life support devices or systems without express written approval of Microdiode Electronics
(Jiangsu).
http://www.microdiode.com
Rev:2021A0
Page :3
2SC1815
SOT-23 Tape and Reel
Packaging Description:
SOT-23 parts are shipped in tape. The carrier
tape is made from a dissipative (carbon filled)
polycarbonate resin. The cover tape is a multilayer
film (Heat Activated Adhesive in nature) primarily
composed of polyester film,adhesive laye,sealant,
and anti-static sprayed agent.These reeled parts In
standard option are shipped with 3,000 units per 7"
or 17.8cm diameter reel. The reels are clear in color
and is made of polystyrene plastic (anti-static
coated).
3000 pcs
http://www.microdiode.com
7 Inch
45,000 pcs
203×203×195
180,000 pcs
438×438×220
Rev:2021A0
Page :4
