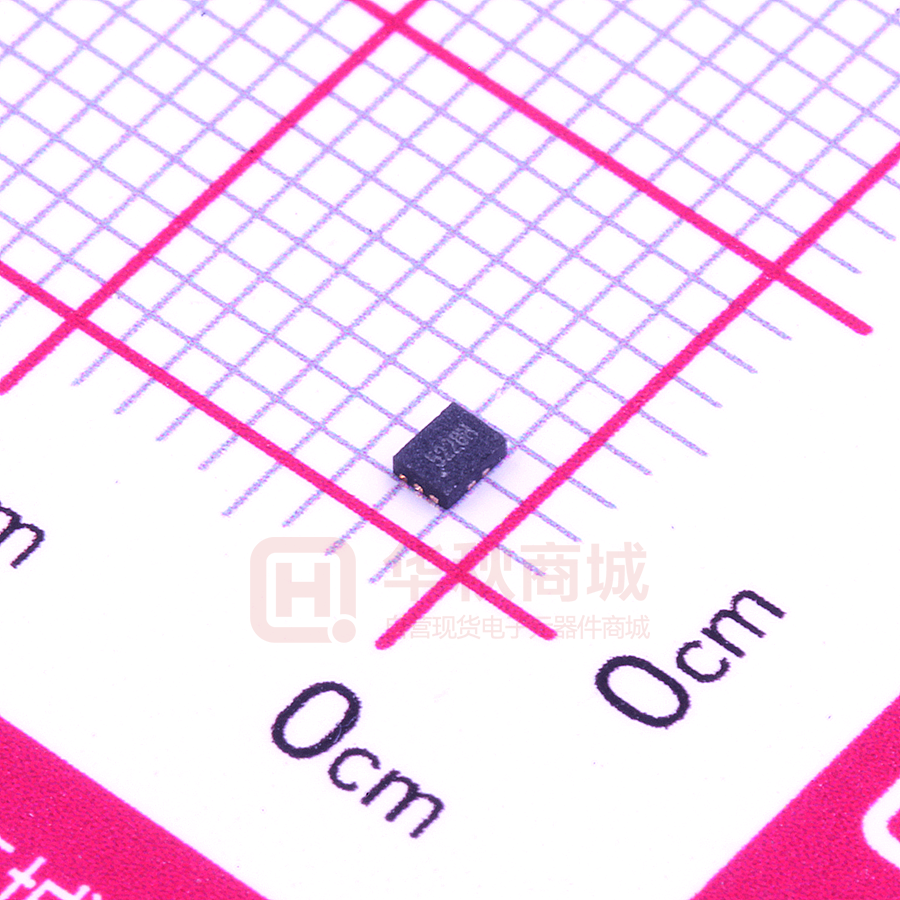

LTC5228YFS10

LTC5228 P-1 DESCRIPTION The LTC5228 is an advanced CMOS analog switch fabricated in Sub−micron silicon gate CMOS technology. The part also features guaranteed Break Before Make (BBM) switching, assuring the switches never short the driver. The switches can handle negative signal down to - 2V. FEATURES           Low RON: 0.4 Ω @ VCC = 3 V Typically Wide Supply Voltage Range: 1.65 V ~ 5.5 V Full -2 V ~ VCC Signal Handling Capability High Off - Channel Isolation Low Standby Current Low Distortion Break-Before-Make (BBM) Switching High Continuous Current Capability: ±300 mA Through Each Switch Applications in Cell Phone Audio Block Speaker and Earphone Switching Ring-Tone Chip Amplifier Switching Modems Available Packages: QFN1.8×1.4-10L, MSOP-10L Order Information Model LTC5228 Package Ordering Number Note1 Packing Option QFN1.8×1.4-10L LTC5228YFS10 Tape and Reel, 3000 MSOP-10L LTC5228YV10 Tape and Reel, 4000 CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. Linearin and designs are registered trademarks of Linearin Technology Corporation. © Copyright Linearin Technology Corporation. All Rights Reserved. All other trademarks mentioned are the property of their respective owners. FN1620-25.1 — Data Sheet 0.4 Ω, Negative Signal Handing, Dual SPDT Analog Switch LTC5228 P-2 PIN CONFIGURATION (Top View) NC2 GND IN2 8 COM2 9 NO2 10 7 6 1 2 VCC NO1 5 NC1 4 IN1 3 COM1 XCC 1 10 No2 NO1 2 9 COM2 COM1 3 8 IN2 IN1 4 7 NC2 NC1 5 6 GND MSOP-10L QFN 1.8 X 1.4-10L PIN DESCRIPTIONS Pin Symbol Description 1 VCC Power Supply 2 NO1 Independent Channels 3 COM1 Common Channels 4 IN1 Controls 5 NC1 Independent Channels 6 GND Ground 7 NC2 Independent Channels 8 IN2 Controls 9 COM2 Common Channels 10 NO2 Independent Channels TRUTH TABLE IN1, IN2 NO1, NO2 NC1, NC2 0 OFF ON 1 ON OFF Analog Symbol NC1 NO1 NC2 NO2 CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. Linearin and designs are registered trademarks of Linearin Technology Corporation. © Copyright Linearin Technology Corporation. All Rights Reserved. All other trademarks mentioned are the property of their respective owners. COM1 IN1 COM2 IN2 FN1620-25.1 — Data Sheet 0.4 Ω, Negative Signal Handing, Dual SPDT Analog Switch P-3 LTC5228 RECOMMENDED OPERATING CONDITIONS Characteristic Symbol Min Max Unit DC Supply Voltag VCC 1.65 5.5 V Digital Select Input Voltage VIN GND 5.0 V Analog Input Voltage VIS -2.0 VCC V Operating Temperature Range TA -45 +85 °C tR tF 0 20 ns/V Input Rise or Fall Time , SELECT RECOMMENDED OPERATING CONDITIONS Characteristic Symbol Value Unit Supply Voltage VCC -0.5 to +6.0 V Analog Input Voltage VIS -2.5 ~ VCC + 0.3 |VCC - VIS| < 6.5 V V Digital Select Input Voltage VIN -0.5 to + 6.0 V Output Voltage VOUT -2.5 ~ VCC + 0.3 |VCC - VO| < 6.5 V V Continuous DC Current from COM to NC/NO Ian1 ±300 mA Ian1-pk1 ±500 mA Idmp ±100 mA Peak Current from COM to NC/NO, 10 duty cycle (Note 1) Continuous DC Current into COM/NO/NC with respect to VCC or GND Stresses beyond those listed under “Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Note 1. Defined as 10% ON, 90% OFF duty cycle. Functional Description This integrated circuit can be damaged by ESD if you don't pay attention to ESD protection. Linearin recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. Linearin reserves the right to make any change in circuit design, specification or other related things if necessary without notice at any time. Please contact Linearin's sales office to get the latest data sheets. CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. Linearin and designs are registered trademarks of Linearin Technology Corporation. © Copyright Linearin Technology Corporation. All Rights Reserved. All other trademarks mentioned are the property of their respective owners. FN1620-25.1 — Data Sheet 0.4 Ω, Negative Signal Handing, Dual SPDT Analog Switch LTC5228 P-4 Output Capacitor Symbol Parameter Test Conditions VCC ±10% (V) TA = 25℃ 0.4VCC Min Typ Unit Max VIH High-Level Input Voltage, Select Inputs 1.65 ~ 5.5 VIL Low-Level Input Voltage, Select Inputs 1.65 ~ 5.5 0.5 V IIN Maximum Input Leakage Current, Select Inputs VIN = VCC or GND 5 ±0.3 μA Ioff Power Off Leakage Current VIN = 4.3 V 0 ±0.5 μA ICO Maximum Quiescent Supply Current (Note 2) Select, VIS = VCC or GND 3.6 1.0 μA IN1 = 2.6 V, IN2 = 0 V or IN2 = 2.6 V, IN1 = 0 V ICCT Increase in ICC per input V 1.5 μA 4.5 μA 4.3 IN1 = 1.8 V, IN2 = 0 V or IN2 = 1.8 V, IN1 = 0 V COM ON Leakage Current (Note 3) ICOM (ON) Ron VIN = VIL or VIH, VNO = 0.3 V OR 4.7 V VNC Floating VNO = 0.3 V OR 4.7 V VNO Floating VCOM = 0.3 V OR 4.7 V On-Resistance (Note 2) (Note 3) 5.0 -20 20 VIS = 0.7 V, 3.6 V, 4.3 V IIN = 100 mA 4.3 0.3 VIS = 0.7 V, 2.3 V, 3.0 V IIN = 100 mA 3.0 0.4 nA Ω Rflat On-Resistance Flatness (Note 2) (Note 3) (Note 5) ICOM = 100 mA VIS = GND to Vcc 5.0 △Ron On-Resistance Match Between Channels (Note 2) (Note 3) (Note 4) ICOM = 100 mA, VIS = 1.5 V 5.0 CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. Linearin and designs are registered trademarks of Linearin Technology Corporation. © Copyright Linearin Technology Corporation. All Rights Reserved. All other trademarks mentioned are the property of their respective owners. 0.8 0.3 0.25 Q Q FN1620-25.1 — Data Sheet 0.4 Ω, Negative Signal Handing, Dual SPDT Analog Switch LTC5228 P-5 Electrical Characteristics Symbol Parameter Test Conditions tON Turn-On Time (Figure 1) VIS = 1.5 V tOFF Turn-Off Time (Figure 1) VIS = 1.5 V tBBM Break-Before-MakeTime (Note6)( Figure 2) CL= 35 pF RIS = 50 Ω VIS = 1.5 V BW On-Channel, -3 dB Bandwidth Frequency Response (Figure 4) VCC ±10% (V) TA = 25C Min Typ Max 2.5 ~ 3.3 35 45 3.3 ~ 5.5 25 30 2.5 ~ 3.3 17 20 3.6 ~ 5.5 15 20 2.5 ~ 3.3 7 9 3.6 ~ 5.5 4 6 Unit ns ns ns 55 MHz -70 dB 25 pC 3.6 0.06 % RIS = 50 Ω Off-Channel Isolation (Figure 5) OISO Q FIS = 100 kHz, VIN = GND to VCC, CL = 5 pF, RL = 50 Ω, VIS = IVRMS Charge Injection Select Input to Common I/O (Figure 3) VIN = 0 or VCC, RIS = 0 Ω, CL = 100 pF, RL = 1 mQ, Q = CL x ∆VOUT Total Harmonic Distortion THD +Noise THD FIS = 20 Hz to 20 kHz, RL = 600Ω, CL = 50 pF, VIS = 2 VRMS Channel-to-Channel Crosstalk (Figure 6) XTALK FIS = 100 KHZ, VIN = GND TO VCC, RL = 50 Q, CL = 5 PF, VIS = 1 VRMS 3.6 ~ 5.0 -72 dB CIN Control Pin Input Capacitance 3.6 3.5 pF CCN/CNO NC/NO Port Capacitance 3.6 50 pF CCOM COM Port Capacitance When Switch is Enabled 3.6 120 pF Note: 2. Guaranteed by design. 3. Guaranteed by design. Resistance measurements do not include test circuit or package resistance. 4. ∆RON = RON (MAX) - RON (MIN) between NC1 and NC2 or between NO1 and NO2. 5. Flatness is defined as the difference between the maximum and minimum value of on-resistance as measured over the specified analog signal ranges. 6. Guaranteed by design in -40°C. CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. Linearin and designs are registered trademarks of Linearin Technology Corporation. © Copyright Linearin Technology Corporation. All Rights Reserved. All other trademarks mentioned are the property of their respective owners. FN1620-25.1 — Data Sheet 0.4 Ω, Negative Signal Handing, Dual SPDT Analog Switch LTC5228 P-6 TEST CIRCUITS CIRCUITS DUT VCC 0.1μF Output VOUT Open 50Ω 35pF Input DUT VCC 0.1μF Output VOUT Open 50Ω 35pF Input Figure 1. tON/tOFF DUT VCC Output 0.1μF VOUT 50Ω 35pF Swith Select Pin Figure 2. tBBM DUT Open Output CL VIN Figure3: Charge Injection CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. Linearin and designs are registered trademarks of Linearin Technology Corporation. © Copyright Linearin Technology Corporation. All Rights Reserved. All other trademarks mentioned are the property of their respective owners. FN1620-25.1 — Data Sheet 0.4 Ω, Negative Signal Handing, Dual SPDT Analog Switch P-7 LTC5228 TEST CIRCUITS (Cont.) Network Analyzer 50Ω VIN VS VOUT 50Ω Figure4: Bandwidth Network Analyzer 50Ω 50Ω VIN VS VOUT 50Ω Off -lsolation = 20 Log (VOUT/ VIN) Figure5: Channel Off Isolation Network Analyzer NC 50Ω VIN VS 50Ω VOUT 50Ω CROSSTALK = 20 Log (V OUT/ VIN ) Figure6: Non-Adjacent Channel-to-Channel Crosstalk CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. Linearin and designs are registered trademarks of Linearin Technology Corporation. © Copyright Linearin Technology Corporation. All Rights Reserved. All other trademarks mentioned are the property of their respective owners. FN1620-25.1 — Data Sheet 0.4 Ω, Negative Signal Handing, Dual SPDT Analog Switch LTC5228 P-8 PACKAGE OUTLINE QFN1.8×1.4-10L PIN 1 DOT BY MARKING b D L1 PIN 1 IDENTIFICATION CHAMFER L E e TOP VIEW BOTTOM VIEW A A1 A3 SIDE VIEW Dimensions In Millimeters (mm) Symbol Min. Nom. Max. A 0.500 0.550 0.600 A1 0.000 A3 0.050 0.15 REF D 1.350 1.400 1.450 E 1.750 1.800 1.850 b 0.150 0.200 0.250 L 0.300 0.400 0.500 L1 0.400 0.500 0.600 e 0.40 BSC CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. Linearin and designs are registered trademarks of Linearin Technology Corporation. © Copyright Linearin Technology Corporation. All Rights Reserved. All other trademarks mentioned are the property of their respective owners. FN1620-25.1 — Data Sheet 0.4 Ω, Negative Signal Handing, Dual SPDT Analog Switch LTC5228 P-9 PACKAGE OUTLINE MSOP-10L θ H C2 B1 B C3 C4 B2 A1 A2 A3 R A θ2 C1 θ3 R1 C θ Symbol A A1 A2 A3 B B1 B2 C C1 C2 Dimensions In Millimeters (mm) Min. 2.90 0.18 Max. 3.10 0.25 0.50 TYP 0.40 TYP 2.90 4.70 0.45 0.75 - 3.10 5.10 0.75 0.95 1.100 Symbol C3 C4 H θ θ1 θ2 θ3 R R1 0.328 TYP CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. Linearin and designs are registered trademarks of Linearin Technology Corporation. © Copyright Linearin Technology Corporation. All Rights Reserved. All other trademarks mentioned are the property of their respective owners. Dimensions In Millimeters (mm) Min. Max. 0.152 0.15 0.00 0.23 0.09 15°TYP4 12°TYP4 14°TYP 0°～6° 0.15TYP 0.15TYP FN1620-25.1 — Data Sheet 0.4 Ω, Negative Signal Handing, Dual SPDT Analog Switch
