THGBMJG6C1LBAIL

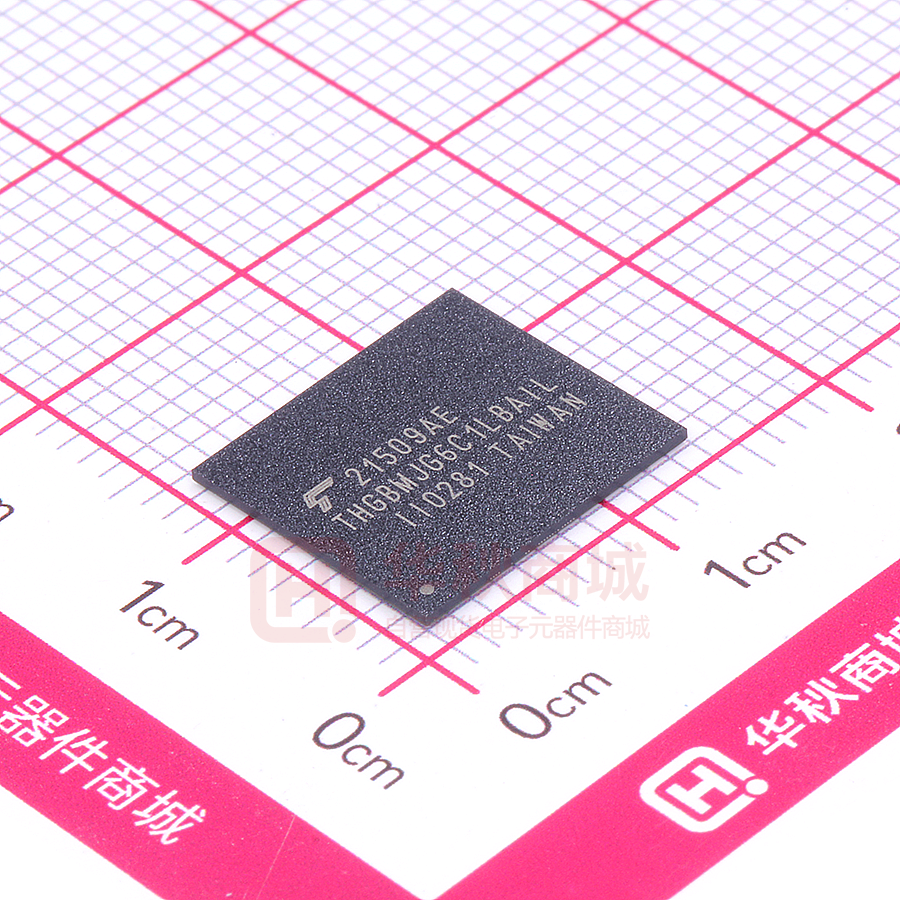

THGBMJG6C1LBAIL e-MMC Module 8GB THGBMJG6C1LBAIL INTRODUCTION THGBMJG6C1LBAIL is 8GB density of e-MMC Module product housed in 153 ball BGA package. This unit is utilized advanced NAND flash device(s) and controller chip assembled as Multi Chip Module. THGBMJG6C1LBAIL has an industry standard MMC protocol for easy use. FEATURES THGBMJG6C1LBAIL Interface THGBMJG6C1LBAIL has the JEDEC / MMCA Version 5.1 interface with 1-I/O, 4-I/O and 8-I/O mode. Pin Connection P-WFBGA153-1113-0.50 (11.5mm x 13mm, H0.8mm(max.) package) 14 NC NC NC NC NC NC NC NC NC NC NC NC NC NC 13 NC NC NC NC NC NC NC NC NC NC NC NC NC NC 12 NC NC NC NC NC NC NC NC NC NC NC NC NC NC 11 NC NC NC NC NC NC 10 NC NC NC VSF RFU NC NC RFU 9 NC NC NC VSF VCC NC NC NC 8 NC NC NC RFU VSS NC NC NC RFU NC NC RFU RFU CLK NC V SSQ RST_n CMD V SSQ V CCQ V CCQ V CCQ V SSQ VSF RFU VSS VCC Top View 7 RFU NC NC VSS 6 VSS DAT7 V CCQ VCC 5 DAT2 DAT6 NC RFU 4 DAT1 DAT5 V SSQ NC index 3 DAT0 DAT4 NC NC NC NC RFU NC NC NC NC NC NC V CCQ 2 NC DAT3 VDDi NC NC NC NC NC NC NC NC NC V SSQ NC 1 NC NC NC NC NC NC NC NC NC NC NC NC NC NC A B C D E F G H J K L M N P VCC VSS VSS DS Pin Number Name Pin Number Name Pin Number Name Pin Number Name A3 DAT0 C2 VDDi J5 VSS N4 VCCQ A4 DAT1 C4 VSSQ J10 VCC N5 VSSQ A5 DAT2 C6 VCCQ K5 RST_n P3 VCCQ A6 VSS E6 VCC K8 VSS P4 VSSQ B2 DAT3 E7 VSS K9 VCC P5 VCCQ B3 DAT4 F5 VCC M4 VCCQ P6 VSSQ B4 DAT5 G5 VSS M5 CMD B5 DAT6 H5 DS M6 CLK B6 DAT7 H10 VSS N2 VSSQ NC: No Connect, shall be connected to ground or left floating. RFU: Reserved for Future Use, shall be left floating for future use. VSF: Vendor Specific Function, shall be left floating. © 2019 KIOXIA Corporation 1 October 1st, 2019 THGBMJG6C1LBAIL Part Number Available e-MMC Module Product – Part Number Part Number Density Package Size NAND Flash Type Weight THGBMJG6C1LBAIL 8GB 11.5mm x 13mm x 0.8mm(max.) 1 x 64Gbit 15nm 0.17g(typ.) Temperature Characteristics min. max. Unit Operating temperature -25 85 °C Storage temperature -40 85 °C Note: Avoid locations where e-MMC devices may be exposed to water (wet, rain, dew condensation, etc.). Performance X8 mode / Sequential access (4MByte access size) Part Number Density Interleave Operation NAND Flash Type typ. Performance [MB/s] Frequency / Mode Read Write 1.8V 45 35 3.3V 45 35 1.8V 90 35 3.3V 90 35 HS200 1.8V 180 35 HS400 1.8V 215 35 52MHz / SDR THGBMJG6C1LBAIL 8GB Non Interleave 1 x 64Gbit 15nm VCCQ 52MHz / DDR Power Supply VCC = 2.7V to 3.6V VCCQ = 1.7V to 1.95V / 2.7V to 3.6V Operating Current (RMS) The measurement for max. RMS current is done as average RMS current consumption over a period of 100ms. Part Number Density Interleave Operation NAND Flash Type Frequency / Mode 52MHz / SDR THGBMJG6C1LBAIL © 2019 KIOXIA Corporation 8GB Non Interleave 1 x 64Gbit 15nm 2 52MHz / DDR VCCQ max. Operating Current [mA] ICCQ ICC 95 40 3.3V 110 40 1.8V 120 40 1.8V 3.3V 140 40 HS200 1.8V 175 40 HS400 1.8V 220 40 October 1st, 2019 THGBMJG6C1LBAIL Sleep Mode Current Part Number Density THGBMJG6C1LBAIL Interleave Operation NAND Flash Type 8GB ICCQS [μA] typ. Note 1 max. Note 2 typ. Note 1 max. Note 2 100 510 120 585 Non Interleave 1 x 64Gbit 15nm ICCQS + ICCS [μA] Note 1: The conditions of typical values are 25°C and VCCQ = 3.3V or 1.8V. Note 2: The conditions of maximum values are 85°C and VCCQ = 3.6V or 1.95V. Product Architecture The diagram in Figure 1 illustrates the main functional blocks of the THGBMJG6C1LBAIL. Specification of the CREG and recommended values of the CVCC, and CVCCQ in the Figure 1 are as follows. Parameter Symbol VDDi capacitor value CREG Unit min. typ. max. μF 0.10 ― 2.2 Note 1 Except HS400 μF 1.00 ― 2.2 Note 1 HS400 VCC capacitor value CVCC μF ― 2.2 + 0.1 ― VCCQ capacitor value CVCCQ μF ― 2.2 + 0.1 ― Remark Note 1: KIOXIA recommends that the value should be usually applied as the value of CREG. Package VCC (3.3V) CVCC CREG x11 MMC I/F (1.8V / 3.3V) Figure 1 © 2019 KIOXIA Corporation REGULATOR CORE LOGIC NAND I/O BLOCK VDDi MMC I/O BLOCK CVCCQ NAND Control signal NAND I/O I/O BLOCK VCCQ (1.8V / 3.3V) NAND THGBMJG6C1LBAIL Block Diagram 3 October 1st, 2019 THGBMJG6C1LBAIL PRODUCT SPECIFICATIONS Package Dimensions P-WFBGA153-1113-0.50 (11.5mm x 13mm, H0.8mm(max.) package) © 2019 KIOXIA Corporation 4 Unit: mm October 1st, 2019 THGBMJG6C1LBAIL Density Specifications Density Part Number Interleave Operation User Area Density [Bytes] SEC_COUNT in Extended CSD 8GB THGBMJG6C1LBAIL Non Interleave 7,818,182,656 0xE90000 Note: User area density shall be reduced if enhanced user data area is defined. Register Informations OCR Register OCR bit VDD Voltage Window Value Reserved 000 0000b 1.70 - 1.95V 1b [14:8] 2.0 - 2.6V 000 0000b [23:15] 2.7 - 3.6V 1 1111 1111b [28:24] Reserved 0 0000b [30:29] Access Mode 10b [6:0] [7] (card power up status bit (busy)) Note 1 [31] Note 1: This bit is set to LOW if the Device has not finished the power up routine. CID Register Name Field Width Value [127:120] Manufacturer ID MID 8 0001 0001b [119:114] Reserved ― 6 0b [113:112] Device/BGA CBX 2 01b [111:104] OEM/Application ID OID 8 0b [103:56] Product name PNM 48 0x30 30 38 47 42 30 (008GB0) [55:48] Product revision PRV 8 [47:16] Product serial PSN 32 Serial number [15:8] Manufacturing date MDT 8 Refer to JEDEC Specification [7:1] CRC7 checksum CRC 7 CRC7 Not used, always ‘1’ ― 1 1b CID-slice [0] © 2019 KIOXIA Corporation 5 0x00 October 1st, 2019 THGBMJG6C1LBAIL CSD Register CSD-slice Name Field Width Cell Type Value [127:126] CSD structure CSD_STRUCTURE 2 R 0x3 [125:122] System specification version SPEC_VERS 4 R 0x4 [121:120] Reserved ― 2 R 0x0 [119:112] Data read access-time 1 TAAC 8 R 0x27 [111:104] Data read access-time 2 in CLK cycles (NSAC x 100) NSAC 8 R 0x00 [103:96] Max. bus clock frequency TRAN_SPEED 8 R 0x32 [95:84] Device command classes CCC 12 R 0x8F5 [83:80] Max. read data block length READ_BL_LEN 4 R 0x9 [79:79] Partial blocks for read allowed READ_BL_PARTIAL 1 R 0x0 [78:78] Write block misalignment WRITE_BLK_MISALIGN 1 R 0x0 [77:77] Read block misalignment READ_BLK_MISALIGN 1 R 0x0 [76:76] DSR implemented DSR_IMP 1 R 0x0 [75:74] Reserved ― 2 R 0x0 [73:62] Device size C_SIZE 12 R 0xFFF [61:59] Max. read current at VDD min. VDD_R_CURR_MIN 3 R 0x7 [58:56] Max. read current at VDD max. VDD_R_CURR_MAX 3 R 0x7 [55:53] Max. write current at VDD min. VDD_W_CURR_MIN 3 R 0x7 [52:50] Max. write current at VDD max. VDD_W_CURR_MAX 3 R 0x7 [49:47] Device size multiplier C_SIZE_MULT 3 R 0x7 [46:42] Erase group size ERASE_GRP_SIZE 5 R 0x1F [41:37] Erase group size multiplier ERASE_GRP_MULT 5 R 0x1F [36:32] Write protect group size WP_GRP_SIZE 5 R 0x07 [31:31] Write protect group enable WP_GRP_ENABLE 1 R 0x1 [30:29] Manufacturer default ECC DEFAULT_ECC 2 R 0x0 [28:26] Write speed factor R2W_FACTOR 3 R 0x1 [25:22] Max. write data block length WRITE_BL_LEN 4 R 0x9 [21:21] Partial blocks for write allowed WRITE_BL_PARTIAL 1 R 0x0 [20:17] Reserved ― 4 R 0x0 [16:16] Content protection application CONTENT_PROT_APP 1 R 0x0 [15:15] File format group FILE_FORMAT_GRP 1 R/W 0x0 [14:14] Copy flag (OTP) COPY 1 R/W 0x0 [13:13] Permanent write protection PERM_WRITE_PROTECT 1 R/W 0x0 [12:12] Temporary write protection TMP_WRITE_PROTECT 1 R/W/E 0x0 [11:10] File format FILE_FORMAT 2 R/W 0x0 [9:8] ECC code ECC 2 R/W/E 0x0 [7:1] CRC CRC 7 R/W/E CRC [0] Not used, always ‘1’ ― 1 ― 0x1 © 2019 KIOXIA Corporation 6 October 1st, 2019 THGBMJG6C1LBAIL Extended CSD Register CSD-slice Name Field Size (Bytes) Cell Type Value All ‘0’ [511:506] Reserved ― 6 ― [505] Extended Security Commands Error EXT_SECURITY_ERR 1 R 0x00 [504] Supported Command Sets S_CMD_SET 1 R 0x01 [503] HPI features HPI_FEATURES 1 R 0x01 [502] Background operations support BKOPS_SUPPORT 1 R 0x01 [501] Max packed read commands MAX_PACKED_READS 1 R 0x3F [500] Max packed write commands MAX_PACKED_WRITES 1 R 0x3F [499] Data Tag Support DATA_TAG_SUPPORT 1 R 0x01 [498] Tag Unit Size TAG_UNIT_SIZE 1 R 0x03 [497] Tag Resource Size TAG_RES_SIZE 1 R 0x00 [496] Context management capabilities CONTEXT_CAPABILITIES 1 R 0x7F [495] Large Unit size LARGE_UNIT_SIZE_M1 1 R 0x00 [494] Extended partitions attribute support EXT_SUPPORT 1 R 0x03 [493] Supported modes SUPPORTED_MODES 1 R 0x01 [492] FFU features FFU_FEATURES 1 R 0x00 [491] Operation codes timeout OPERATION_CODES_TIMEOUT 1 R 0x00 [490:487] FFU Argument FFU_ARG 4 R 0xFFFFFFFF [486] Barrier support BARRIER_SUPPORT [485:309] Reserved ― [308] CMD Queuing Support [307] 1 R 0x01 177 ― All ‘0’ CMDQ_SUPPORT 1 R 0x01 CMD Queuing Depth CMDQ_DEPTH 1 R 0x1F [306] Reserved ― 1 ― 0x00 [305:302] Number of FW sectors correctly programmed NUMBER_OF_FW_SECTORS _CORRECTLY_PROGRAMMED 4 R All ‘0’ [301:270] Vendor proprietary health report VENDOR_PROPRIETARY _HEALTH_REPORT 32 R All ‘0’ [269] Device life time estimation type B DEVICE_LIFE_TIME_EST_TYP_B 1 R 0x00 [268] Device life time estimation type A DEVICE_LIFE_TIME_EST_TYP_A 1 R 0x01 [267] Pre EOL information PRE_EOL_INFO 1 R 0x01 [266] Optimal read size OPTIMAL_READ_SIZE 1 R 0x08 [265] Optimal write size OPTIMAL_WRITE_SIZE 1 R 0x08 [264] Optimal trim unit size OPTIMAL_TRIM_UNIT_SIZE 1 R 0x01 [263:262] Device version DEVICE_VERSION 2 R 0x00 [261:254] Firmware version FIRMWARE_VERSION 8 R 0x03 [253] Power class for 200MHz, DDR at VCC = 3.6V PWR_CL_DDR_200_360 1 R 0xCC [252:249] Cache size CACHE_SIZE 4 R 0x00001000 [248] Generic CMD6 timeout GENERIC_CMD6_TIME 1 R 0x0A [247] Power off notification(long) timeout POWER_OFF_LONG_TIME 1 R 0x32 [246] Background operations status BKOPS_STATUS 1 R 0x00 [245:242] Number of correctly programmed sectors CORRECTLY _PRG_SECTORS_NUM 4 R 0x00000000 [241] 1st initialization time after partitioning INI_TIMEOUT_AP 1 R 0x1E © 2019 KIOXIA Corporation 7 October 1st, 2019 THGBMJG6C1LBAIL CSD-slice Name Field Size (Bytes) Cell Type Value [240] Cache Flushing Policy CACHE_FLUSH_POLICY 1 R 0x01 [239] Power class for 52MHz, DDR at 3.6V PWR_CL_DDR_52_360 1 R 0x55 [238] Power class for 52MHz, DDR at 1.95V PWR_CL_DDR_52_195 1 R 0xAA [237] Power class for 200MHz, at VCCQ = 1.95V, VCC = 3.6V PWR_CL_200_195 1 R 0xBB [236] Power class for 200MHz, at VCCQ = 1.3V, VCC = 3.6V PWR_CL_200_130 1 R 0xBB [235] Minimum Write Performance for 8bit at 52MHz in DDR mode MIN_PERF_DDR_W_8_52 1 R 0x00 MIN_PERF_DDR_R_8_52 1 R 0x64 [234] Minimum Read Performance for 8bit at 52MHz in DDR mode [233] Reserved ― 1 ― 0x00 [232] TRIM Multiplier TRIM_MULT 1 R 0x01 [231] Secure Feature support SEC_FEATURE_SUPPORT 1 R 0x55 [230] Secure Erase Multiplier SEC_ERASE_MULT 1 R 0xFB [229] Secure TRIM Multiplier SEC_TRIM_MULT 1 R 0xFF [228] Boot information BOOT_INFO 1 R 0x07 [227] Reserved ― 1 R 0x00 [226] Boot partition size BOOT_SIZE_MULTI 1 R 0x20 [225] Access size ACC_SIZE 1 R 0x08 [224] High-capacity erase unit size HC_ERASE_GRP_SIZE 1 R 0x08 [223] High-capacity erase timeout ERASE_TIMEOUT_MULT 1 R 0x07 [222] Reliable write sector count REL_WR_SEC_C 1 R 0x01 [221] High-capacity write protect group size HC_WP_GRP_SIZE 1 R 0x01 [220] Sleep current (VCC) S_C_VCC 1 R 0x07 [219] Sleep current (VCCQ) S_C_VCCQ 1 R 0x09 [218] Production state awareness timeout PRODUCTION_STATE _AWARENESS_TIMEOUT 1 R 0x0A [217] Sleep / awake timeout S_A_TIMEOUT 1 R 0x14 [216] Sleep Notification Timeout SLEEP_NOTIFICATION_TIME 1 R 0x10 [215:212] Sector Count SEC_COUNT 4 R 0x00E90000 [211] Sector Write Protection Information SECURE_WP_INFO 1 R 0x01 [210] Minimum Write Performance for 8bit at 52MHz MIN_PERF_W_8_52 1 R 0x00 [209] Minimum Read Performance 8bit at 52MHz MIN_PERF_R_8_52 1 R 0x78 [208] Minimum Write Performance for 8bit at 26MHz, for 4bit at 52MHz MIN_PERF_W_8_26_4_52 1 R 0x00 [207] Minimum Read Performance for 8 bit at 26MHz, for 4bit at 52MHz MIN_PERF_R_8_26_4_52 1 R 0x46 [206] Minimum Write Performance for 4bit at 26MHz MIN_PERF_W_4_26 1 R 0x00 [205] Minimum Read Performance for 4bit at 26MHz MIN_PERF_R_4_26 1 R 0x1E © 2019 KIOXIA Corporation 8 October 1st, 2019 THGBMJG6C1LBAIL CSD-slice Name Field Size (Bytes) Cell Type Value [204] Reserved ― 1 ― 0x00 [203] Power class for 26MHz at 3.6V PWR_CL_26_360 1 R 0x44 [202] Power class for 52MHz at 3.6V PWR_CL_52_360 1 R 0x44 [201] Power class for 26MHz at 1.95V PWR_CL_26_195 1 R 0xAA [200] Power class for 52MHz at 1.95V PWR_CL_52_195 1 R 0xAA [199] Partition switching timing PARTITION_SWITCH_TIME 1 R 0x0A [198] Out-of-interrupt busy timing OUT_OF_INTERRUPT_TIME 1 R 0x0A [197] I/O Driver Strength DRIVER_STRENGTH 1 R 0x1F [196] Device Type DEVICE_TYPE 1 R 0x57 [195] Reserved ― 1 ― 0x00 [194] CSD structure version CSD_STRUCTURE 1 R 0x02 [193] Reserved ― 1 ― 0x00 [192] Extended CSD revision EXT_CSD_REV 1 R 0x08 [191] Command Set CMD_SET 1 R/W/E_P 0x00 [190] Reserved ― 1 ― 0x00 [189] Command set revision CMD_SET_REV 1 R 0x00 [188] Reserved ― 1 ― 0x00 [187] Power class Note 1 POWER_CLASS 1 R/W/E_P 0x00 [186] Reserved ― 1 ― 0x00 [185] High-speed interface timing HS_TIMING 1 R/W/E_P 0x00 [184] Strobe Support STROBE_SUPPORT 1 R 0x01 [183] Bus width mode BUS_WIDTH 1 W/E_P 0x00 [182] Reserved ― 1 ― 0x00 [181] Erased memory content ERASED_MEM_CONT 1 R 0x00 [180] Reserved ― 1 ― 0x00 [179] Partition configuration PARTITION_CONFIG 1 R/W/E & R/W/E_P 0x00 [178] Boot config protection BOOT_CONFIG_PROT 1 R/W & R/W/C_P 0x00 [177] Boot bus Conditions BOOT_BUS_CONDITIONS 1 R/W/E 0x00 [176] Reserved ― 1 ― 0x00 [175] High-density erase group definition ERASE_GROUP_DEF 1 R/W/E_P 0x00 [174] Boot write protection status registers BOOT_WP_STATUS 1 R 0x00 [173] Boot area write protection register BOOT_WP 1 R/W & R/W/C_P 0x00 [172] Reserved ― 1 ― 0x00 0x00 [171] User area write protection register USER_WP 1 R/W, R/W/C_P & R/W/E_P [170] Reserved ― 1 ― 0x00 [169] FW configuration FW_CONFIG 1 R/W 0x00 © 2019 KIOXIA Corporation 9 October 1st, 2019 THGBMJG6C1LBAIL Name CSD-slice Field Size (Bytes) Cell Type Value [168] RPMB Size RPMB_SIZE_MULT 1 R 0x20 [167] Write reliability setting register WR_REL_SET 1 R/W 0x1F [166] Write reliability parameter register WR_REL_PARAM 1 R 0x15 [165] Start Sanitize operation SANITIZE_START 1 W/E_P 0x00 [164] Manually start background operations BKOPS_START 1 W/E_P 0x00 [163] Enable background operations handshake BKOPS_EN 1 R/W & R/W/E 0x00 [162] H/W reset function RST_n_FUNCTION 1 R/W 0x00 [161] HPI management HPI_MGMT 1 R/W/E_P 0x00 [160] Partitioning Support PARTITIONING_SUPPORT 1 R 0x07 [159:157] Max. Enhanced Area Size Note 2 MAX_ENH_SIZE_MULT 3 R 0x0003A4 [156] Partitions attribute PARTITIONS_ATTRIBUTE 1 R/W 0x00 [155] Partitioning Setting PARTITION_SETTING _COMPLETED 1 R/W 0x00 [154:143] General Purpose Partition Size Note 3 GP_SIZE_MULT 12 R/W 0x00 [142:140] Enhanced User Data Area Size Note 4 ENH_SIZE_MULT 3 R/W 0x00 [139:136] Enhanced User Data Start Address ENH_START_ADDR 4 R/W 0x00 [135] Reserved ― 1 ― 0x00 [134] Bad Block Management mode SEC_BAD_BLK_MGMNT 1 R/W 0x00 [133] Production state awareness Note 6 PRODUCTION_STATE _AWARENESS 1 R/W/E 0x00 [132] Package Case Temperature is controlled Note 1 TCASE_SUPPORT 1 W/E_P 0x00 PERIODIC_WAKEUP 1 R/W/E 0x00 1 R 0x01 Note 1 [131] Periodic Wake-up [130] Program CID / CSD in DDR mode support PROGRAM_CID_CSD_DDR _SUPPORT [129:128] Reserved ― 2 ― All ‘0’ [127:64] Vendor Specific Fields VENDOR_SPECIFIC_FIELD 64 ― ― [63] Native sector size NATIVE_SECTOR_SIZE 1 R 0x01 [62] Sector size emulation USE_NATIVE_SECTOR 1 R/W 0x00 [61] Sector size DATA_SECTOR_SIZE 1 R 0x00 [60] 1st initialization after disabling sector size emulation INI_TIMEOUT_EMU 1 R 0x0A [59] Class 6 commands control CLASS_6_CTRL 1 R/W/E_P 0x00 [58] Number of addressed group to be Released DYNCAP_NEEDED 1 R 0x00 [57:56] Exception events control EXCEPTION_EVENTS_CTRL 2 R/W/E_P 0x00 [55:54] Exception events status EXCEPTION_EVENTS_STATUS 2 R All ‘0’ [53:52] Extended partitions attribute Note 1 EXT_PARTITIONS_ATTRIBUTE 2 R/W 0x00 [51:37] Context configuration CONTEXT_CONF 15 R/W/E_P 0x00 [36] Packed command status PACKED_COMMAND_STATUS 1 R 0x00 [35] Packed command failure index PACKED_FAILURE_INDEX 1 R 0x00 POWER_OFF_NOTIFICATION 1 R/W/E_P 0x00 CACHE_CTRL 1 R/W/E_P 0x00 Note 5 [34] Power Off Notification [33] Control to turn the Cache ON/OFF © 2019 KIOXIA Corporation 10 October 1st, 2019 THGBMJG6C1LBAIL Name CSD-slice Field Size (Bytes) Cell Type Value [32] Flushing of the cache FLUSH_CACHE 1 W/E_P 0x00 [31] Control to turn the Barrier ON/OFF BARRIER_CTRL 1 R/W 0x00 [30] Mode config MODE_CONFIG 1 R/W/E_P 0x00 [29] Mode operation codes MODE_OPERATION_CODES 1 W/E_P 0x00 (Not Support. Return switch error) [28:27] Reserved ― 2 ― All ‘0’ [26] FFU status FFU_STATUS 1 R 0x00 [25:22] Pre loading data size Note 6 PRE_LOADING_DATA_SIZE 4 R/W/E_P 0x00748000 [21:18] Max. pre loading data size MAX_PRE_LOADING _DATA_SIZE 4 R 0x00748000 [17] Product state awareness enablement Note 6 PRODUCT_STATE _AWARENESS_ENABLEMENT 1 R/W/E & R 0x03 [16] Secure Removal Type SECURE_REMOVAL_TYPE 1 R/W & R 0x39 [15] Command Queue Mode Enable CMDQ_MODE_EN 1 R/W/E_P 0x00 [14:0] Reserved ― 15 ― All ‘0’ Note 1: Although these fields can be re-written by host, e-MMC does not support. Note 2: Max. Enhanced Area Size (MAX_ENH_SIZE_MULT [159:157]) has to be calculated by following formula. Max. Enhanced Area = MAX_ENH_SIZE_MULT x HC_WP_GRP_SIZE x HC_ERASE_GRP_SIZE x 512kBytes 4 ∑ Enhanced general partition size(i) + Enhanced user data area ≤ Max enhanced area i=1 Note 3: General Purpose Partition Size (GP_SIZE_MULT_GP0 - GP_SIZE_MULT_GP3 [154:143]) has to be calculated by following formula. General_Purpose_Partition_X Size = (GP_SIZE_MULT_X_2 x 216 + GP_SIZE_MULT_X_1 x 28 + GP_SIZE_MULT_X_0 x 20) x HC_WP_GRP_SIZE x HC_ERASE_GRP_SIZE x 512kBytes Note 4: Enhanced User Data Area Size (ENH_SIZE_MULT [142:140]) has to be calculated by following formula. Enhanced User Data Area x Size = (ENH_SIZE_MULT_2 x 216 + ENH_SIZE_MULT_1 x 28 + ENH_SIZE_MULT_0 x 20) x HC_WP_GRP_SIZE x HC_ERASE_GRP_SIZE x 512kBytes Note 5: KIOXIA recommends to issue the Power Off Notification before turning off the device, especially when cache is on or AUTO_EN (BKOPS_EN [163]:bit1) is set to ‘1b’. Note 6: Pre loading data size = PRE_LOADING_DATA_SIZE x Sector Size Pre loading data size should be multiple of 4KB and the pre loading data should be written by multiple of 4KB chunk size, aligned with 4KB address. This is because the valid data size will be treated as 4KB when host writes data less than 4KB. If the host continues to write data in Normal state (after it wrote PRE_LOADING_DATA_SIZE amount of data) and before soldering, the pre loading data might be corrupted after soldering. If a power cycle is occurred during the data transfer, the amount of data written to device is not clear. Therefore in this case, host should erase the entire pre loaded data and set again PRE_LOADING_DATA_SIZE [25:22], PRODUCTION_STATE_AWARENESS [133], and PRODUCT_STATE_AWARENESS_ENABLEMENT [17]. © 2019 KIOXIA Corporation 11 October 1st, 2019 THGBMJG6C1LBAIL ELECTRICAL CHARACTERISTICS DC Characteristics Absolute Maximum Ratings The absolute maximum ratings of a semiconductor device are a set of specified parameter values, which must not be exceeded during operation, even for an instant. If any of these rating would be exceeded during operation, the device electrical characteristics may be irreparably altered and the reliability and lifetime of the device can no longer be guaranteed. Moreover, these operations with exceeded ratings may cause break down, damage, and/or degradation to any other equipment. Applications using the device should be designed such that each maximum rating will never be exceeded in any operating conditions. Before using, creating, and/or producing designs, refer to and comply with the precautions and conditions set forth in this document. Parameter Symbol Test Conditions min. max. Unit Supply voltage 1 VCC ― -0.5 4.1 V Supply voltage 2 VCCQ ― -0.5 4.1 V VIO ― -0.5 VCCQ + 0.5(≤ 4.1) V Voltage Input General Parameter Symbol Test Conditions min. max. Unit ― ― -0.5 VCCQ + 0.5 V Input Leakage Current (before initialization sequence Note 1 and/or the internal pull up resistors connected) ― ― -100 100 μA Input Leakage Current (after initialization sequence and the internal pull up resistors disconnected) ― ― -2 2 μA Output Leakage Current (before initialization sequence) ― ― -100 100 μA Output Leakage Current (after initialization sequence) ― ― -2 2 μA Peak voltage on all lines All Inputs All Outputs Note 1: Initialization sequence is defined in Power-Up chapter of JEDEC / MMCA Standard. Power Supply Voltage Parameter Symbol Test Conditions Supply voltage 1 VCC ― Supply voltage 2 VCCQ ― min. max. Unit 2.7 3.6 V 1.7 1.95 V 2.7 3.6 V Note 1: Once the power supply VCC or VCCQ falls below the minimum guaranteed voltage (for example, upon sudden power fail), the voltage level of VCC or VCCQ shall be kept less than 0.5V for at least 1ms before it goes beyond 0.5V again. Note 2: The host and device I/O power (VCCQ) shall be provided from same power supply. © 2019 KIOXIA Corporation 12 October 1st, 2019 THGBMJG6C1LBAIL Supply Current Parameter Symbol Interleave Operation min. Mode IROP Non Interleave Operation (RMS) lCC ICCQ lCC 1.8V ― ― 95 15 3.3V ― ― 110 15 1.8V ― ― 120 20 3.3V ― ― 140 20 HS200 1.8V ― ― 175 30 mA HS400 1.8V ― ― 220 40 mA 1.8V ― ― 65 40 3.3V ― ― 65 40 1.8V ― ― 65 40 3.3V ― ― 65 40 HS200 1.8V ― ― 65 40 mA HS400 1.8V ― ― 70 40 mA DDR SDR Write © 2019 KIOXIA Corporation IWOP Non Interleave Unit ICCQ SDR Read max. VCCQ DDR 13 mA mA mA mA October 1st, 2019 THGBMJG6C1LBAIL Internal resistance and Device capacitance Parameter Single device capacitance Internal pull up resistance DAT1 - DAT7 Symbol Test Conditions min. max. Unit CDEVICE ― ― 6 pF RINT ― 10 150 kΩ Bus Signal Levels V VCCQ Input Output VOH high level high level VIH undefined VIL Input Output VOL low level low level VSS t Open-Drain Mode Bus Signal Level Parameter Symbol min. max. Unit Conditions Output HIGH voltage VOH VCCQ - 0.2 ― V Note 1 Output LOW voltage VOL ― 0.3 V IOL = 2mA Note 1: Because VOH depends on external resistance value (including outside the package), this value does not apply as device specification. Host is responsible to choose the external pull-up and open drain resistance value to meet VOH(min.) value. Push-Pull Mode Bus Signal Level (High-Voltage) Parameter Symbol min. max. Unit Conditions Output HIGH voltage VOH 0.75 x VCCQ ― V IOH = -100μA at VCCQ min. Output LOW voltage VOL ― 0.125 x VCCQ V IOL = 100μA at VCCQ min. Input HIGH voltage VIH 0.625 x VCCQ VCCQ + 0.3 V ― Input LOW voltage VIL VSS - 0.3 0.25 x VCCQ V ― Push-Pull Mode Bus Signal Level (Dual-Voltage) Parameter Symbol min. max. Unit Conditions Output HIGH voltage VOH VCCQ - 0.45 ― V IOH = -2mA Output LOW voltage VOL ― 0.45 V IOL = 2mA Input HIGH voltage VIH 0.65 x VCCQ VCCQ + 0.3 V ― Input LOW voltage VIL VSS - 0.3 0.35 x VCCQ V ― © 2019 KIOXIA Corporation 14 October 1st, 2019 THGBMJG6C1LBAIL Driver Types Definition In JEDEC, Driver Type-0 is defined as mandatory for e-MMC HS200 & HS400 Device. While four additional Driver Types (1, 2, 3 and 4) are defined as optional, to allow the support of wider Host loads. The Host may select the most appropriate Driver Type of the Device (if supported) to achieve optimal signal integrity performance. Driver Type-0 is targeted for transmission line, based distributed system with 50Ω nominal line impedance. Therefore, it is defined as 50Ω nominal driver. The nominal line impedance should be kept as 50Ω even if Driver Type would be changed. For HS200, when tested with CL = 15pF Driver Type-0 shall meet all AC characteristics and HS200 Device output timing requirements. The test circuit defined in section 10.5.4.3 of JEDEC / MMCA Standard 5.1 is used for testing of Driver Type-0. For HS400, when tested with the reference load defined in page 27 HS400 reference load figure, Driver Type-0 or Driver Type-1 or Driver Type-4 shall meet all AC characteristics and HS400 Device output timing requirements. Driver Type Nominal Impedance (Driver strength) Approximated driving capability compared to Type-0 0 50Ω (18mA) x1 1 33Ω (27mA) x 1.5 2 66Ω (14mA) x 0.75 3 100Ω (9mA) x 0.5 4 40Ω (23mA) x 1.2 Remark Default Driver Type Recommendation at HS400 under the condition of JEDEC standard reference load Recommendation at HS400 under the condition of JEDEC standard reference load Note: Nominal impedance is defined by I-V characteristics of output driver at 0.9V when VCCQ = 1.8V. * The most suitable setting for user’s operating environment should be selected. At HS400, KIOXIA recommends Driver Type-1 and Type-4. This is because they meet all AC characteristics and Device output timing requirements under the condition of JEDEC standard reference load. © 2019 KIOXIA Corporation 15 October 1st, 2019 THGBMJG6C1LBAIL Bus Timing tPP tWH CLK min.(VIH) tWL 50% VCCQ 50% VCCQ max.(VIL) tIH tTHL tISU tTLH min.(VIH) Invalid Data Input Data max.(VIL) tOSU tODLY tOH min.(VOH) Data Output Invalid Data max.(VOL) Data must always be sampled on the rising edge of the clock. Device Interface Timings (High-speed interface timing) Parameter Symbol min. max. Unit Remark Clock frequency Data Transfer Mode (PP) Note 2 fPP 0 52 Note 3 MHz CL ≤ 30pF Tolerance: + 100kHz Clock frequency Identification Mode (OD) fOD 0 400 kHz Tolerance: + 20kHz Clock high time tWH 6.5 ― ns CL ≤ 30pF Clock low time tWL 6.5 ― ns CL ≤ 30pF tTLH ― 3 ns CL ≤ 30pF tTHL ― 3 ns CL ≤ 30pF Input set-up time tISU 3 ― ns CL ≤ 30pF Input hold time tIH 3 ― ns CL ≤ 30pF tODLY ― 13.7 ns CL ≤ 30pF tOH 2.5 ― ns CL ≤ 30pF tRISE ― 3 ns CL ≤ 30pF tFALL ― 3 ns CL ≤ 30pF Clock CLK Note 1 Clock rise time Note 4 Clock fall time Inputs CMD, DAT (referenced to CLK) Outputs CMD, DAT (referenced to CLK) Output Delay time during Data Transfer Output hold time Signal rise time Note 5 Signal fall time Note 1: CLK timing is measured at 50% of VCCQ. Note 2: This product shall support the full frequency range from 0MHz - 26MHz, or 0MHz - 52MHz. Note 3: Device can operate as high-speed interface timing at 26MHz clock frequency. Note 4: CLK rise and fall times are measured by min.(VIH) and max.(VIL). Note 5: Inputs CMD, DAT rise and fall times area measured by min.(VIH) and max.(VIL), and outputs CMD, DAT rise and fall times are measured by min.(VOH) and max.(VOL). © 2019 KIOXIA Corporation 16 October 1st, 2019 THGBMJG6C1LBAIL Device Interface Timings (Backward-compatible interface timing) Parameter Remark Note 1 Symbol min. max. Unit Clock frequency Data Transfer Mode (PP) Note 3 fPP 0 26 MHz Clock frequency Identification Mode (OD) fOD 0 400 kHz Clock high time tWH 10 ― ns CL ≤ 30pF Clock low time tWL 10 ― ns CL ≤ 30pF Clock rise time Note 4 tTLH ― 10 ns CL ≤ 30pF Clock fall time tTHL ― 10 ns CL ≤ 30pF Input set-up time tISU 3 ― ns CL ≤ 30pF Input hold time tIH 3 ― ns CL ≤ 30pF Output set-up time Note 5 tOSU 11.7 ― ns CL ≤ 30pF Output hold time Note 5 tOH 8.3 ― ns CL ≤ 30pF Clock CLK Note 2 CL ≤ 30pF Inputs CMD, DAT (referenced to CLK) Outputs CMD, DAT (referenced to CLK) Note 1: The e-MMC must always start with the backward-compatible interface timing. The timing mode can be switched to high-speed interface timing by the host sending the SWITCH command (CMD6) with the argument for high-speed interface select. Note 2: CLK timing is measured at 50% of VCCQ. Note 3: For compatibility with e-MMCs that support the v4.2 standard or earlier, host should not use > 26MHz before switching to high-speed interface timing. Note 4: CLK rise and fall times are measured by min.(VIH) and max.(VIL). Note 5: tOSU and tOH are defined as values from clock rising edge. However, the e-MMC device will utilize clock falling edge to output data in backward compatibility mode. Therefore, it is recommended for hosts either to set tWL value as long as possible within the range which will not go over tCK - tOH(min.) in the system or to use slow clock frequency, so that host could have data set up margin for the device. e-MMC device utilize clock falling edge to output data in backward compatibility mode. Host should optimize the timing in order to have data set up margin as follows. tWL CLK tODLY Output tOSU Invalid tOH Data tOSU(min.) = tWL(min.) - tODLY(max. 8ns) Figure 2 © 2019 KIOXIA Corporation Output timing 17 October 1st, 2019 THGBMJG6C1LBAIL Bus Timing for DAT signals for during 2x data rate operation These timings applies to the DAT [7:0] signals only when the device is configured for dual data mode operation. In this dual data mode, the DAT signals operates synchronously of both the rising and the falling edges of CLK. The CMD signal still operates synchronously of the rising edge of CLK and therefore complies with the bus timing specified in High-speed interface timing or Backward-compatible interface timing. tPP min.(VIH) CLK 50% VCCQ 50% VCCQ max.(VIL) tIHddr tISUddr tIHddr tISUddr min.(VIH) DATA Input DATA DATA Invalid max.(VIL) tODLYddr(max.) tODLYddr(max.) tODLYddr(min.) tODLYddr(min.) min.(VOH) Output DATA DATA DATA Invalid max.(VOL) In DDR mode data on DAT [7:0] lines are sampled on both edges of the clock. (Not applicable for CMD line.) High-speed dual data rate interface timings Parameter Symbol min. max. Unit Remark Clock duty cycle ― 45 55 % Includes jitter, phase noise Clock rise time tTLH ― 3 ns CL ≤ 30pF Clock fall time tTHL ― 3 ns CL ≤ 30pF Input set-up time tISUddr 3 ― ns CL ≤ 20pF Input hold time tIHddr 3 ― ns CL ≤ 20pF tODLY ― 13.7 ns CL ≤ 20pF Output hold time tOH 2.5 ― ns CL ≤ 20pF Signal rise time tRISE ― 3 ns CL ≤ 20pF Signal fall time tFALL ― 3 ns CL ≤ 20pF Input CLK Note 1 Input CMD (referenced to CLK-SDR mode) Output CMD (referenced to CLK-SDR mode) Output delay time during data transfer © 2019 KIOXIA Corporation 18 October 1st, 2019 THGBMJG6C1LBAIL Parameter Symbol min. max. Unit Remark Input set-up time tISUddr 2.5 ― ns CL ≤ 20pF Input hold time tIHddr 2.5 ― ns CL ≤ 20pF tODLYddr 1.5 7 ns CL ≤ 20pF Signal rise time (all signals) Note 2 tRISE ― 2 ns CL ≤ 20pF Signal fall time (all signals) tFALL ― 2 ns CL ≤ 20pF Input DAT (referenced to CLK-DDR mode) Output DAT (referenced to CLK-DDR mode) Output delay time during data transfer Note 1: CLK timing is measured at 50% of VCCQ. Note 2: Inputs DAT rise and fall times are measured by min.(VIH) and max.(VIL), and outputs DAT rise and fall times are measured by min.(VOH) and max.(VOL). © 2019 KIOXIA Corporation 19 October 1st, 2019 THGBMJG6C1LBAIL Bus Timing Specification in HS200 mode HS200 Clock Timing Host CLK Timing in HS200 mode shall conform to the timing specified in following figure and Table. CLK input shall satisfy the clock timing over all possible operation and environment conditions. CLK input parameters should be measured while CMD and DAT lines are stable high or low, as close as possible to the Device. The maximum frequency of HS200 is 200MHz. Hosts can use any frequency up to the maximum that HS200 mode allows. tPERIOD VCCQ CLOCK INPUT VIH VT VIL VSS tTHL tTLH Note 1: VIH denote VIH(min.) and VIL denotes VIL(max.). Note 2: VT = 50% of VCCQ indicates clock reference point for timing measurements. Symbol min. max. Unit Remark tPERIOD 5 ― ns 200MHz(max.), between rising edges tTLH, tTHL ― 0.2 x tPERIOD ns tTLH, tTHL < 1ns(max.) at 200MHz, CDEVICE = 6pF, The absolute maximum value of tTLH, tTHL is 10ns regardless of clock frequency Duty Cycle 30 70 % HS200 Device Input Timing tPERIOD VCCQ CLOCK INPUT VT VSS tISU VCCQ tIH VIH CMD.DAT [7 - 0] INPUT VIH VALID WINDOW VIL VIL VSS Note 1: tISU and tIH are measured at VIL(max.) and VIH(min.). Note 2: VIH denote VIH(min.) and VIL denotes VIL(max.). Symbol min. max. Unit tISU 1.40 ― ns CDEVICE ≤ 6pF tIH 0.8 ― ns CDEVICE ≤ 6pF © 2019 KIOXIA Corporation Remark 20 October 1st, 2019 THGBMJG6C1LBAIL HS200 Device Output Timing tPH parameter is defined to allow device output delay to be longer than tPERIOD. After initialization, the tPH may have random phase relation to the clock. The Host is responsible to find the optimal sampling point for the Device outputs, while switching to the HS200 mode. While setting the sampling point of data, a long term drift, which mainly depends on temperature drift, should be considered. The temperature drift is expressed by ΔTPH. Output valid data window (tVW) is available regardless of the drift (ΔTPH) but position of data window varies by the drift. tPERIOD VCCQ CLOCK INPUT VT VSS tVW tPH VCCQ VOH CMD.DAT [7 - 0] OUTPUT VOL VOH VALID WINDOW VOL VSS Note: VOH denotes VOH(min.) and VOL denotes VOL(max.). Remark Note 1 Symbol min. max. Unit tPH 0 2 UI Device output momentary phase from CLK input to CMD or DAT lines output. Does not include a long term temperature drift. ΔTPH -350 (ΔT = -20°C) +1550 (ΔT = 90°C ) ps Delay variation due to temperature change after tuning. Total allowable shift of output valid window (tVW) from last system Tuning procedure. ΔTPH is 2600ps for ΔT from -25°C to 125°C during operation. UI tVW = 2.88ns at 200MHz Using test circuit in following figure including skew among CMD and DAT lines created by the Device. Host path may add Signal Integrity induced noise, skews, etc. Expected tVW at Host input is larger than 0.475UI. tVW 0.575 ― Note 1: Unit Interval (UI) is one bit nominal time. For example, UI = 5ns at 200MHz. Meas. Location Driver CL = 15pF Note 1: CL is total equivalent lumped capacitance for each Driver. Note 2: CL incorporates device die load, device package load and equivalent lumped load external to the device. Note 3: In distributed transmission lines only part of the line capacitance considered as load for the Driver. © 2019 KIOXIA Corporation 21 October 1st, 2019 THGBMJG6C1LBAIL ΔTPH consideration ΔTPH = -350ps ΔTPH = 1550ps Sampling point VALID WINDOW Sampling point after tuning VALID WINDOW VALID WINDOW Sampling point after junction heated to +90°C Sampling point after junction cooled to -20°C Implementation Guide: Host should design to avoid sampling errors that may be caused by the ΔTPH drift. It is recommended to perform tuning procedure while Device wakes up, after sleep. One simple way to overcome the ΔTPH drift is by reduction of operating frequency. © 2019 KIOXIA Corporation 22 October 1st, 2019 THGBMJG6C1LBAIL Bus Timing Specification in HS400 mode HS400 Input Timing The CMD input timing for HS400 mode is the same as CMD input timing for HS200 mode. tPERIOD VCCQ tCKDCD CLOCK INPUT VT tCKMPW tCKMPW tCKDCD VSS VCCQ tIH tISU tISU VIH DAT [7 - 0] INPUT tIH VIH VALID WINDOW VIL VIL VALID WINDOW VSS Note: VT = 50% of VCCQ indicates clock reference point for timing measurements. Parameter Symbol min. max. Unit Remark tPERIOD 5 ― ns SR 1.125 ― V/ns Duty cycle distortion tCKDCD 0.0 0.3 ns Allowable deviation from an ideal 50% duty cycle With respect to VT Includes jitter, phase noise Minimum pulse width tCKMPW 2.2 ― ns With respect to VT Input set-up time tISUddr 0.4 ― ns CDEVICE ≤ 6pF With respect to VIH / VIL Input hold time tIhddr 0.4 ― ns CDEVICE ≤ 6pF With respect to VIH / VIL Slew rate SR 1.125 ― V/ns With respect to VIH / VIL Input CLK Cycle time data transfer mode Slew rate 200MHz(max.), between rising edges With respect to VT With respect to VIH / VIL Input DAT (referenced to CLK) © 2019 KIOXIA Corporation 23 October 1st, 2019 THGBMJG6C1LBAIL HS400 Device Output Timing The Data Strobe is used to read data in HS400 mode. The Data Strobe is toggled only during data read or CRC status response. tPERIOD VCCQ tDSDCD Data Strobe VT tDSMPW tDSMPW tDSDCD VSS tRQ tRQH VCCQ VOH DAT [7 - 0] OUTPUT VOH VALID WINDOW VOL VOL VALID WINDOW VSS Note: VT = 50% of VCCQ indicates clock reference point for timing measurements. Parameter Symbol min. max. Unit tPERIOD 5 ― ns SR 1.125 ― V/ns Remark Data Strobe Cycle time data transfer mode Slew rate 200MHz(max.), between rising edges With respect to VT With respect to VOH / VOL and HS400 reference load Duty cycle distortion tDSDCD 0.0 0.2 ns Allowable deviation from the input CLK duty cycle distortion(tCKDCD) With respect to VT Includes jitter, phase noise Minimum pulse width tDSMPW 2.0 ― ns With respect to VT Output DAT (referenced to Data Strobe) Output skew tRQ ― 0.4 ns With respect to VOH / VOL and HS400 reference load Output hold skew tRQH ― 0.4 ns With respect to VOH / VOL and HS400 reference load Slew rate SR 1.125 ― V/ns With respect to VOH / VOL and HS400 reference load © 2019 KIOXIA Corporation 24 October 1st, 2019 THGBMJG6C1LBAIL HS400 Device Command Output Timing The Data Strobe is used to response of any command in HS400 mode. tPERIOD VCCQ Data Strobe tDSDCD VT tDSMPW tDSMPW tDSDCD VSS tRQ_CMD tRQH_CMD VCCQ VOH CMD OUTPUT VALID WINDOW VOL VSS Note: VT = 50% of VCCQ indicates clock reference point for timing measurements. Parameter Symbol min. max. Unit tPERIOD 5 ― ns SR 1.125 ― V/ns Remark Data Strobe Cycle time data transfer mode Slew rate 200MHz(max.), between rising edges With respect to VT With respect to VOH / VOL and HS400 reference load Duty cycle distortion tDSDCD 0.0 0.2 ns Allowable deviation from the input CLK duty cycle distortion(tCKDCD) With respect to VT Includes jitter, phase noise Minimum pulse width tDSMPW 2.0 ― ns With respect to VT CMD Response (referenced to Data Strobe) Output skew (CMD) tRQ_CMD ― 0.4 ns With respect to VOH / VOL and HS400 reference load Output hold skew (CMD) tRQH_CMD ― 0.4 ns With respect to VOH / VOL and HS400 reference load SR 1.125 ― V/ns With respect to VOH / VOL and HS400 reference load Slew rate © 2019 KIOXIA Corporation 25 October 1st, 2019 THGBMJG6C1LBAIL Driver Device I/O Measurement Point Z0 = 50Ω Td = 350ps CREFERENCE = 4pF Reference Load Figure 3 HS400 reference load HS400 Capacitance The Data Strobe is used to read data in HS400 mode. The Data Strobe is toggled only during data read or CRC status response. Parameter Symbol min. typ. max. Unit Pull-up resistance for CMD RCMD 4.7 ― 100 Note 1 kΩ Pull-up resistance for DAT0 - DAT7 RDAT 10 ― 100 Note 1 kΩ Pull-down resistance for Data Strobe RDS 10 ― 100 Note 1 kΩ Internal pull up resistance DAT1 - DAT7 RINT 10 ― 150 kΩ CDEVICE ― ― 6 pF Single Device capacitance Remark Note 1: Recommended maximum value is 50kΩ for 1.8V interface supply voltages. © 2019 KIOXIA Corporation 26 October 1st, 2019 THGBMJG6C1LBAIL Overshoot / Undershoot Specification VCCQ Unit 1.70V - 1.95V Maximum peak amplitude allowed for overshoot area (Refer to Figure 4 Overshoot / Undershoot definition) max. 0.9 V Maximum peak amplitude allowed for undershoot area (Refer to Figure 4 Overshoot / Undershoot definition) max. 0.9 V Maximum area above VCCQ (Refer to Figure 4 Overshoot / Undershoot definition) max. 1.5 V-ns Maximum area below VSSQ (Refer to Figure 4 Overshoot / Undershoot definition) max. 1.5 V-ns Maximum Amplitude Volts (V) Overshoot Area VCCQ VSSQ Maximum Amplitude Time (ns) Figure 4 Undershoot Area Overshoot / Undershoot definition H/W Reset Operation CLK Note 1 RST_n tRSTW tRSTH tRSCA Host can issue boot initiation or CMD1 Device starts a reset sequence at the RST_n rising edge Do not care Note 1: Device will detect the rising edge of RST_n signal to trigger internal reset sequence. H/W Reset Timings Symbol tRSTW Parameter RST_n pulse width tRSCA RST_n to Command time tRSTH RST_n high period (interval time) min. max. Unit 1 ― μs 200 Note 1 1 ― μs ― μs Note 1: 74 cycles of clock signal required before issuing CMD1 or CMD0 with argument 0xFFFFFFFA. Note 2: During the device internal initialization sequence right after power on, device may not be able to detect RST_n signal,because the device may not complete loading RST_n_ENABLE bits of the extended CSD register into the controller yet. © 2019 KIOXIA Corporation 27 October 1st, 2019 THGBMJG6C1LBAIL Power-up sequence Supply voltage VCC max. VCC min. VCCQ max. VCCQ min. 0.5V time VCCQ Power up time tPRUL VCC Power up time tPRUH Figure 5 VCCQ Power up time tPRUL Power up sequence Power-up parameter Parameter Symbol min. max. Supply power-up for 3.3V tPRUH 5μs 35ms Supply power-up for 1.8V tPRUL 5μs 25ms © 2019 KIOXIA Corporation 28 Remark October 1st, 2019 THGBMJG6C1LBAIL FUNCTIONAL RESTRICTIONS - Pre loading data size is limited to MAX_PRE_LOADING_DATA_SIZE [21-18] regardless of using Production State Awareness function. - MAX_PRE_LOADING_DATA_SIZE [21-18] value will change when host sets Enhanced User area Partition. RELIABILITY GUIDANCE This reliability guidance is intended to notify some guidance related to using raw NAND flash. Although random bit errors may occur during use, it does not necessarily mean that a block is bad. Generally, a block should be marked as bad when a program status failure or erase status failure is detected. The other failure modes may be recovered by a block erase. ECC treatment for read data is mandatory due to the following Data Retention and Read Disturb failures. -Write / Erase Endurance Write / Erase endurance failures may occur in a cell, page, or block, and are detected by doing a status read after either an auto program or auto block erase operation. The cumulative bad block count will increase along with the number of write / erase cycles. -Data Retention The data in memory may change after a certain amount of storage time. This is due to charge loss or charge gain. After block erasure and reprogramming, the block may become usable again. Also write / erase endurance deteriorates data retention capability. The figure below shows a generic trend of relationship between write / erase endurance and data retention. Data Retention Write / Erase Endurance -Read Disturb A read operation may disturb the data in memory. The data may change due to charge gain. Usually, bit errors occur on other pages in the block, not the page being read. After a large number of read cycles (between block erases), a tiny charge may build up and can cause a cell to be soft programmed to another state. After block erasure and reprogramming, the block may become usable again. Considering the above failure modes, KIOXIA recommends following usage: - Please avoid any excessive iteration of resets and initialization sequences (Device identification mode) as far as possible after power-on, which may result in read disturb failure. The resets include hardware resets and software resets. e.g. 1) Iteration of the following command sequence, CMD0 - CMD1 --The assertion of CMD1 implies a count of internal read operation in Raw NAND. CMD0: Reset command, CMD1: Send operation command e.g. 2) Iteration of the following commands, CMD30 and/or CMD31 CMD30: Send status of write protection bits, CMD31: Send type of write protection © 2019 KIOXIA Corporation 29 October 1st, 2019 THGBMJG6C1LBAIL DOCUMENT REVISION HISTORY Rev.0.1 Rev.1.0 Rev.2.0 Jan. 31st, 2019 Mar. 20th, 2019 Oct. 1st, 2019 © 2019 KIOXIA Corporation - Released as preliminary revision - Released as first version - Rebrand as "KIOXIA" 30 October 1st, 2019 THGBMJG6C1LBAIL RESTRICTIONS ON PRODUCT USE KIOXIA Corporation and its subsidiaries and affiliates are collectively referred to as “KIOXIA”. Hardware, software and systems described in this document are collectively referred to as “Product”. • KIOXIA reserves the right to make changes to the information in this document and related Product without notice. • This document and any information herein may not be reproduced without prior written permission from KIOXIA. Even with KIOXIA's written permission, reproduction is permissible only if reproduction is without alteration/omission. • Though KIOXIA works continually to improve Product's quality and reliability, Product can malfunction or fail. Customers are responsible for complying with safety standards and for providing adequate designs and safeguards for their hardware, software and systems which minimize risk and avoid situations in which a malfunction or failure of Product could cause loss of human life, bodily injury or damage to property, including data loss or corruption. Before customers use the Product, create designs including the Product, or incorporate the Product into their own applications, customers must also refer to and comply with (a) the latest versions of all relevant KIOXIA information, including without limitation, this document, the specifications, the data sheets and application notes for Product and the precautions and conditions set forth in the "Reliability Information" in KIOXIA Corporation’s website and (b) the instructions for the application with which the Product will be used with or for. Customers are solely responsible for all aspects of their own product design or applications, including but not limited to (a) determining the appropriateness of the use of this Product in such design or applications; (b) evaluating and determining the applicability of any information contained in this document, or in charts, diagrams, programs, algorithms, sample application circuits, or any other referenced documents; and (c) validating all operating parameters for such designs and applications. KIOXIA ASSUMES NO LIABILITY FOR CUSTOMERS' PRODUCT DESIGN OR APPLICATIONS. • PRODUCT IS NEITHER INTENDED NOR WARRANTED FOR USE IN EQUIPMENTS OR SYSTEMS THAT REQUIRE EXTRAORDINARILY HIGH LEVELS OF QUALITY AND/OR RELIABILITY, AND/OR A MALFUNCTION OR FAILURE OF WHICH MAY CAUSE LOSS OF HUMAN LIFE, BODILY INJURY, SERIOUS PROPERTY DAMAGE AND/OR SERIOUS PUBLIC IMPACT ("UNINTENDED USE"). Except for specific applications as expressly stated in this document, Unintended Use includes, without limitation, equipment used in nuclear facilities, equipment used in the aerospace industry, lifesaving and/or life supporting medical equipment, equipment used for automobiles, trains, ships and other transportation, traffic signaling equipment, equipment used to control combustions or explosions, safety devices, elevators and escalators, and devices related to power plant. IF YOU USE PRODUCT FOR UNINTENDED USE, KIOXIA ASSUMES NO LIABILITY FOR PRODUCT. For details, please contact your KIOXIA sales representative or contact us via our website. • Do not disassemble, analyze, reverse-engineer, alter, modify, translate or copy Product, whether in whole or in part. • Product shall not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any applicable laws or regulations. • The information contained herein is presented only as guidance for Product use. No responsibility is assumed by KIOXIA for any infringement of patents or any other intellectual property rights of third parties that may result from the use of Product. No license to any intellectual property right is granted by this document, whether express or implied, by estoppel or otherwise. • ABSENT A WRITTEN SIGNED AGREEMENT, EXCEPT AS PROVIDED IN THE RELEVANT TERMS AND CONDITIONS OF SALE FOR PRODUCT, AND TO THE MAXIMUM EXTENT ALLOWABLE BY LAW, KIOXIA (1) ASSUMES NO LIABILITY WHATSOEVER, INCLUDING WITHOUT LIMITATION, INDIRECT, CONSEQUENTIAL, SPECIAL, OR INCIDENTAL DAMAGES OR LOSS, INCLUDING WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF OPPORTUNITIES, BUSINESS INTERRUPTION AND LOSS OF DATA, AND (2) DISCLAIMS ANY AND ALL EXPRESS OR IMPLIED WARRANTIES AND CONDITIONS RELATED TO SALE, USE OF PRODUCT, OR INFORMATION, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, ACCURACY OF INFORMATION, OR NONINFRINGEMENT. • Do not use or otherwise make available Product or related software or technology for any military purposes, including without limitation, for the design, development, use, stockpiling or manufacturing of nuclear, chemical, or biological weapons or missile technology products (mass destruction weapons). Product and related software and technology may be controlled under the applicable export laws and regulations including, without limitation, the Japanese Foreign Exchange and Foreign Trade Law and the U.S. Export Administration Regulations. Export and re-export of Product or related software or technology are strictly prohibited except in compliance with all applicable export laws and regulations. • Please contact your KIOXIA sales representative for details as to environmental matters such as the RoHS compatibility of Product. Please use Product in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. KIOXIA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS. © 2019 KIOXIA Corporation 31 October 1st, 2019
