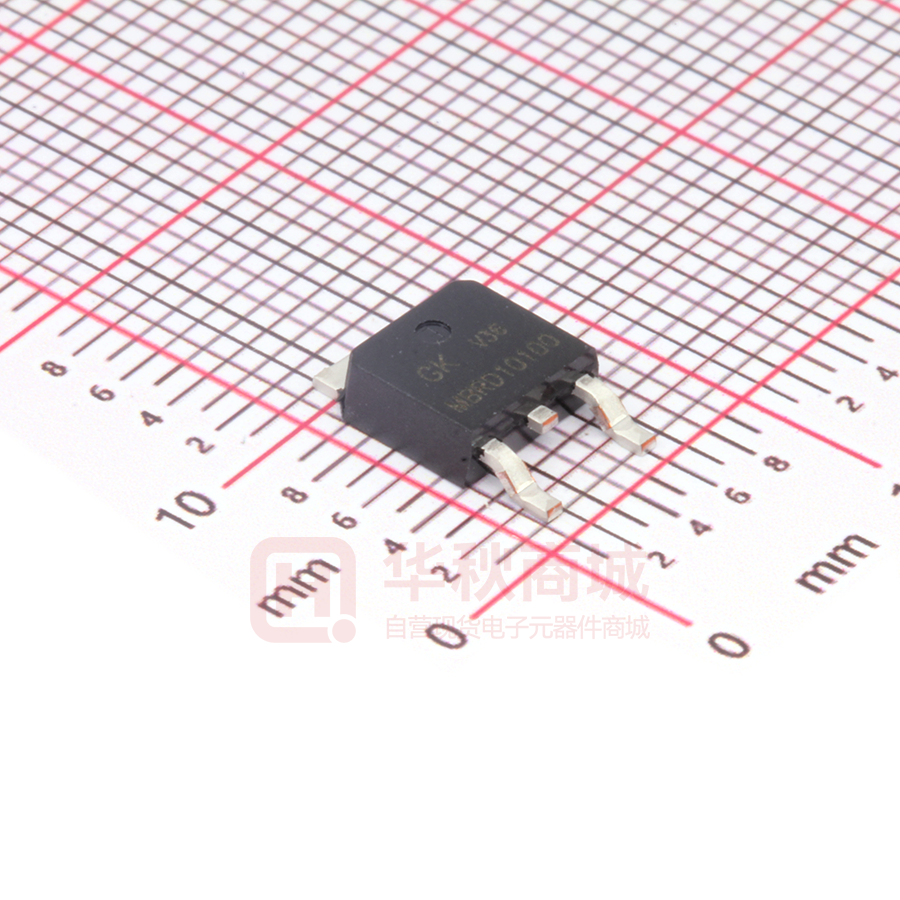

MBRD10100

MBRD1045 THRU MBRD10200 10 AMP SCHOTTKY BARRIER RECTIFIERS VOLTAGE RANGE 45 to 100 Volts CURRENT 10 Ampere FEATURES * Low forward voltage drop * High current capability * High reliability * High surge current capability * Epitaxial construction TO-252 MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Lead solderable per MIL-STD-202, method 208 guranteed * Polarity: As Marked * Mounting position: Any * Weight: 2.24 grams Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current MBRD MBRD MBRD MBRD 1045 1060 10100 10150 10200 45 60 100 150 200 32 45 42 60 70 100 105 150 140 200 .375"(9.5mm) Lead Length at Tc=100 C Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 10A Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Typical Junction Capacitance (Note1) Typical Thermal Resistance RqJA (Note 2) Operating Temperature Range TJ Storage Temperature Range TSTG Ta=125 C MBRD 150 0.70 0.85 0.90 0.05 0.2 20 35 400 8 -55 +150 -55 +150 V V V A 10 0.55 UNITS A V mA mA pF C/W C C NOTES: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2. Thermal Resistance Junction to Ambient Vertical PC Board Mounting 0.5"(12.7mm) Lead Length. REV 1.0 2017 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (MBRD1045 THRU MBRD10200) FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE FIG.2-TYPICAL FORWARD 2 0 0 20 40 60 80 100 120 140 160 180 200 CASE TEMPERATURE,( C) FIG.3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 20 BR D1 0 0 60 10 10 01 MB 50 -M RD 45 10 10 RD RD 5.0 MB RD 1 4 10 MB 6 MB 8 0 50 10 INSTANTANEOUS FORWARD CURRENT,(A) AVERAGE FORWARD CURRENT,(A) CHARACTERISTICS 12 1.0 Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 PEAK FORWARD SURGE CURRENT,(A) 150 .01 120 .1 .3 .5 .7 .9 1.1 1.3 1.5 FORWARD VOLTAGE,(V) 90 8.3ms Single Half Tj=25 C Sine Wave 60 JEDEC method 30 FIG.5 - TYPICAL REVERSE CHARACTERISTICS 0 1 5 50 10 100 100 NUMBER OF CYCLES AT 60Hz REVERSE LEAKAGE CURRENT, (mA) FIG.4-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE,(pF) 1400 1200 1000 800 600 400 10 Tj=75 C 1.0 Tj=25 C .1 200 0 .01 .05 .1 .5 1 REVERSE VOLTAGE,(V) 5 10 50 100 .01 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE,(%) REV 1.0 2017 JAN PAGE:2/2
