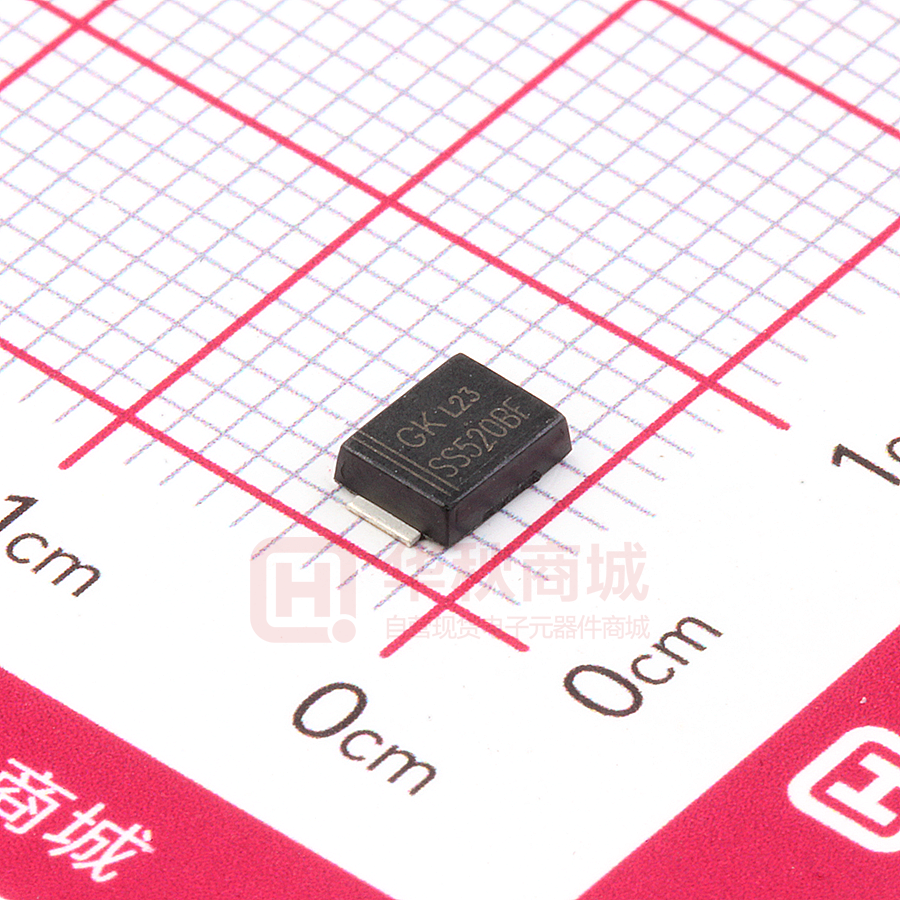

SS520BF

SS520BF SS515BF THRU 5.0 AMP SURF ACE MOUNT SCHOTTKY BARRIER RECTIFIERS VOLTAGE RANGE 150 to 200 Volts CURRENT 5.0 Amperes FEATURES SMBF * Ideal for surface mount applications * Easy pick and place * Built-in strain relief * Low forward voltage drop .173(4.4) .165(4.2) MECHANICAL DATA .216(5.5) .200(5.1) .086(2.2) .075(1.9) * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Metallurgically bonded construction * Polarity: Color band denotes cathode end * Mounting position: Any .010(0.26) .007(0.18) .051(1.30) .043(1.10) .146(3.7) .138(3.5) .051(1.3) .039(1.0) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER SS515BF Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current SS520BF 150 105 150 200 140 200 UNITS V V V at TL=100 C Peak Forward Surge Current, 8.3 ms single half sine-wave 5.0 A superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 5.0A Maximum DC Reverse Current Ta=25 C 150 A V mA at Rated DC Blocking Voltage Typical Junction Capacitance (Note1) Typical Thermal Resistance R JL(Note 2) Operating Temperature Range TJ Storage Temperature Range TSTG 0.92 0.05 10 380 Ta=100 C -65 -65 12 +150 +150 mA PF C/W C C NOTES: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2. Thermal Resistance Junction to Lead Vertical PC Board Mounting 0.375"(9.5mm) Lead Length. REV 1.0 2017 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (SS515BF THRU SS520BF) FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE FIG.2-TYPICAL FORWARD 50 5.0 4.0 3.0 2.0 1.0 0 0 20 40 60 80 100 120 140 160 180 200 LEAD TEMPERATURE,( C) FIG.3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT INSTANTANEOUS FORWARD CURRENT,(A) AVERAGE FORWARD CURRENT,(A) CHARACTERISTICS 6.0 10 3.0 1.0 Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 PEAK FORWARD SURGE CURRENT,(A) 150 .01 120 .1 .3 .5 .7 .9 1.1 1.3 1.5 FORWARD VOLTAGE,(V) 90 8.3ms Single Half Tj=25 C Sine Wave 60 JEDEC method 30 FIG.5 - TYPICAL REVERSE CHARACTERISTICS 0 1 5 50 10 100 100 NUMBER OF CYCLES AT 60Hz REVERSE LEAKAGE CURRENT, (mA) FIG.4-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE,(pF) 1400 1200 1000 800 600 400 10 Tj=100 C 1.0 .1 Tj=25 C 200 0 .01 .05 .1 .5 1 REVERSE VOLTAGE,(V) 5 10 50 100 .01 0 20 40 60 80 100 120 140 PERCENTAGE RATED PEAK REVERSE VOLTAGE REV 1.0 2017 JAN PAGE:2/2
