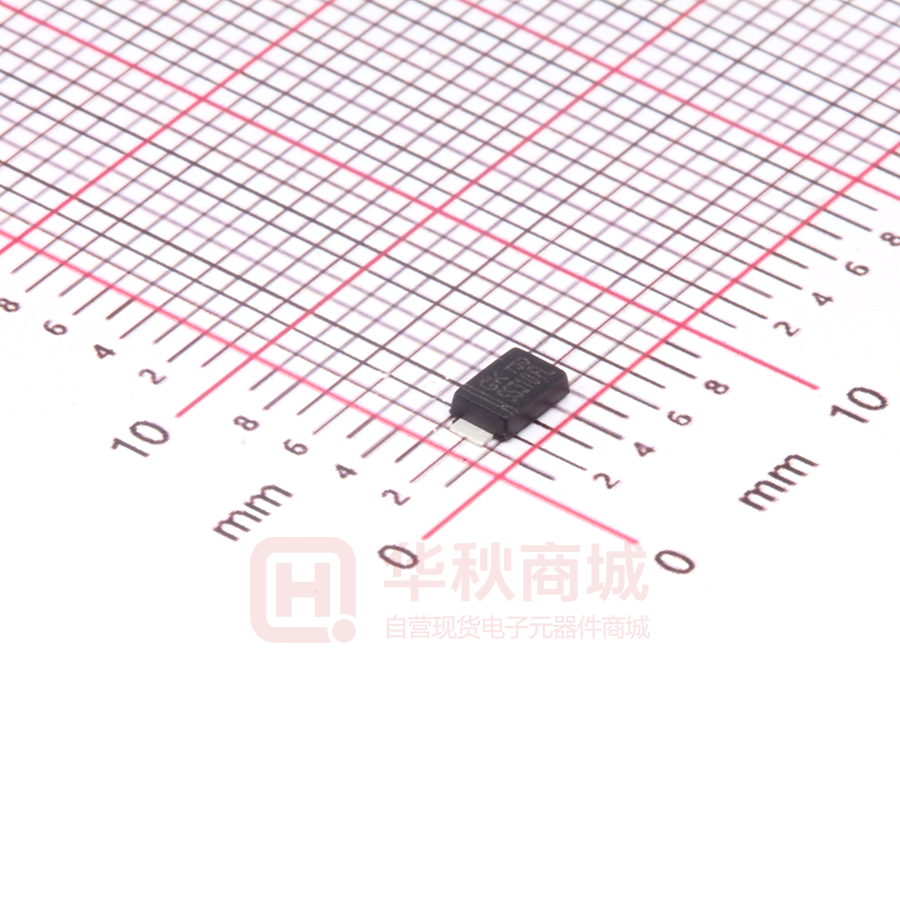

SS310FL

SS310FL 3.0 AMP SCHOTTKY BARRIER RECTIFIERS VOLTAGE RANGE 100 Volts CURRENT FEATURES 3.0 Amperes * Ideal for surface mount applications * Easy pick and place * Built-in strain relief * Low forward voltage drop SMAF .146(3.7) .130(3.3) .063(1.6) .051(1.3) MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Metallurgically bonded construction * Polarity: Color band denotes cathode end * Mounting position: Any .193(4.9) .173(4.4) .009(0.23) .007(0.18) .051(1.30) .043(1.10) .106(2.7) .094(2.4) .051(1.3) .039(1.0) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current See Fig. 1 Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 3.0A Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Ta=125 C Typical Junction Capacitance (Note1) Typical Thermal Resistance R JL (Note 2) Operating Temperature Range TJ Storage Temperature Range TSTG SS310 FL UNITS 100 70 100 V V V 3.0 A 80 A V A 0.67 100 0.70 0.85 20 240 100 250 28 10 to +150 -55 -55 to +150 mA pF C/W C C NOTES: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2. P.C.B. mounted with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas REV 1.0 2015 JAN PAGE:1/2 RATING AND VHARACTERISTIC CURVES(SS310FL) FIG.1-FORWARD CURRENT DERATING CURVE FIG.2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 120 RESISTIVE OR INDUCTIVE LOAD 4.0 PEAK FORWARD SURGE CURRENT(AMPERES) AVERAGE FORWARD CURRENT AMPERES 5.0 3.0 2.0 1.0 0 0 20 40 60 80 120 130 100 TJ=TJMAX 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 100 80 60 40 20 150 0 LEAD TEMPERATURE ( ℃) 1 10 100 NUMBER OF CYCLES AT 60Hz FIG.3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS FIG.4-TYPICAL REVERSE CHARACTERISTICS 200 INSTANTANEOUS REVERSE CURRENT (mA) INSTANTANEOUS FORWARD CURRENT( AMPERES) 50 TJ=100℃ 10 1 TJ=125℃ PULSE WIDTH=300μS 1% DUTY CYCLE TJ=25℃ 0.1 100 10 TJ=125℃ TJ=100℃ 1 0.1 0.01 TJ=25℃ 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.01 0 INSTANTANEOUS FORWARD VOLTAGE (V) 20 40 60 80 100 PERCENT OF RATED PEAK REVERSE VOLTAGE% FIG.5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE(pF) 4000 1000 100 0.1 1 10 100 REVERSE VOLTAGE. VOLTS REV 1.0 2015 JAN PAGE:2/2
