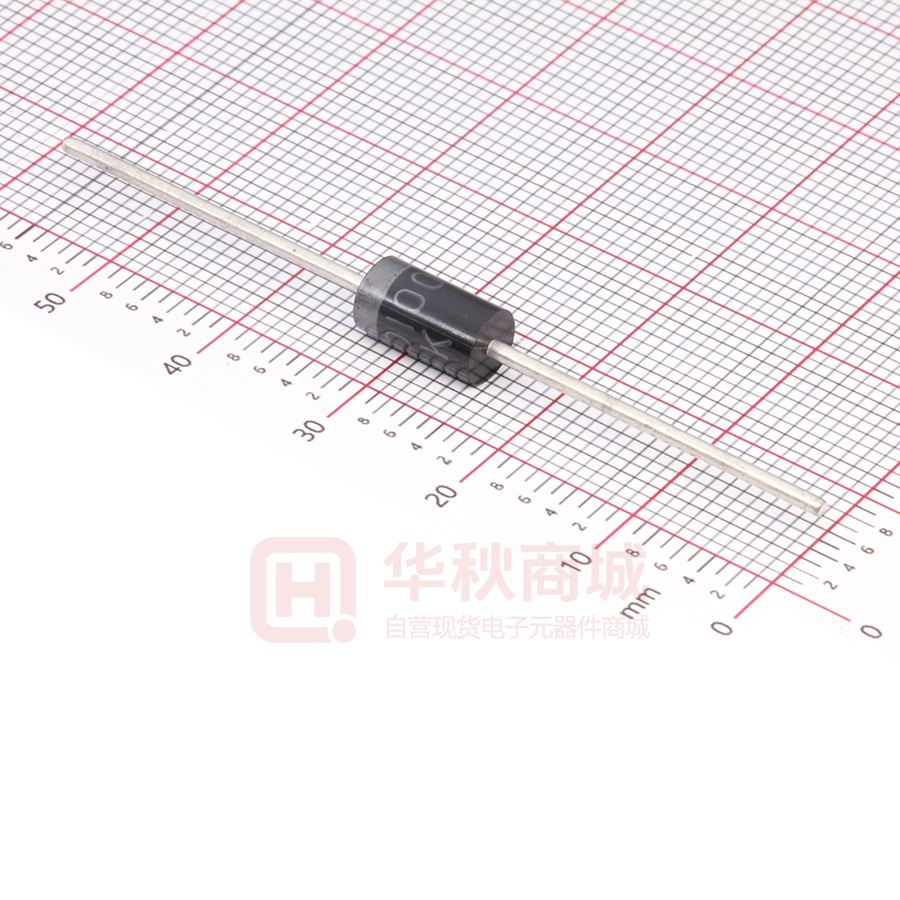

SR10100-B

SR1020 THRU SR10200 10.0 AMP SCHOTTKY BARRIER RECTIFIERS VOLTAGE RANGE 20 to 200 Volts CURRENT 10.0 Amperes FEATURES * Low forward voltage drop * High current capability * High reliability * High surge current capability * Epitaxial construction DO-27 .220(5.6) .197(5.0) DIA. 1.0(25.4) MIN. MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Lead solderable per MIL-STD-202, method 208 guranteed * Polarity: As Marked * Mounting position: Any .375(9.5) .285(7.2) 1.0(25.4) MIN. .052(1.3) .048(1.2) DIA. * Weight: 2.24 grams Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER SR1020 Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current SR1040 SR1060 SR1080 SR10100 SR10150 SR10200 UNITS 20 14 20 40 28 40 60 42 60 80 56 80 See Fig. 1 Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 10.0A Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Typical Junction Capacitance (Note1) Typical Thermal Resistance RqJC (Note 2) Operating Temperature Range TJ Storage Temperature Range TSTG 100 70 100 150 105 150 200 140 200 A 10.0 170 0.55 0.7 Ta=100 C -65 0.85 0.2 50 450 10.0 +150 -65 +150 V V V 0.92 -65 +175 A V mA mA pF C/W C C NOTES: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2. Thermal Resistance Junction to Case. REV 1.0 2017 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (SR1020 THRU SR10200) FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE FIG.2-TYPICAL FORWARD 50 60 20 40 60 80 100 120 140 160 180 200 CASE TEMPERATURE,( C) FIG.3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT R1 SR 10 20 0 SR 10 10 0 SR 10 60 20 -S 10 15 0- 0 R1 0 SR -S 0 5.0 SR 10 80 - 20 2 0 20 10 R -S 0 15 10 00 01 SR R1 -S 80 10 SR 4 10 10 6 SR 8 INSTANTANEOUS FORWARD CURRENT,(A) 04 0 10 10 SR AVERAGE FORWARD CURRENT,(A) CHARACTERISTICS 12 1.0 Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 PEAK FORWARD SURGE CURRENT,(A) 250 .01 200 .1 .3 .5 .7 .9 1.1 1.3 1.5 FORWARD VOLTAGE,(V) 150 8.3ms Single Half Tj=25 C Sine Wave 100 JEDEC method 50 FIG.5 - TYPICAL REVERSE CHARACTERISTICS 0 1 5 50 10 100 100 NUMBER OF CYCLES AT 60Hz REVERSE LEAKAGE CURRENT, (mA) FIG.4-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE,(pF) 2800 2400 2000 1600 1200 800 10 Tj=75 C 1.0 Tj=25 C .1 400 0 .01 .05 .1 .5 1 REVERSE VOLTAGE,(V) 5 10 50 100 .01 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE,(%) REV 1.0 2017 JAN PAGE:2/2
