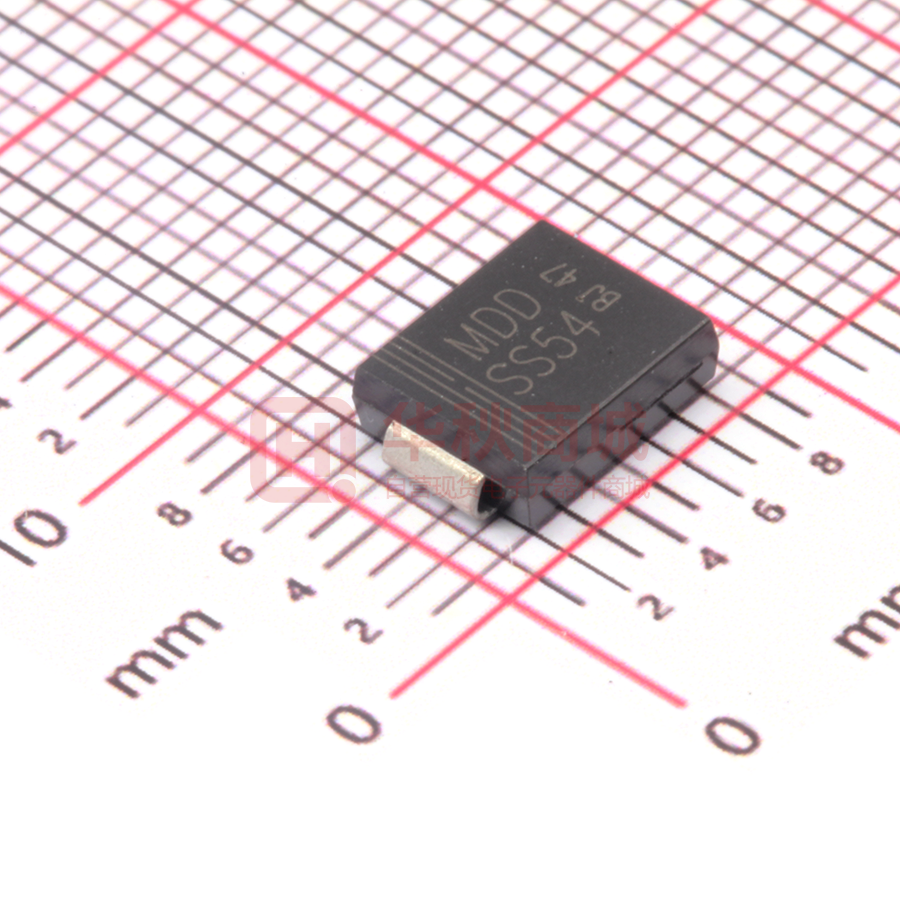

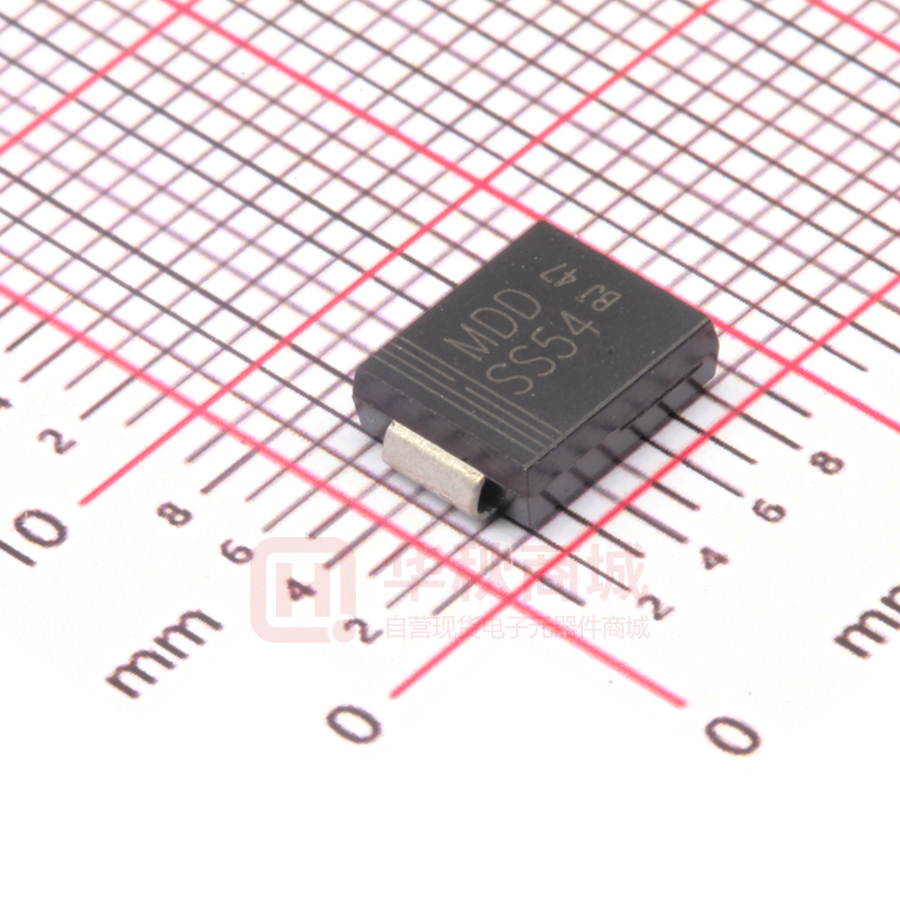

SS54-SMC

SS52 SS510 THRU 5.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS VOLTAGE RANGE 20 to 100 Volts CURRENT 5.0 Ampere FEATURES * Ideal for surface mount applications * Easy pick and place * Built-in strain relief * Low forward voltage drop DO-214AB(SMC) .245(6.22) .220(5.59) .124(3.15) .108(2.75) MECHANICAL DATA .280(7.11) .260(6.60) * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Metallurgically bonded construction * Polarity: Color band denotes cathode end * Mounting position: Any * Weight: 0.21 grams .012(0.31) .006(0.15) .103(2.62) .079(2.00) .008 MAX. (.203) .320(8.13) .305(7.75) .050(1.27) .030(0.76) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current SS52 SS53 20 14 20 30 21 30 SS54 40 28 40 SS55 SS56 SS58 SS59 SS510 UNITS 50 35 50 60 42 60 80 56 80 90 63 90 100 70 100 V V V at TL=90 C Peak Forward Surge Current, 8.3 ms single half sine-wave 150 superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 5.0A Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Typical Junction Capacitance (Note1) Typical Thermal Resistance RqJL (Note 2) Operating Temperature Range TJ Storage Temperature Range TSTG A 5.0 0.55 0.85 0.70 0.2 20 300 Ta=100 C 10 -65 +125 -65 -65 +150 +150 A V mA mA pF C/W C C NOTES: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2. Thermal Resistance Junction to Lead. REV 1.0 2017 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (SS52 THRU SS510) FIG.2-TYPICAL FORWARD FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE 0 20 40 60 80 100 120 140 160 180 200 LEAD TEMPERATURE ( C) FIG.3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT ~S S 51 0 56 ~S S ~S S 52 3.0 55 58 SS 10 S5 -S 4 1.0 SS 55 S5 -S 2.0 10 SS SS 52 3.0 INSTANTANEOUS FORWARD CURRENT,(A) 4.0 54 50 5.0 SS AVERAGE FORWARD CURRENT,(A) CHARACTERISTICS 6.0 1.0 Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 PEAK FORWARD SURGE CURRENT,(A) 250 .01 200 .1 .3 .5 .7 .9 1.1 1.3 1.5 FORWARD VOLTAGE,(V) 150 8.3ms Single Half Tj=25 C Sine Wave 100 JEDEC method 50 FIG.5 - TYPICAL REVERSE 0 CHARACTERISTICS 1 5 50 10 100 100 NUMBER OF CYCLES AT 60Hz REVERSE LEAKAGE CURRENT, (mA) FIG.4-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE,(pF) 700 600 500 400 300 200 10 1.0 Tj=75 C .1 Tj=25 C 100 0 .01 .05 .1 .5 1 REVERSE VOLTAGE,(V) 5 10 50 100 .01 0 20 40 60 80 100 120 140 PERCENTAGE RATED PEAK REVERSE VOLTAGE REV 1.0 2017 JAN PAGE:2/2
