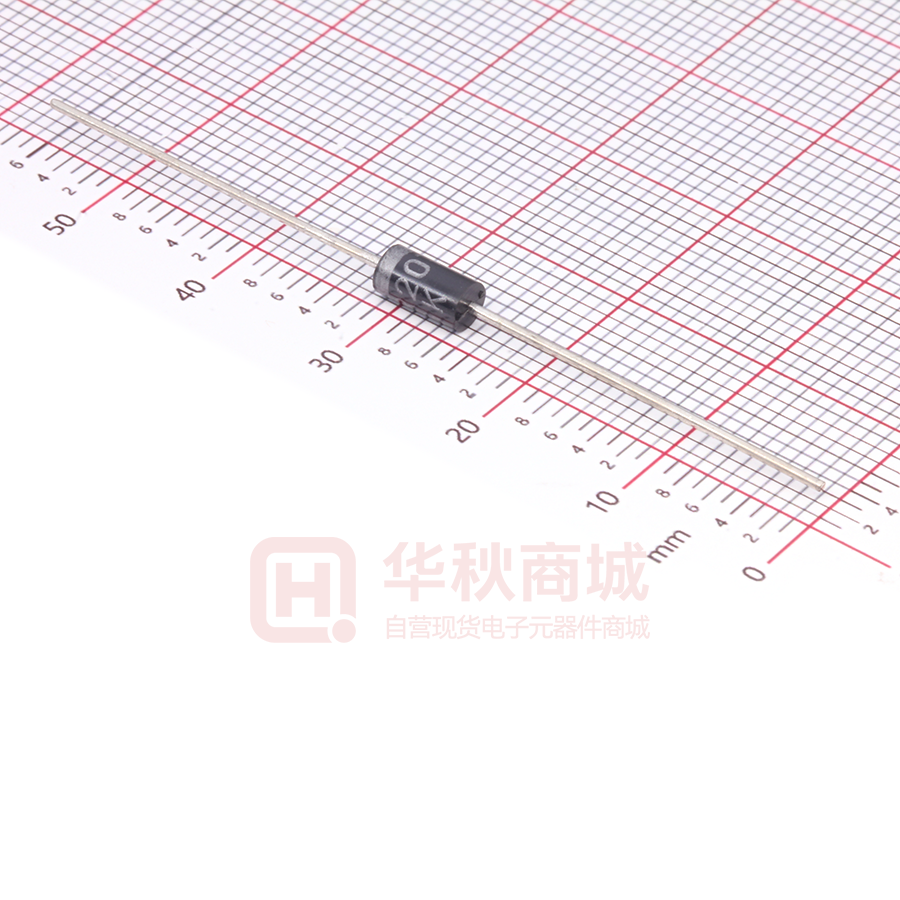

HER207-B

HER201 THRU HER208 2.0 AMP HIGH EFFICIENCY RECTIFIERS VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes FEATURES * Low forward voltage drop * High current capability * High reliability * High surge current capability * High speed switching DO-15 .140(3.6) .104(2.6) DIA. 1.0(25.4) MIN. MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Axial leads, solderable per MIL-STD-202, method 208 guranteed * Polarity: Color band denotes cathode end * Mounting position: Any * Weight: 0.40 grams .300(7.6) .230(5.8) 1.0(25.4) MIN. .034(.9) .028(.7) DIA. Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current HER201 HER202 HER203 HER204 HER205 HER206 HER207 HER208 50 35 50 100 70 100 200 140 200 300 210 300 .375"(9.5mm) Lead Length at Ta=50 C Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 2.0A Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Ta=100 C Maximum Reverse Recovery Time (Note 1) Typical Junction Capacitance (Note 2) Operating and Storage Temperature Range TJ, TSTG 400 280 400 600 420 600 800 560 800 60 1.3 5.0 1.85 150 50 70 -65 30 +150 UNITS V V V A 2.0 1.0 1000 700 1000 A V A A nS pF C NOTES: 1. Reverse Recovery Time test condition: IF=0.5A, IR=1.0A, IRR=0.25A 2. Measured at 1MHz and applied reverse voltage of 4.0V D.C. REV 1.0 2015 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (HER201 THRU HER208) FIG.2-TYPICAL FORWARD CURRENT DERATING CURVE FIG.1-TYPICAL FORWARD CHARACTERISTICS AVERAGE FORWARD CURRENT,(A) 8 ER 20 R2 20 04 6~ H ~H E ~H E 01 ER H 1.0 HE R2 HE R2 .1 2.4 2.0 1.6 Single Phase 1.2 Half Wave 60Hz Resistive Or Inductive Load 0.8 0.375"(9.5mm) Lead Length 0.4 0 0 25 50 75 100 125 150 175 AMBIENT TEMPERATURE ( C) Tj=25 C Pulse Width 300us 1% Duty Cycle .01 .001 .4 .6 .8 1.0 1.2 1.4 1.6 1.8 FORWARD VOLTAGE,(V) FIG.3- TEST CIRCUIT DIAGRAM AND REVERSE RECOVERY TIME CHARACTERISTICS 50W NONINDUCTIVE 10W NONINDUCTIVE ( ) (+) D.U.T. 25Vdc (approx.) PULSE GENERATOR (NOTE 2) ( ) PEAK FORWARD SURGE CURRENT,(A) FIG.4-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 100 80 60 8.3ms Single Half Tj=25 C Sine Wave 40 JEDEC method 20 0 (+) 1W NONINDUCTIVE 1 OSCILLISCOPE (NOTE 1) 5 50 10 100 NUMBER OF CYCLES AT 60Hz NOTES: 1. Rise Time= 7ns max., Input Impedance= 1 megohm.22pF. 2. Rise Time= 10ns max., Source Impedance= 50 ohms. FIG.5-TYPICAL JUNCTION CAPACITANCE 175 trr JUNCTION CAPACITANCE,(pF) INSTANTANEOUS FORWARD CURRENT,(A) R2 05 03 10 | | | | | | | | +0.5A 0 -0.25A -1.0A 150 125 100 75 50 25 1cm SET TIME BASE FOR 50 / 10ns / cm 0 .01 .05 .1 .5 1 5 10 50 100 REVERSE VOLTAGE,(V) REV 1.0 2015 JAN PAGE:2/2
