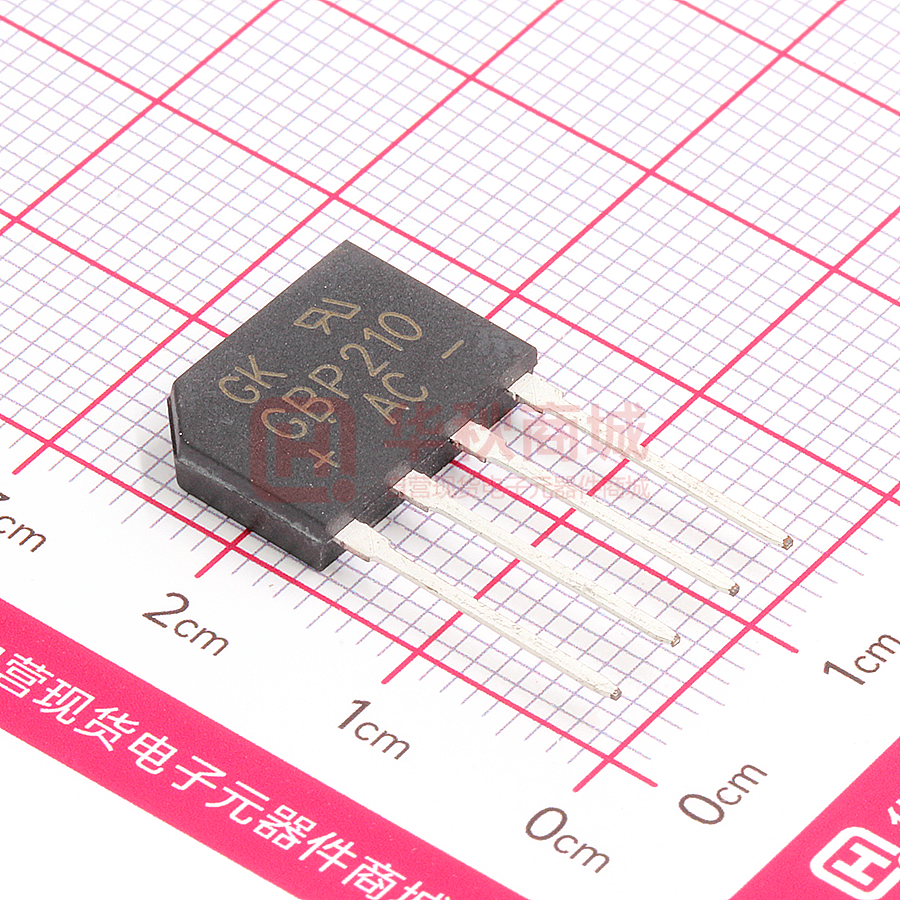

GBP206 THRU GBP210 SINGLE PHASE 2.0 AMP BRIDGE RECTIFIERS VOLTAGE RANGE 600 to 1000 Volts CURRENT FEATURES 2.0 Ampere * Ideal for printed circuit board GBP * Low forward voltage .110X45° (2.8) * Low leakage current .580(14.75) .561(14.25) .142(3.6) .133(3.4) * Polarity: marked on body .417(10.60) .410(10.20) * Mounting position: Any * Weight: 4.8 grams .043(1.1) .028(0.7) .106(2.7) .091(2.3) .610(15.5) .571(14.5) .056(1.42) .046(1.17) .034(.86) .030(.76) .024(0.6) .012(0.3) .160(4.06) .140(3.56) Dimensions in milimeters MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Symbols GBP206 GBP208 GBP210 Units Maximum Recurrent Peak Reverse Voltage VRRM 600 800 1000 Volts Maximum RMS Voltage VRMS 420 560 700 Volts Maximum DC Blocking Voltage VDC 600 800 1000 Volts Maximum Average Forward Rectified Current .375"(9.5mm) Lead Length at T A=50℃ I(AV) 2.0 Amp IFSM 50 Amp VF 1.1 Volts Peak Forward Surge Current, 8.3ms single half-sine-wave superimposed on rated load (JEDEC method) Maximum Forward Voltage at 2.0A DC and 25℃ Maximum Reverse Current at TA=25℃ at Rated DC Blocking Voltage T A=100℃ IR 5.0 500 uAmp CJ 25 pF Typical Thermal Resistance (Note 2) RθJA 30 ℃/W Typical Thermal Resistance (Note 2) RθJL 16 ℃/W TJ，Tstg -55 to +150 ℃ Typical Junction Capacitance (Note 1) Operating and Storage Temperature Range NOTES: 1- Measured at 1 MHZ and applied reverse voltage of 4.0 VDC. 2- Thermal Resistance Junction to Ambient and form junction to lead at 0.375"(9.5mm) lead length P.C.B. Mounted. REV 1.0 2017 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (GBP206 THRU GBP210) FIG.2-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 1.2 2.0 1.6 Single Phase 1.2 Half Wave 60Hz Resistive Or Inductive Load 0.8 0.4 0 0 25 50 75 100 125 150 175 CASE TEMPERATURE,( C) PEAK FORWARD SURGE CURRENT,(A) AVERAGE FORWARD CURRENT,(A) FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE 50 40 30 8.3ms Single Half Tj=25 C Sine Wave 20 JEDEC method 10 0 1 5 50 10 100 NUMBER OF CYCLES AT 60Hz FIG.3-TYPICAL FORWARD FIG.4-TYPICAL REVERSE CHARACTERISTICS CHARACTERISTICS 50 50 10 REVERSE LEAKAGE CURRENT, (mA) INSTANTANEOUS FORWARD CURRENT,(A) Tj=125 C 3.0 1.0 Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 10 3.0 1.0 0.1 Tj=25 C .01 0 .2 .4 .6 .8 1.0 FORWARD VOLTAGE,(V) 1.2 1.4 .01 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE, (%) REV 1.0 2017 JAN PAGE:2/2
