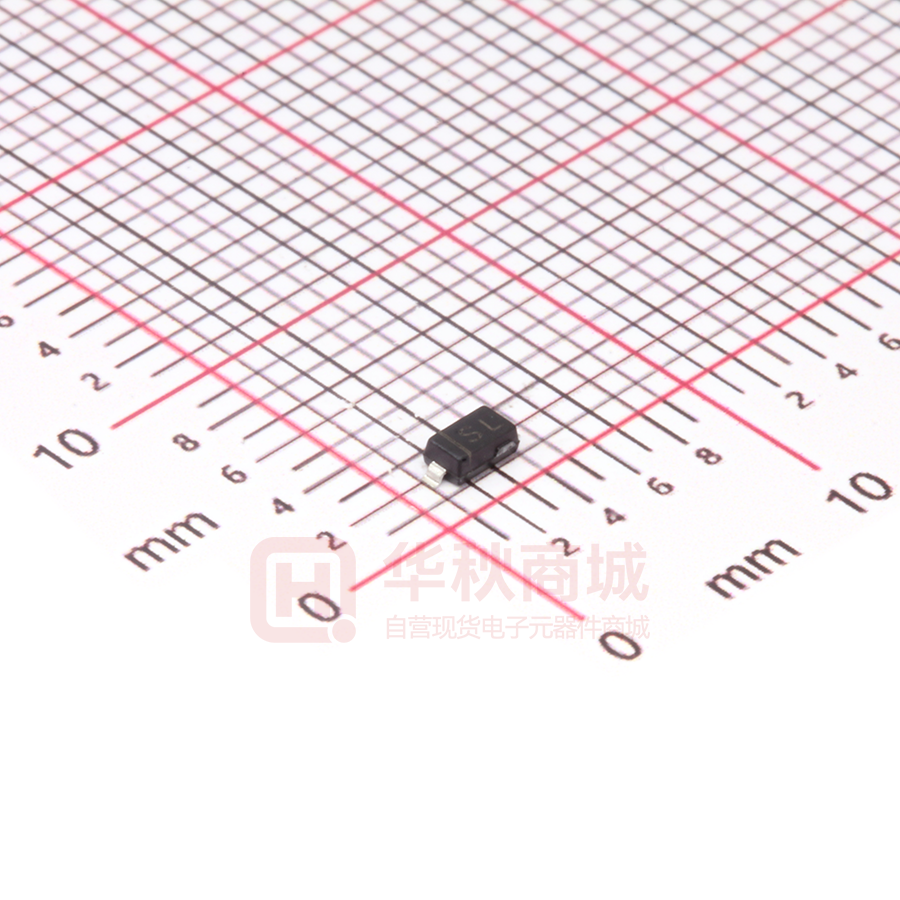

1N5819HW-MS

www.msksemi.com 1N5819HW-MS Semiconductor Compiance FEATURES For use in low voltage, high frequency inverters Free wheeling, and polarity protection applications. SOD-123 Maximum Ratings and Electrical Characteristics, Single Diode @Ta=25℃ Symbol 1N5819HW-MS Unit Non-Repetitive Peak Reverse Voltage VRM 40 V Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage VRRM VRWM VR 40 V VR(RMS) 28 V IO 1 A Peak Forward Surge Current @t=8.3ms IFSM 9 A Repetitive Peak Forward Current IFRM 1.5 A Power Dissipation PD 500 mW RθJA 200 ℃/W Junction temperature TJ 125 ℃ Storage Temperature TSTG -55~+150 ℃ Parameter RMS Reverse Voltage Average Rectified Output Current Thermal Resistance Junction to Ambient ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Reverse breakdown voltage Reverse voltage leakage current Symbol conditions V(BR) IR= 1mA IR VR=40V VF Diode capacitance Test CD I F=1A IF=3A VR=4V, f=1MHz Min Max Unit V 40 1 0.6 0.9 120 mA V pF www.msksemi.com 1N5819HW-MS Semiconductor Forward Characteristics Reverse Characteristics 1 (mA) 0.1 REVERSE CURRENT I 10 T =100 oC a 1 0.01 0.0 0.2 0.4 FORWARD VOLTAGE V F T =25 oC a 0.01 1E-3 0.8 Capacitance Characteristics D P POWER DISSIPATION REVERSE VOLTAGE V 10 R 100 (V) 10 15 20 V R 25 (V) Power Derating Curve 600 Ta=25 ℃ f=1MHz 1 5 REVERSE VOLTAGE 100 10 0.1 0 (V) T CAPACITANCE BETWEEN TERMINALS C (pF) 1000 0.6 0.1 (mW) FORWARD CURRENT R I F (A) 5 Compiance 500 400 300 200 100 0 0 25 50 75 100 AMBIENT TEMPERATURE Ta 125 150 (℃) www.msksemi.com 1N5819HW-MS Semiconductor Compiance PACKAGE MECHANICAL DATA Symbol A A1 A2 b c D E E1 L L1 θ Dimensions In Millimeters Max Min 1.050 1.250 0.000 0.100 1.050 1.150 0.450 0.650 0.080 0.150 1.500 1.700 2.600 2.800 3.550 3.850 0.500 REF 0.250 0.450 0° 8° Dimensions In Inches Min Max 0.041 0.049 0.000 0.004 0.041 0.045 0.018 0.026 0.003 0.006 0.059 0.067 0.102 0.110 0.140 0.152 0.020 REF 0.010 0.018 0° 8° REEL SPECIFICATION P/N 1N5819HW-MS PKG SOD-123 QTY 3000 www.msksemi.com 1N5819HW-MS Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, products must not be exported without obtaining the export license from theauthorities concerned such in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
