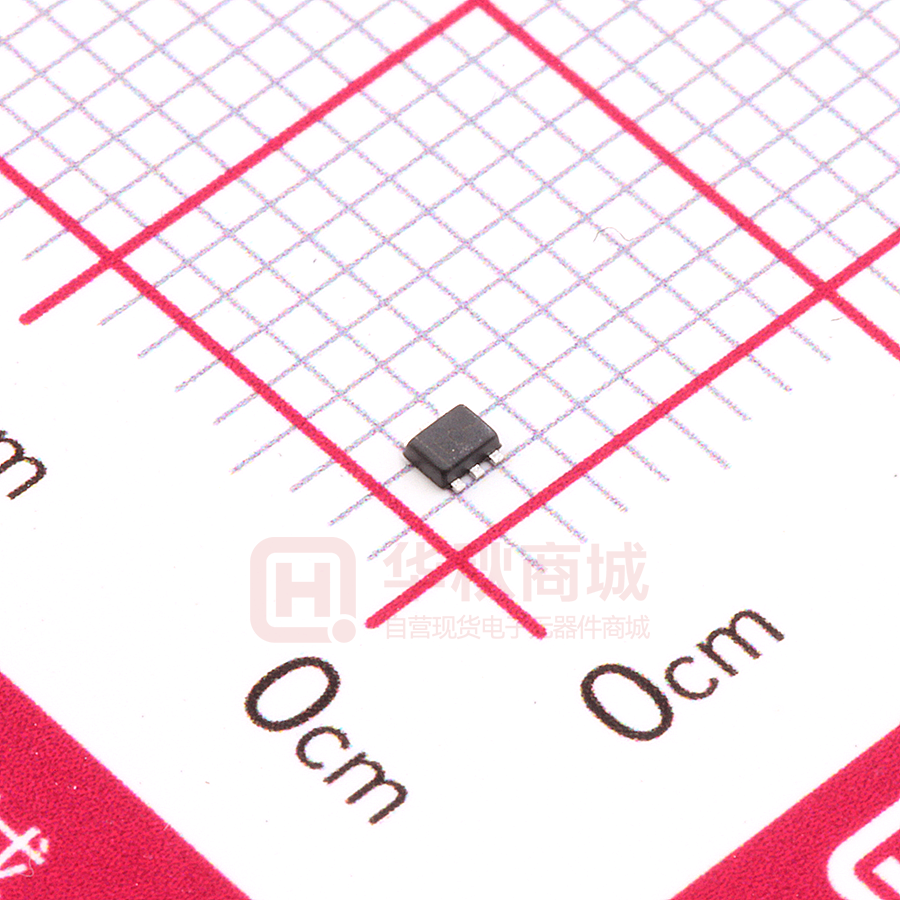

ESDA6V8AV6

www.msksemi.com ESDA6V8AV6 Semiconductor Specification Features: zWorking Peak Reverse Voltage: 5 V zLow Leakage current: 20kV per HBM zIEC61000- 4- 2 Level 4 ESD Protection zIEC61000- 4- 4 Level 4 EFT Protection zFive separate unidirectional configurations SOTï563 1 6 2 5 3 4 Compiance Mechanical Characteristics zVoid Free, Transfer-Molded, Thermosetting Plastic Case zCorrosion Resistant Finish, Easily Solderable zSmall Packaging Applications zCell Phone Handsets and Accessories zPersonal Digital Assistants (PDA's) zNotebooks, Desktops, and Servers zPortable Instrumentation zDigital Cameras zPeripherals zMP3 Players Absolute Maximum Rating Rating Peak Pulse Power(tp=8/20us) Maximum Peak Pulse Current(tp=8/20us) ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) Maximum lead temperature for soldering during 10s Storage Temperature Range Operating Temperature Range Symbol Ppp Ipp Value 20 1.6 Units W A Vpp KV TL ±20 ±16 260 Tstg Top -55~+150 -55~+125 o C o C C o www.msksemi.com ESDA6V8AV6 Semiconductor Compiance Electrical Characteristics (T=25oC, Device for 5.0V Working Peak Reverse Voltage) Conditions Minimum Typical IR VRWM=5V VF IF= -10mA -0.4 -0.8 VBR IT=1mA 6.2 6.8 IPP=1A, tp = 8/20us, note1 VC IPP=1.6A, tp = 8/20us, note1 C Pin1 to 2 VR = 0V, f = 1MHz 9 Maximum 0.5 -1.25 7.2 12 14.4 Unit uA V V V V pF Note1: Surge current waveform per Figure 1. Electrical Parameter Symbol IPP VC VRWM IR IT VBR IF VF Parameter Maximum Reverse Peak Pulse Current Clamping Voltage @ IPP Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM Test Current Breakdown Voltage @ IT Forward Current Forward Voltage @ IF I IF VF VC VBR VRWM IR V IPP www.msksemi.com ESDA6V8AV6 Semiconductor Compiance Typical Characteristics Figure 2. Power Derating Curve Figure 1. Pulse Waveform 110 WAVEFORM PARAMETERS tr = 8 ms td = 20 ms 90 PERCENT OF IPP 80 70 110 100 % of Rated Power or I PP 100 cït 60 td = IPP/2 50 40 30 90 80 70 60 50 40 30 20 20 10 0 0 10 5 10 15 20 25 0 30 0 25 Figure 3. Non-Repetitive Peak Pulse Power vs. Pulse Time 75 100 125 150 Figure 4. Junction Capacitance vs. Reverse Voltage 10 10 Capacitance - Cj (pF) Peak Pulse Power - P PP (kW) 50 Ambient Temperature - TA (oC) t, TIME (ms) 1 0.1 0.01 0.1 1 10 Pulse Duration - tp (Ps) 100 1000 8 6 4 2 0 1 2 3 Reverse Voltage - VR (V) 4 5 www.msksemi.com ESDA6V8AV6 Semiconductor Compiance PACKAGE MECHANICAL DATA REEL SPECIFICATION P/N PKG QTY ESDA6V8AV6 SOT-563 3000 www.msksemi.com ESDA6V8AV6 Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
