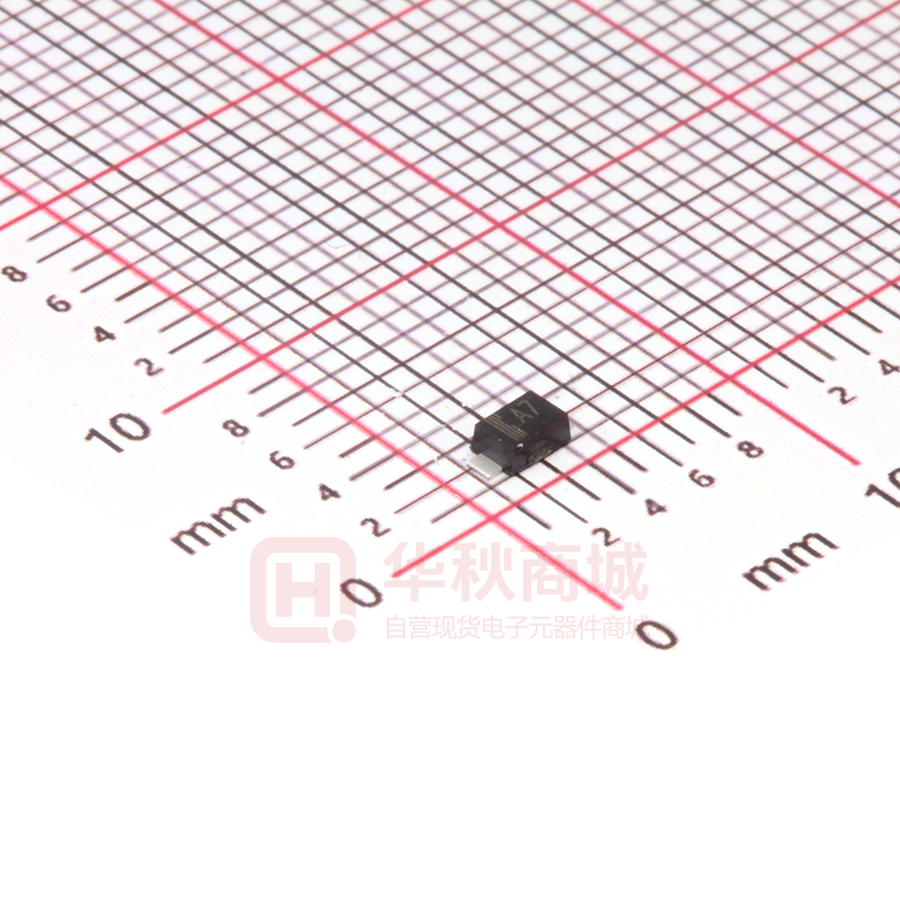

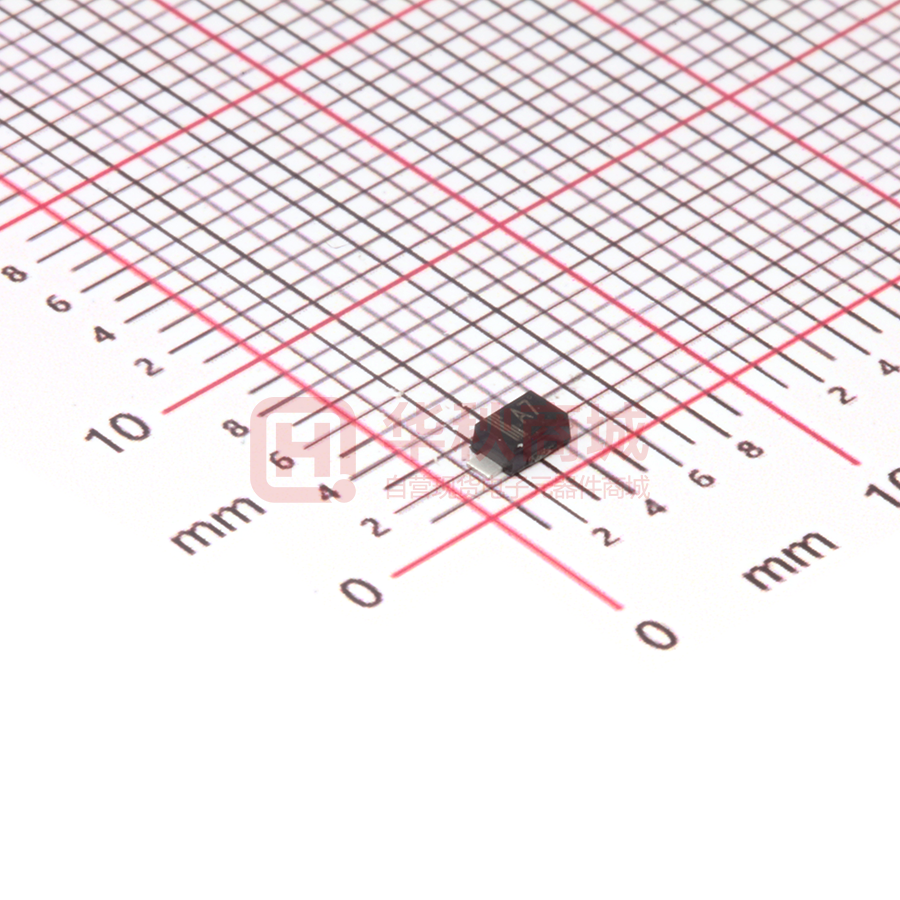

SOD4007-MS

www.msksemi.com SOD4001-MS THRU SOD4007-MS Semiconductor FEATURES Compiance MECHANICAL DATA Glass passivated device Ideal for surface mouted applications Low reverse leakage Metallurgically bonded construction High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension Case: JEDEC SOD-123FL molded plastic body over passivated chip Terminals: Solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.0007 ounce, 0.02 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. P/N SOD4001 SOD4002 SOD4003 SOD4004 SOD4005 SOD4006 SOD4007 UNITS -MS -MS -MS -MS -MS -MS -MS A3 A5 A6 A7 VRRM A1 1 A2 Maximum repetitive peak reverse voltage 50 100 200 400 600 800 1000 VOLTS Maximum RMS voltage VRMS 35 70 140 280 420 560 700 VOLTS Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 VOLTS MARK Maximum average forward rectified current I(AV) at TA=65 C (NOTE 1) Peak forward surge current IFSM 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) TL=25 C VF Maximum instantaneous forward voltage at 1.0A Maximum DC reverse current TA=25 C IR at rated DC blocking voltage TA=125 C Typical junction capacitance (NOTE 2) CJ Typical thermal resistance (NOTE 3) RJA Operating junction and storage temperature range TJ,TSTG A4 1.0 Amp 25.0 Amps 1.0 Volts 10.0 50.0 A 4 180 -55 to +150 pF K/W C Note: 1.Averaged over any 20ms period. 2. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3. Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted www.msksemi.com SOD4001-MS THRU SOD4007-MS Semiconductor FIG.2-- TYPICALJUNCTIONCAPACITANCE 1000 10 TJ = 150°C CAPACITANCE, pF 9 TJ = 25°C m AMPERES INSTANTANEOUS FORWARDCURRENT FIG.1 --TYPICALFORWARDCHARACTERISTIC TJ = 100°C 8 7 6 5 4 3 2 1 100 600 700 800 900 1000 0 1100 INSTANTANEOUSFORWARDVOLTAGE,mV TJ = 150C 10 TJ = 125C TJ =100C 1 TJ = 75C TJ =50C 0.1 TJ =25C 0.01 0 100 200 300 400 500 600 700 800 900 INSTANTANEOUSREVERSEVOLTAGE,V 5 10 15 20 25 30 35 40 FIG.4 -- FORWARDDERATINGCURVE AVERAGE FORWARD CURRENT, AMPERES 100 0 REVERSEVOLTAGE,VOLTS FIG.3 --TYPICAL INSTANTANEOUS REVERSE CHARACTERISTICS  AMPERES INSTANTANEOUS REVERSECURRENT Compiance 1.2 Resistive or Inductive Load 1.0 0.8 0.6 0.4 0.2 0 3.0 x 3.0mm 40 µm Thick Copper Pad Areas 0 20 40 60 80 100 120 140 160 AMBIENT TEMPERATEU,R www.msksemi.com SOD4001-MS THRU SOD4007-MS Semiconductor Compiance 1.8± 0.3 0.95 ±0.25 PACKAGE MECHANICAL DATA 1.15±0.25 0.05-0.30 2.75 ±0.25 0.6±0.3 3.7 ±0.30 Dimensions in millimeters 1.4 2.85 1.2 REEL SPECIFICATION P/N SOD4001-MS THRU SOD4007-MS PKG SOD-123FL QTY 3000 www.msksemi.com SOD4001-MS THRU SOD4007-MS Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, products must not be exported without obtaining the export license from theauthorities such concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
