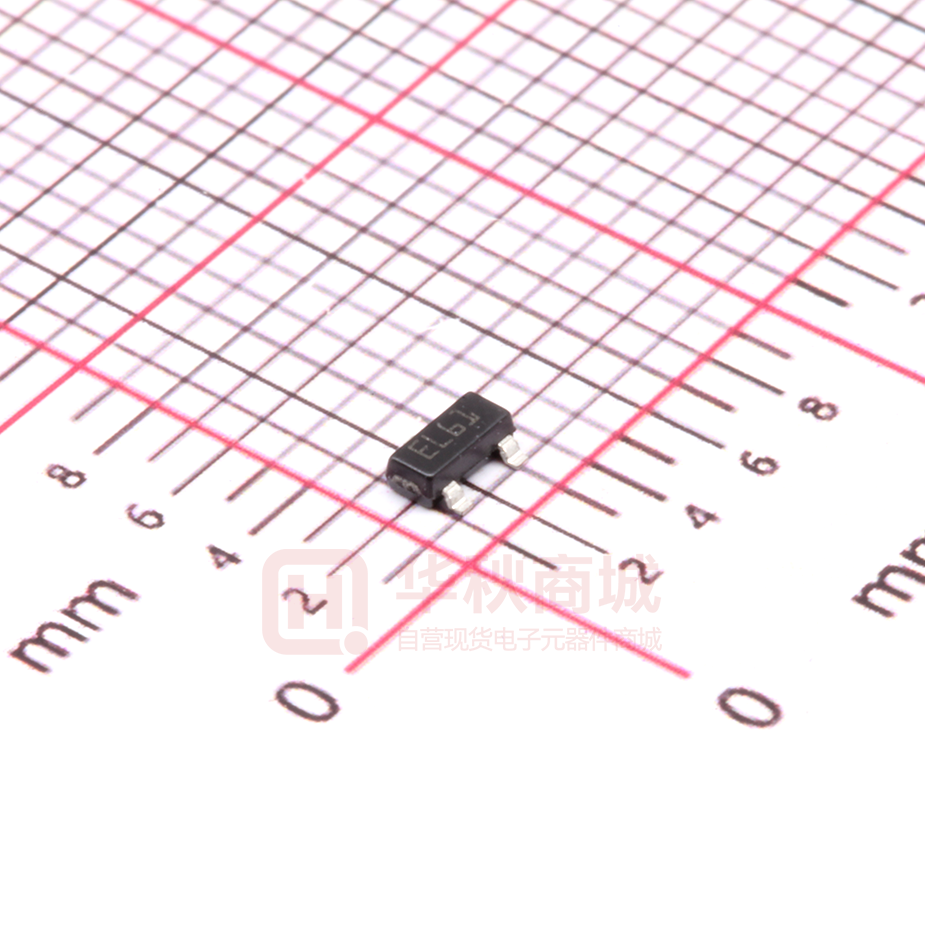

ESDA6V1L

www.msksemi.com ESDA6V1L Semiconductor Compiance Features SOT-23 ■ 150 Watts peak pulse power (tp =8/20μs) ■ Bidirectional and unidirectionalconfigurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ Low capacitance (Cj=100 pF typ.) ■ Protection two data lines ■ IEC 61000-4-2 ±20kV contact ±15kV air ■ IEC 61000-4-4 (EFT) 40A(5/50ns) ■ IEC 61000-4-5 (Lightning) 10A(8/20μs) 3 Mechanical Data 1 2 3 1 ■ SOT-23 package ■ Molding compound flammability rating: UL 94V-0 ■ Packaging: Tape and Reel ■ RoHS/WEEE Compliant Applications 2 ■ Dataline ■ Automatic Teller Machines ■ Net works ■ Power line www.msksemi.com ESDA6V1L Semiconductor Compiance Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs ) PPP 150 Watts Peak Pulse Current ( tp =8/20μs )(note1) Ipp 10 A VESD 20 15 kV Lead SolderingTemperature TL 260(10seconds) ℃ JunctionTemperature TJ -55 to + 125 ℃ StorageTemperature Tstg -55 to + 125 ℃ ESD per IEC 61000-4-2(Air) ESD per IEC 61000-4-2 (Contact) Electrical Characteristics Parameter Symbol Reverse Stand-OffVoltage Conditions Min Typical VRWM Max Units 5 V VBR IT=1mA Reverse LeakageCurrent IR VRWM=5V,T=25℃ 1 μA Peak Pulse Current IPP tp =8/20μs 10 A IPP=1A,tp=8/20μs 10 VC V Clamping Voltage IPP=10A,tp=8/20μs 15 V Reverse BreakdownVoltage Cj JunctionCapacitance 6.0 VR = 0V, f =1MHz (pin1、pin2 to pin3) V 100 pF Electrical Parameters (TA = 25°C unless otherwisenoted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRW M IR VBR IT I IF Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRW M Breakdown Voltage @ IT VC VBR VRWM IR V F IT V Test Current IPP Note:. 8/20μs pulsewaveform. www.msksemi.com ESDA6V1L Semiconductor Compiance Figure 1: Peak Pulse Power vs. Pulse Time Figure 2: Power Derating Curve 10 110 100 Percent of Rated Power for Ipp P pp – Peak Pulse Power - Ppp(KW) TypicalCharacteristics 150w 8/20μs waveform 1 0.1 0.01 0.1 1 10 100 90 80 70 60 50 40 30 20 10 0 1,000 td – Pulse Duration - µs 90 Ipp 80 e-1 Percent 50 40 30 td=Ipp/ 2 10 8 6 4 Time (µs) 20 25 30 Test Waveform Paramters tr=8µs td=20µs 12 2 15 150 14 0 10 125 16 10 5 100 18 Clamping Voltage–VC (V) 100 0 75 20 Waveform Paramters tr=8µs td=20µs 20 50 Figure 4: Clamping Voltage vs.Ipp 110 60 25 Ambient Temperature - TA (℃) Figure3: Pulse Waveform 70 0 0 1 2 3 4 5 6 Peak Pulse Current–IPP (A) www.msksemi.com ESDA6V1L Semiconductor Compiance PACKAGE MECHANICAL DATA Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° REEL SPECIFICATION P/N ESDA6V1L PKG QTY SOT-23 3000 www.msksemi.com ESDA6V1L Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
