www.msksemi.com

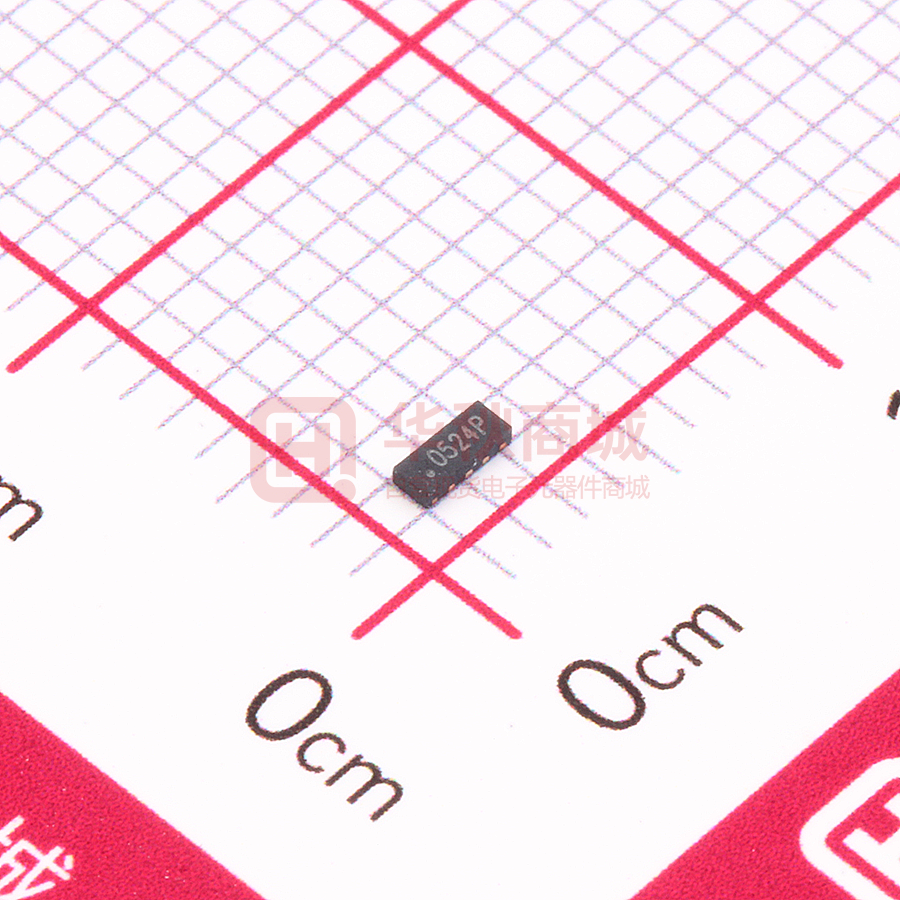

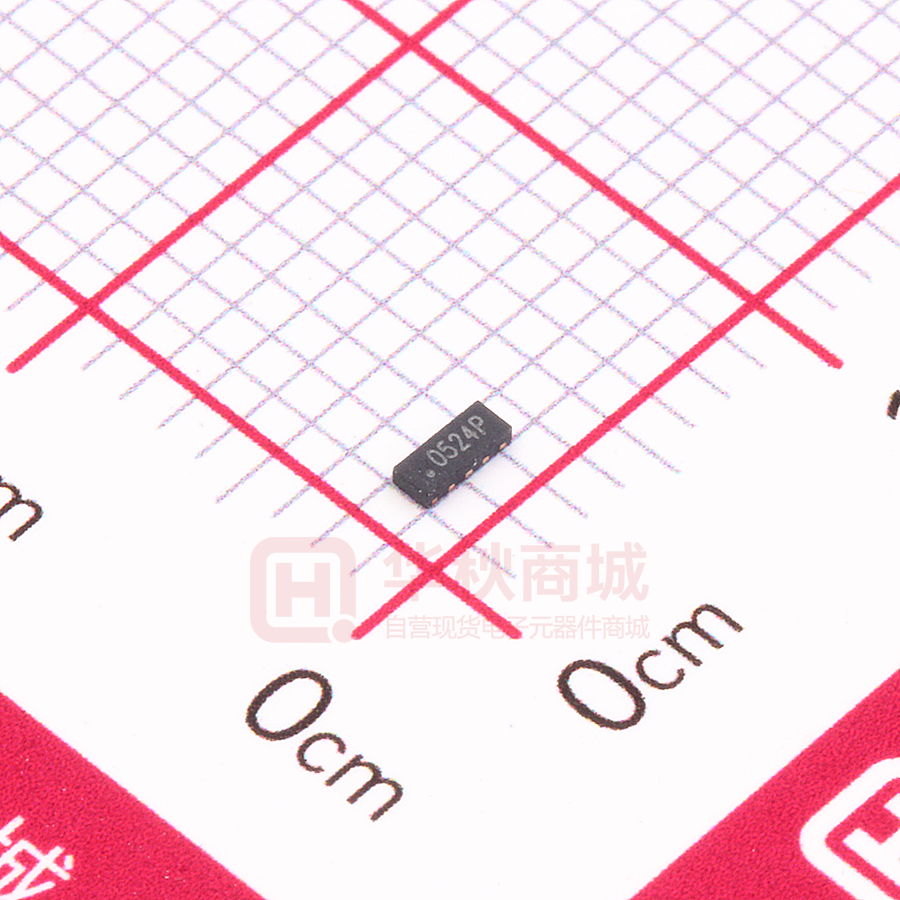

PESDALC10N5VU-MS
Semiconductor
Features
Compiance
Pin Description
Ultra-Low capacitance:0.35pF(typ.)
Reverse stand-off voltage:5V
IEC 61000-4-2 (Air): ±15KV
IEC 61000-4-2 (Contact): ±10KV
Applications
USB 3.0, USB 2.0
HDMI 1.3/1.4, Display Port 1.3, eSATA
Unified Display Interface (UDI)
Digital Visual Interface (DVI)
High speed serial interfaces
Schematic Diagram
Top View
Limiting Values(TA = 25 °C, unless otherwise specified)
Symbol
Parameter
VESD
Electrostatic Discharge Voltage
IPPM
Rated Peak Pulse Current
Conditions
Min
Max
Unit
IEC 61000-4-2; Contact Discharge
-
±10
kV
IEC 61000-4-2; Air Discharge
-
±15
kV
tP = 8/20 µs
-
2.5
A
TA
Ambient Temperature Range
-
-55
125
℃
Tstg
Storage Temperature Range
-
-55
150
℃
www.msksemi.com
PESDALC10N5VU-MS
Semiconductor
Compiance
Electrical Characteristics(TA = 25 °C unless otherwise specified)
Symbol
Parameter
Conditions
Min
Typ.
Max
Unit
Reverse Working Voltage
TA = 25 °C
-
-
5
V
Breakdown Voltage
IR = 1 mA
6
7.2
9.5
V
IR
Reverse Leakage Current
VRWM = 5V
-
0.01
1
µA
VC
Clamping Voltage
IPP=2.5A, TP=8/20μs
-
10
-
V
VESD=+8kV
-
20
-
V
VT
Trigger Voltage
VESD=+8kV
-
135
-
V
CJ
Junction Capacitance
VR = 0V, f = 1 MHz, I/O to I/O
-
0.15
-
pF
VR = 0V, f = 1 MHz, I/O to GND
-
0.35
-
pF
VRWM
VBR
Typical Characteristics
Fig.1 IEC61000-4-2 +8kV Contact ESD
Clamping Waveform
Fig.3 Pulse Waveform-8/20μs
Fig.2 Transmission Line Pulse (tP=100ns)
Fig.4 Pulse Waveform-ESD(IEC61000-4-2)
www.msksemi.com
PESDALC10N5VU-MS
Semiconductor
Compiance
PACKAGE MECHANICAL DATA
A
A
C
A1
b1xN
bbb
R0.125
1
E
C A B
2
DIMENSI
LxN
E/2
DIM
2X R0.075 PLACES
7
N
bxN
e
B
SEATING
PLANE
aaa C
A2
D
bbb
D/2
C A B
Dimensions in millimeters
A
A1
A2
b
b1
D
E
e
L
N
aaa
bbb
ONS
INCHES
MIN
MILLIMETERS
NOM MAX
.020
.023
0.00
.001
(.005)
.006
.008
.014
.016
.094
.098
.035
.039
.020 BSC
.012
.015
8
.003
.004
.026
.002
.010
.018
.102
.043
.017
MIN
NOM
MAX
0.50 0.58
0.00 0.03
(0.13)
0.15 0.20
0.35 0.40
2.40 2.50
0.90 1.00
0.50 BSC
0.30 0.38
8
0.08
0.10
0.65
0.05
0.25
0.45
2.60
1.10
0.425
DIMENSIONS
P1
P
Y
Z (C)
(Y1)
G
X
X1
DIM
INCHES
MILLIMETERS
C
(.034)
(0.875)
G
.008
0.20
P
.020
0.50
P1
.039
1.00
X
.008
0.20
X1
.016
0.40
Y
.027
0.675
Y1
(.061)
(1.55)
Z
.061
1.55
NOTES:
CONTROLLING DIMENSIONS ARE IN MILLIMETERS (ANGLES IN DEGREES).
THIS LAND PATTERN IS FOR REFERENCE PURPOSES ONLY.
CONSULT YOUR MANUFACTURING GROUP TO ENSURE YOUR
COMPANY'S MANUFACTURING GUIDELINES ARE MET.
REEL SPECIFICATION
P/N
PESDALC10N5VU-MS
PKG
QTY
DFN-10
3000
www.msksemi.com
PESDALC10N5VU-MS
Semiconductor
Compiance
Attention
■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications
that can handle applications that require extremely high levels of reliability, such as life-support systems,
aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your MSKSEMI Semiconductor representative
nearest
you
before using any MSKSEMI Semiconductor products described or contained herein in such applications.
■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products
at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described
orcontained herein.
■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the
performance, characteristics, and functions of the described products in the independent state, and are not
guarantees of the performance, characteristics, and functions of the described products as mounted in the
customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent
device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment.
■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all
semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to
accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause
damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents
or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention
circuitsfor safedesign, redundant design, and structural design.
■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described
or contained herein are controlled under any of applicable local export control laws and regulations, such
products must not be exported without obtaining the export license from theauthorities
concerned
in
accordance with the above law.
■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise,
without the prior written permission of MSKSEMI Semiconductor.
■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not
guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable,
but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or
other rightsof third parties.
■ Any and all information described or contained herein are subject to change without notice due to
product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the
MSKSEMI Semiconductor productthat you intend to use.
www.msksemi.com
