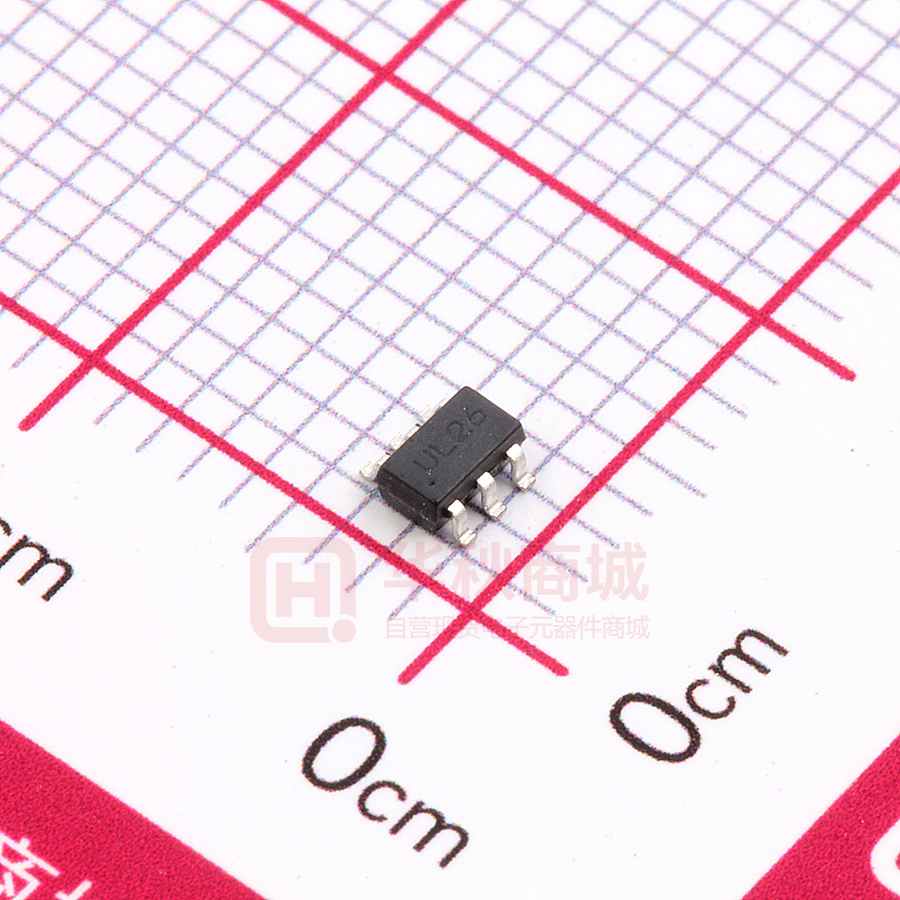

MSUSBLC6-2SC6

www.msksemi.com MSUSBLC6-2SC6 Semiconductor Compiance Features Ultra low leakage: nA level Operating voltage: 5V Low clamping voltage Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns) –IEC61000-4-5 (Lightning) 6A (8/20μs) RoHS Compliant Applications USB 2.0 interface 10/100 Ethernet Personal digital assistants (PDA's) Notebooks, Desktops and Servers Portable instrumentation Digital cameras SOT23-6L USBLC6-2SC6 I/O1 1 1 6 I/O1 GND 2 5 VBUS I/O2 3 4 I/O2 Mechanical Characteristics Package: SOT23-6 Lead Finish: Matte Tin UL Flammability Classification Rating 94V-0 Pb-Free, Halogen Free, RoHS/WEEE Compliant Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 150 W Peak Pulse Current (8/20µs) Ipp 6 A ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range VESD ±30 ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C www.msksemi.com MSUSBLC6-2SC6 Semiconductor Compiance Electrical Characteristics (TA=25°C unless otherwise specified) Symbol Parameter Reverse stand-off voltage Test Condition Typ Min VRWM Reverse breakdown voltage 6 Max Unit 5 V 9 V VBR IBR=1mA Reverse leakage current IR VR=5V 0.1 ȝA Clamping voltage (tp=8/20ȝs) VC IPP=1A 10 V Clamping voltage (tp=8/20ȝs) VC IPP=6A 15 V CJ 0Vdc,f=1MHz Between I/O pins and GND 0.8 1 pF CJ 0Vdc,f=1MHz I/O to I/O 0.35 0.4 pF Junction capacitance Typical Characteristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 100 Peak Value IPP 80 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Percent of Peak Pulse Current % tr 60 40 td=t IPP/2 20 0 0 5 10 15 20 25 90% 10% tr = 0.7~1ns Time (ns) 30ns 30 60ns t - Time ( s) Fig3. Power Derating Curve 110 100 % of Rated Power IPP - Peak Pulse Current - % of IPP 120 90 80 70 60 50 40 30 20 10 0 0 25 50 75 100 125 150 Ambient Temperature –TA(ºC) www.msksemi.com MSUSBLC6-2SC6 Semiconductor Compiance PACKAGE MECHANICAL DATA Symbol A A1 A2 b c D E1 E e e1 L θ Dimensions In Millimeters Min. Max. 1.050 1.250 0.000 0.100 1.050 1.150 0.300 0.500 0.100 0.200 2.820 3.020 1.500 1.700 2.650 2.950 0.950(BSC) 1.800 2.000 0.300 0.600 0° 8° Dimensions In Inches Min. Max. 0.041 0.049 0.000 0.004 0.041 0.045 0.012 0.020 0.004 0.008 0.111 0.119 0.059 0.067 0.104 0.116 0.037(BSC) 0.071 0.079 0.012 0.024 0° 8° REEL SPECIFICATION P/N MSUSBLC6-2SC6 PKG SOT-23-6 QTY 3000 www.msksemi.com MSUSBLC6-2SC6 Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
