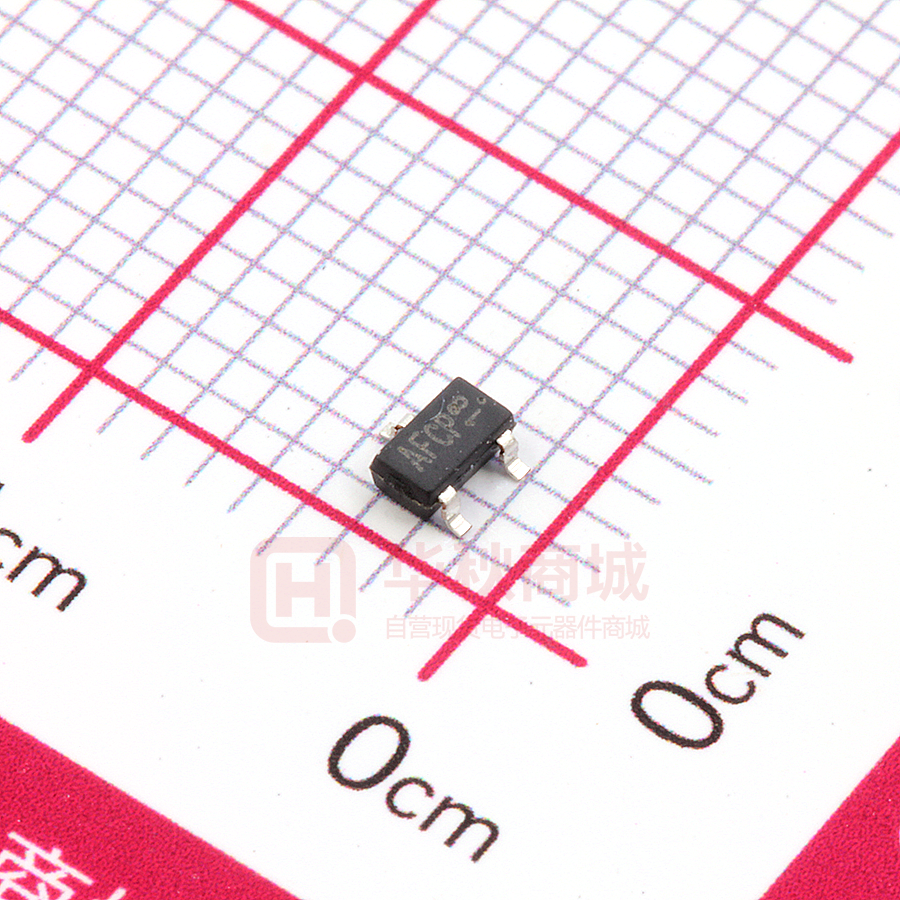

WPM2015-MS

www.msksemi.com WPM2015-MS Semiconductor Compiance APPLICATION Load Switch for Portable Devices  DC/DC Converter  FEATURE  TrenchFET Power MOSFET V(BR)DSS -20 V RDS(on)MAX 90 mΩ@-4.5V 110 mΩ@-2.5V ID -3 A 1. GATE 2. SOURCE 3. DRAIN SOT-23-3L Maximum ratings (Ta=25℃ unless otherwise noted) Parameter Symbol Value Drain-Source Voltage VDS -20 Gate-Source Voltage VGS ±8 Continuous Drain Current ID -3 Pulsed Drain Current IDM -10 Continuous Source-Drain Diode Current IS -0.72 Maximum Power Dissipation PD 0.4 W RθJA 312.5 ℃/W Junction Temperature TJ 150 Storage Temperature Tstg -55 ~+150 Thermal Resistance from Junction to Ambient(t ≤5s) Unit V A ℃ www.msksemi.com WPM2015-MS Semiconductor Compiance Ta=25 ℃ unless otherwise specified Parameter Symbol Test Condition Min Typ Max Units Static Drain-source breakdown voltage V(BR)DSS VGS = 0V, ID =-250µA -20 Gate-source threshold voltage VGS(th) VDS =VGS, ID =-250µA -0.4 V -1 Gate-source leakage IGSS VDS =0V, VGS =±8V ±100 nA Zero gate voltage drain current IDSS VDS =-20V, VGS =0V -1 µA Drain-source on-state resistance a RDS(on) Forward transconductance a Dynamic gfs VGS =-4.5V, ID =-2.8A 0.080 0.90 VGS =-2.5V, ID =-2.0A 0.90 0.110 VDS =-5V, ID =-2.8A 6.5 Ω S b Input capacitance Ciss Output capacitance Coss Reverse transfer capacitance Crss Total gate charge Qg Gate-source charge Qgs Gate-drain charge Qgd Gate resistance Rg Turn-on delay time td(on) Rise time tr Turn-off delay time td(off) Fall time tf 405 VDS =-10V,VGS =0V,f =1MHz pF 75 55 VDS =-10V,VGS =-4.5V,ID =-3A VDS =-10V,VGS =-2.5V,ID =-3A 5.5 10 3.3 6 nC 0.7 1.3 f =1MHz VDD=-10V, RL=10Ω, ID =-1A, VGEN =-4.5V,Rg=1Ω 6.0 Ω 11 20 35 60 30 50 10 20 ns Drain-source body diode characteristics Continuous source-drain diode current Pulse diode forward current Body diode voltage a IS -1.3 TC=25℃ -10 ISM VSD A IS=-0.7A -0.8 -1.2 V www.msksemi.com WPM2015-MS Semiconductor Compiance PACKAGE MECHANICAL DATA Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° REEL SPECIFICATION P/N WPM2015-MS PKG SOT-23-3 QTY 3000 www.msksemi.com WPM2015-MS Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
