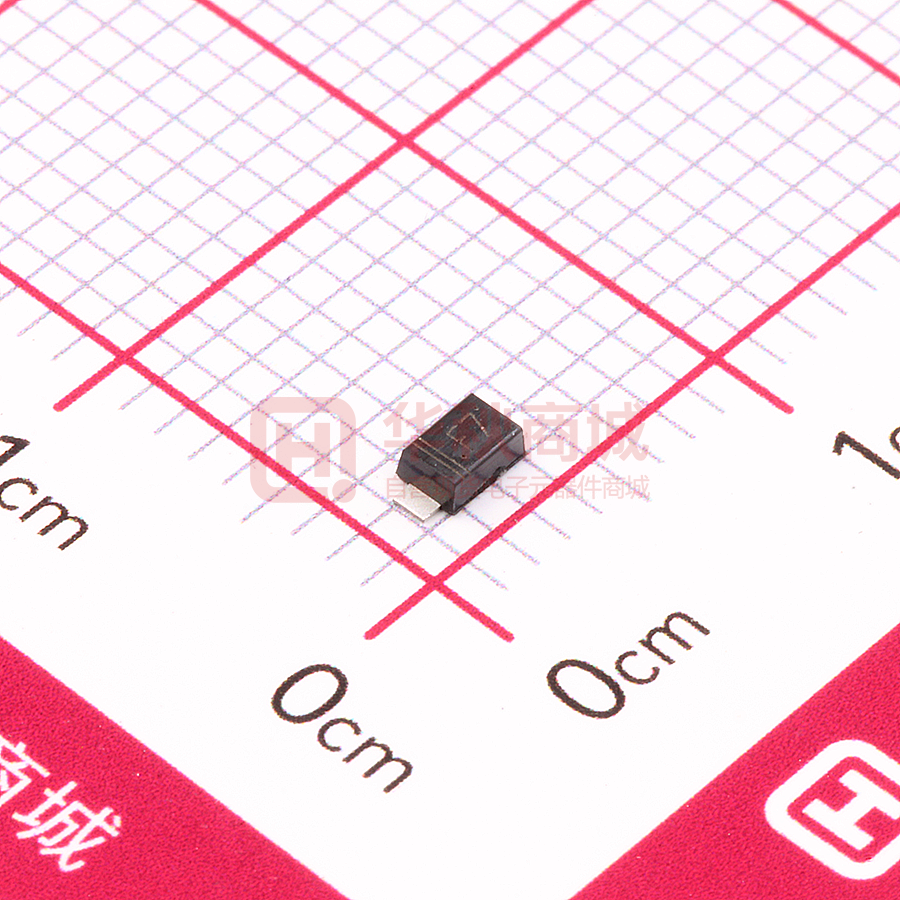

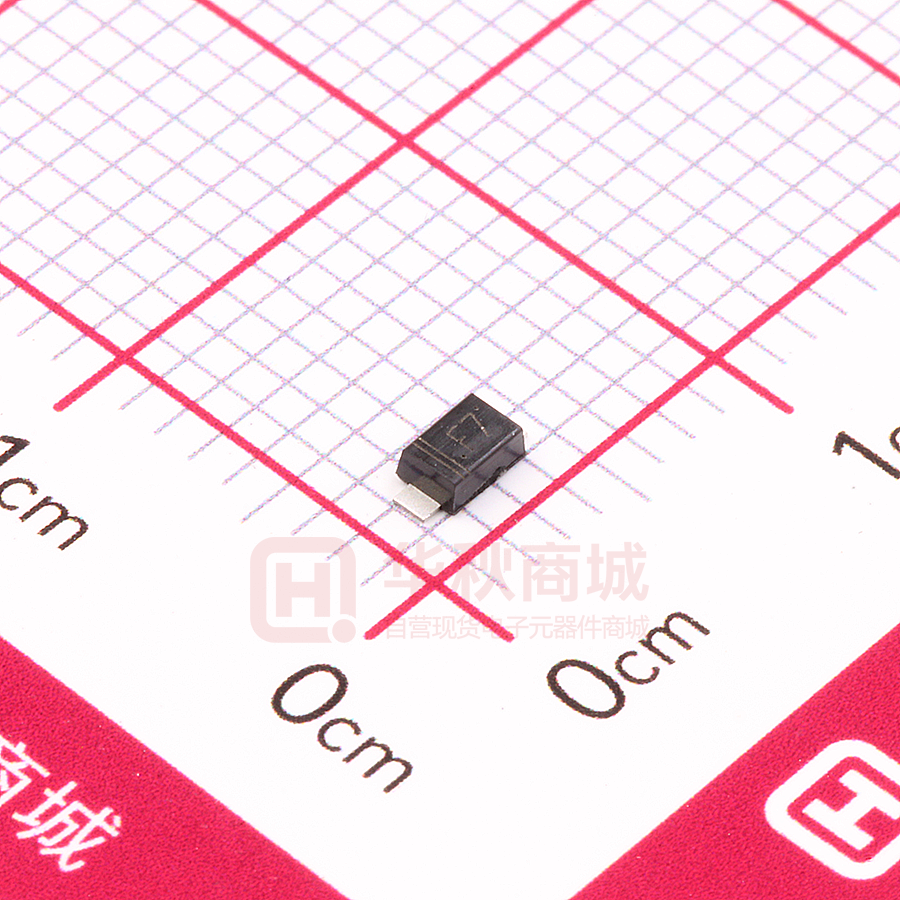

FR107 F7

www.msksemi.com FR101 THRU FR107 Semiconductor FEATURES ▪ For surface mounted applications ▪ Low profile package ▪ Glass Passivated Chip Juntion ▪ Ideal for automated placement ▪ Fast reverse recovery time Compiance PINNING PIN ▪ Lead free in comply with EU RoHS 2011/65/EU directives DESCRIPTION 1 Cathode 2 Anode 1 2 MECHANICAL DATA ▪ Case: SOD-123FL ▪ Terminals: Solderable per MIL-STD-750, Method 2026 SOD-123FL ▪ Approx. Weight:15mg 0.00048oz Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols Parameter FR101 F1 FR102 F2 FR103 F3 FR104 F4 FR105 F5 FR106 F6 FR107 F7 Units Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage VDC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current at Ta = 65 °C IF(AV) 1.0 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) IFSM 30 A Maximum Instantaneous Forward Voltage at 1 A VF 1.3 V Maximum DC Reverse Current at Rated DC Blocking Voltage IR 1 50 μA Ta = 25 °C Ta =125 °C ns Maximum Reverse Recovery Time 1） trr Typical Junction Capacitance 2） Cj 15 pF Tj, Tstg -55 ~ +150 °C Operating and Storage Temperature Range 1） 2） 150 250 500 Measured with IF = 0.5 A, IR = 1 A, Irr = 0.25 A Measured at 1MHz and applied reverse voltage of 4V D.C www.msksemi.com FR101 THRU FR107 Semiconductor Fig.1 Forward Current Derating Curve Fig.2 Typical Reverse Characteristics Instaneous Reverse Current（μA） Average Forward Current (A) 1.2 1.0 0.8 0.6 0.4 Single phase half-wave 60 Hz resistive or inductive load 0.2 0.0 25 50 75 100 125 150 175 100 TJ=125°C 10 1.0 0.1 Ambient Temperature (°C) 00 20 40 60 80 100 120 140 Fig.4 Typical Junction Capacitance 100 Junction Capacitance (pF) 10 Instaneous Forward Current (A) TJ=25°C percent of Rated Peak Reverse Voltage (%) Fig.3 Typical Instaneous Forward Characteristics TJ=25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 Compiance 0.0 0.5 1.0 1.5 2.0 2.5 Instaneous Forward Voltage (V) 10 TJ=25°C 1 0.1 1.0 10 100 Reverse Voltage (V) Peak Forward Surage Current (A) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 30 25 20 15 10 8.3 ms Single Half Sine Wave (JEDEC Method) 05 00 1 10 100 Number of Cycles www.msksemi.com FR101 THRU FR107 Semiconductor Compiance 1.8± 0.3 0.95 ±0.25 PACKAGE MECHANICAL DATA 1.15±0.25 0.05-0.30 2.75 ±0.25 0.6±0.3 3.7 ±0.30 Dimensions in millimeters 1.4 2.85 1.2 REEL SPECIFICATION P/N FR101 THRU FR107 PKG SOD-123FL QTY 3000 www.msksemi.com FR101 THRU FR107 Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest before using any MSKSEMI Semiconductor products described or contained herein in such applications. you ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, products must not be exported without obtaining the export license from theauthorities concerned such in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
