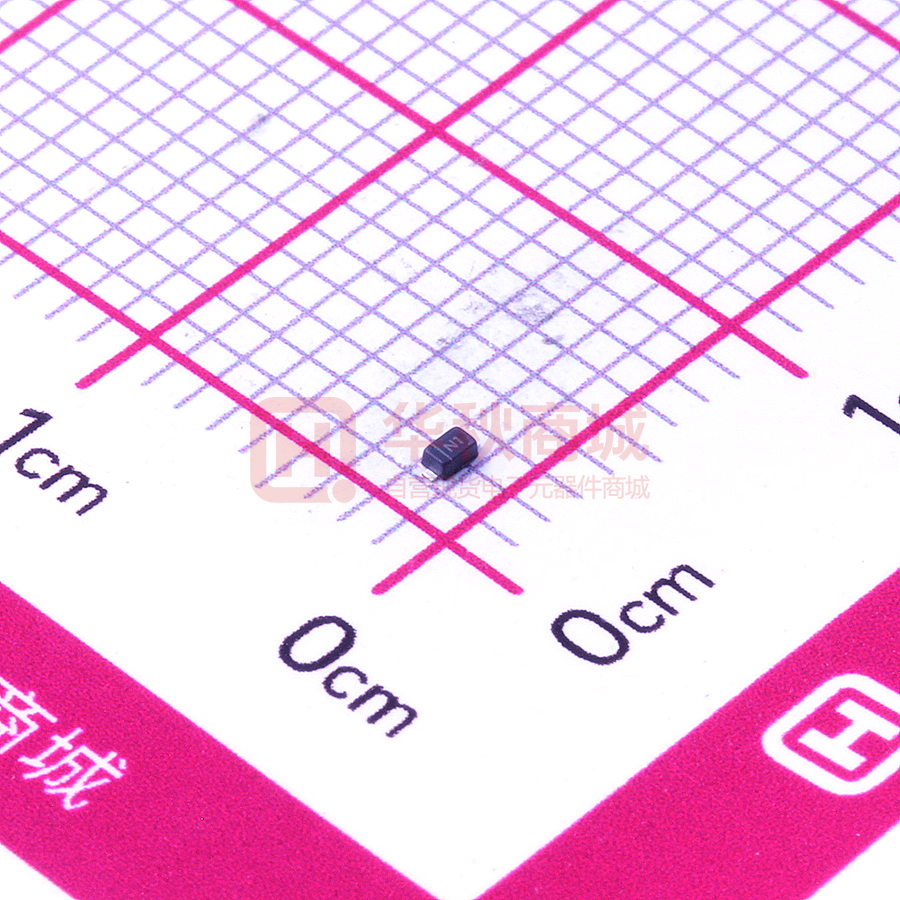

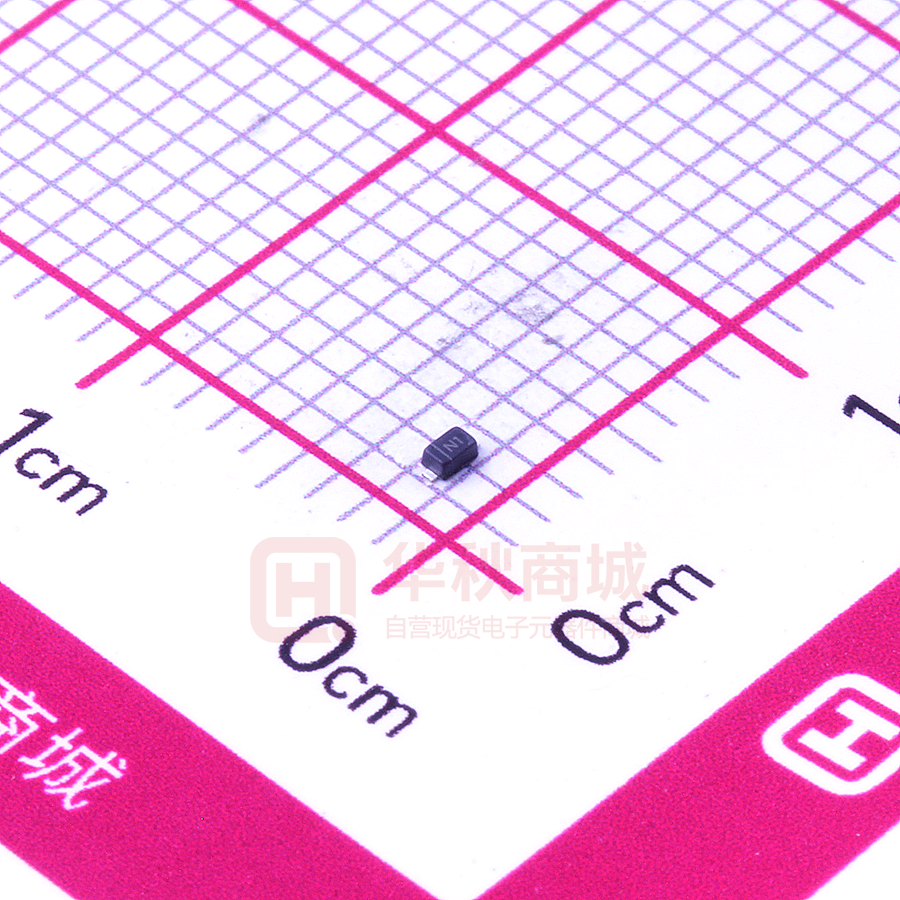

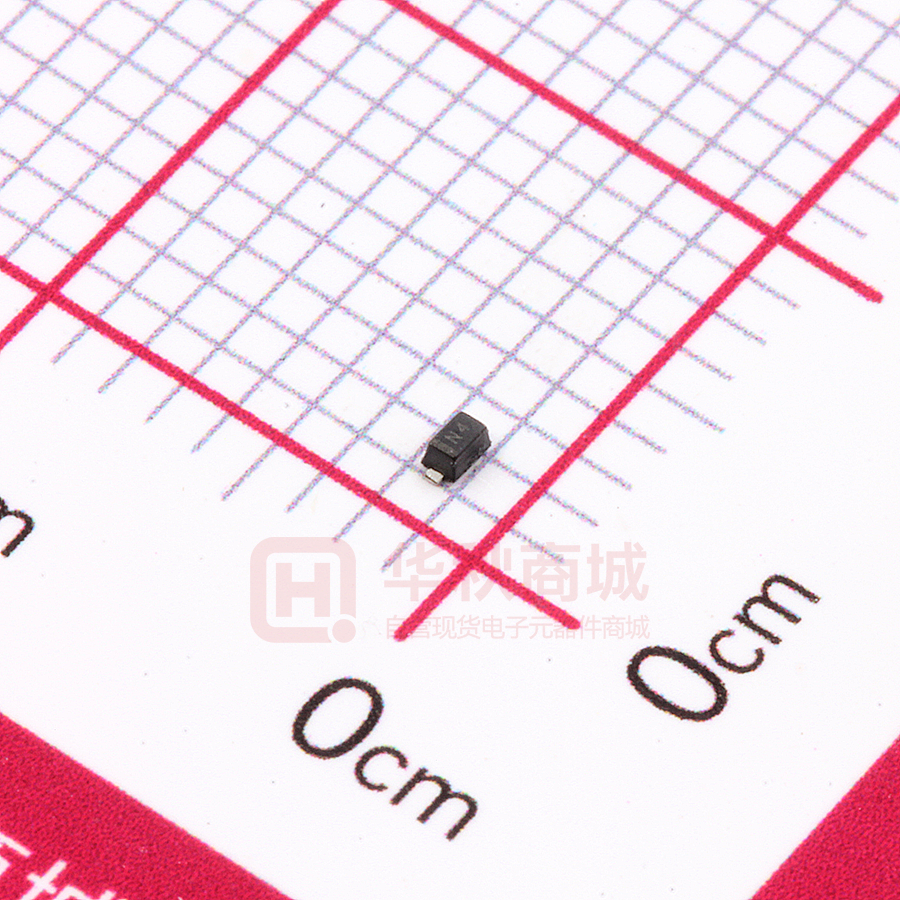

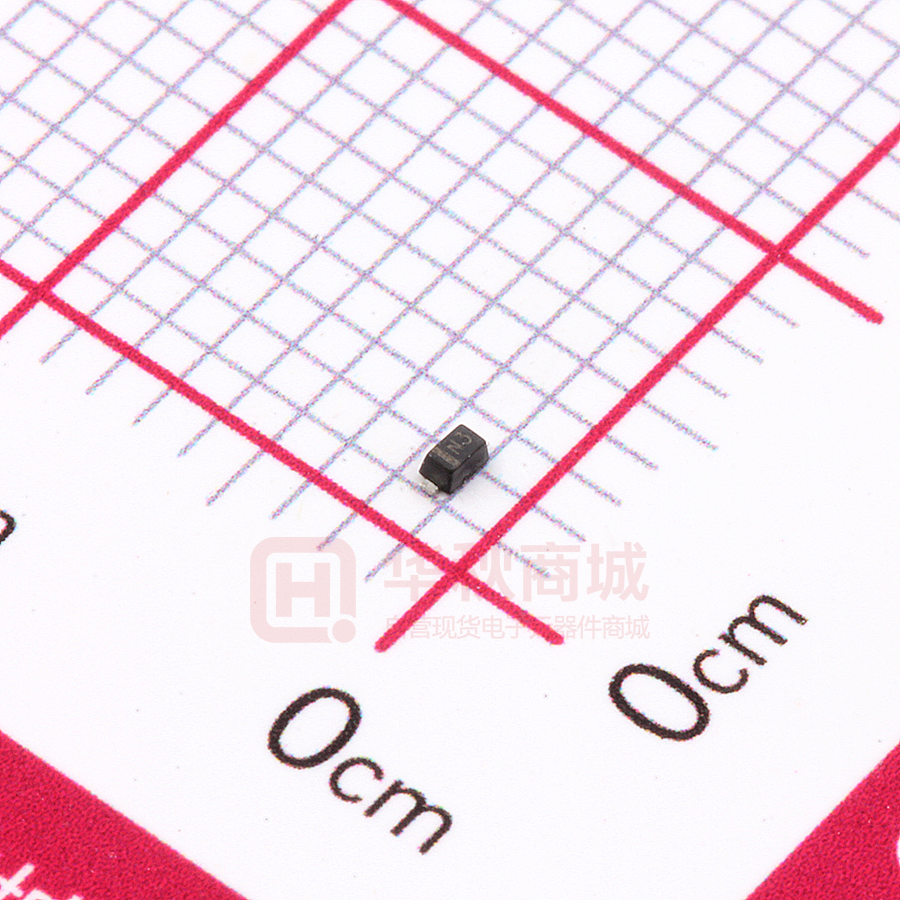

PESD3V3S1UB

www.msksemi.com PESDXXXS1UB Semiconductor Compiance Features   250 Watts peak pulse power (tp = 8/20μs) Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)    Protects One Power or I/O Port Low operating and clamping voltages Solid-state silicon avalanche technology SOD-523 Applications       Notebooks, Desktops, Servers and Video Graphics Cards USB Power & Data Line Protection Monitors and Flat Panel Displays I²C Bus Protection Portable Instrumentation Set Top Box Maximum Rating @ Ta=25℃ unless otherwise specified Symbol Parameter Ratings Units 250 Watts PPK Peak Pulse Power (tp = 8/20μs) TL Lead Soldering Temperature 260(10sec.) ℃ TJ Operating Temperature -55 to +125 ℃ Storage Temperature -55 to +150 ℃ TSTG Electrical Characteristics@ Ta=25℃ unless otherwise VRWM @IR P/N V VBR@ImA VC@1 VC@IPP µA V V V MAX MIN MAX MAX CJ A pF MAX PESD3V3S1UB 3.3 1 4 9.8 13 12 120 PESD5V0S1UB 5 1 5.8 11.8 15 10 100 PESD7V0S1UB 7 1 7.5 14 19 8 80 PESD12VS1UB 12 1 13.3 19 25 6 70 PESD15VS1UB 15 1 16.5 24 33 5 50 PESD24VS1UB 24 1 26.1 44 54 3 30 PESD36VS1UB 36 1 38.2 62 80 3 30 www.msksemi.com PESDXXXS1UB Semiconductor Compiance Typical Characteristics@ Ta=25℃ unless otherwise specified Soldering Parameters www.msksemi.com PESDXXXS1UB Semiconductor PACKAGE MECHANICAL DATA 6\PERO A A1 b c D E E1 E2 L  'LPHQVLRQV,Q0LOOLPHWHUV 0LQ 0D[ 0.510 0.770 0.500 0.700 0.250 0.350 0.080 0.150 0.750 0.850 1.100 1.300 1.500 1.700 0.200 REF 0.010 0.070 7° REF 'LPHQVLRQV,Q,QFKHV 0LQ 0D[ 0.020 0.031 0.020 0.028 0.010 0.014 0.003 0.006 0.030 0.033 0.043 0.051 0.059 0.067 0.008 REF 0.001 0.003 7° REF REEL SPECIFICATION P/N PESDXXXS1UB PKG SOD-523 QTY 3000 Compiance PESDXXXS1UB Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
