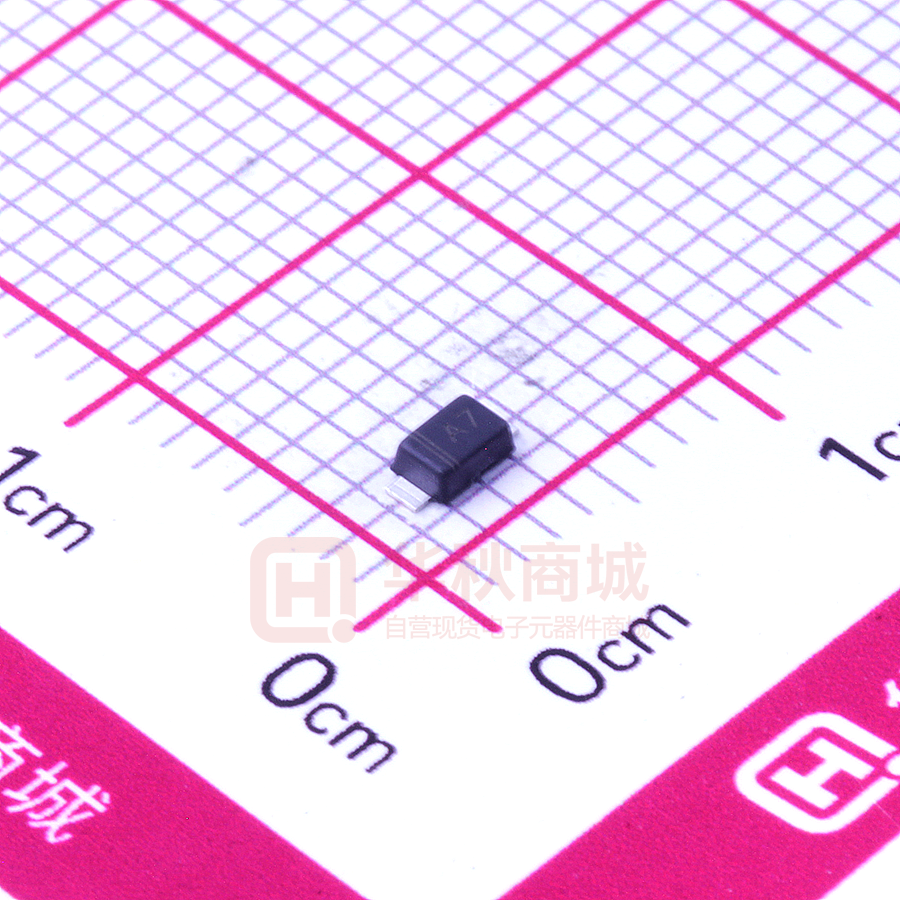

1N4007 A7

1N4007 A7

  • 厂商:

    MSKSEMI(美森科)

  • 封装:

    SOD-123FL-2

  • 描述:

    IAV=1A IR=10uA@1kV VF=1V@1A VRRM=1kV SOD-123FL 二极管-通用ROHS

  • 详情介绍
  • 数据手册
  • 价格&库存
1N4007 A7 数据手册
www.msksemi.com 1N4001 THRU 1N4007 Semiconductor FEATURES Compiance MECHANICAL DATA Glass passivated device Ideal for surface mouted applications Low reverse leakage Metallurgically bonded construction High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension Case: JEDEC SOD-123FL molded plastic body over passivated chip Terminals: Solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.0007 ounce, 0.02 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. CaDtD M aloCgatalog Number Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TA=65 C (NOTE 1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) TL=25 C Maximum instantaneous forward voltage at 1.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=125 C Typical junction capacitance (NOTE 2) Typical thermal resistance (NOTE 3) Operating junction and storage temperature range SYMBOLS VRRM VRMS VDC 1N4001 1N4002 A1 A2 50 35 50 100 70 100 1N4003 1N4004 A3 A4 200 140 200 400 280 400 1N4005 A5 600 420 600 1N4006 A6 800 560 800 1N4007 A7 1000 700 1000 UNITS VOLTS VOLTS VOLTS I(AV) 1.0 Amp IFSM 25.0 Amps VF 1.0 Volts IR 10.0 50.0 A CJ RJA TJ,TSTG 4 180 -55 to +150 pF K/W C Note: 1.Averaged over any 20ms period. 2. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3. Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted www.msksemi.com 1N4001 THRU 1N4007 Semiconductor FIG.2 -- TYPICALJUNCTIONCAPACITANCE 1000 10 TJ = 25°C TJ = 100°C 8 7 6 5 4 3 2 1 100 600 700 800 900 1000 0 1100 INSTANTANEOUSFORWARDVOLTAGE,mV 100 TJ = 150C 10 TJ = 125C TJ = 100C 1 TJ = 75C TJ = 50C 0.1 TJ = 25C 0.01 0 100 200 300 400 500 600 700 800 900 INSTANTANEOUSREVERSEVOLTAGE,V 0 5 10 15 20 25 30 35 40 REVERSE VOLTAGE,VOLTS FIG.4 -- FORWARDDERATINGCURVE AVERAGE FORWARD CURRENT, AMPERES FIG.3 --TYPICAL INSTANTANEOUS REVERSE CHARACTERISTICS  AMPERES 9 CAPACITANCE, pF TJ = 150°C m AMPERES INSTANTANEOUS FORWARD CURRENT FIG.1 --TYPICALFORWARDCHARACTERISTIC INSTANTANEOUS REVERSE CURRENT Compiance 1.2 Resistive or Inductive Load 1.0 0.8 0.6 0.4 0.2 0 3.0 x 3.0mm 40 µm Thick Copper Pad Areas 0 20 40 60 80 100 120 140 160 AMBIENT TEMPERATUR E, www.msksemi.com 1N4001 THRU 1N4007 Semiconductor Compiance 1.8± 0.3 0.95 ±0.25 PACKAGE MECHANICAL DATA 1.15±0.25 0.05-0.30 2.75 ±0.25 0.6±0.3 3.7 ±0.30 Dimensions in millimeters 1.4 2.85 1.2 REEL SPECIFICATION P/N 1N4001 THRU 1N4007 PKG SOD-123FL QTY 3000 www.msksemi.com 1N4001 THRU 1N4007 Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
1N4007 A7
物料型号:1N4001至1N4007系列整流二极管。

器件简介:这些二极管是玻璃钝化器件,采用JEDEC SOD-123FL塑封封装,适合表面贴装应用。

引脚分配:文档中没有明确指出具体的引脚分配,但通常二极管有一个阳极和一个阴极。

参数特性:包括最大重复峰值反向电压(VRRM)、最大有效值电压(VRMS)、最大直流阻断电压(Voc)、最大平均正向整流电流(I(AV))、峰值正向浪涌电流(IFsM)、最大瞬态正向电压(VF)等。

功能详解:文档提供了典型正向特性图、典型瞬态正向电流和反向电流的图表,以及正向电压降额曲线。

应用信息:文档指出这些二极管适用于各种电路,但不适合需要极高可靠性的应用,如生命维持系统、飞机控制系统等。

封装信息:提供了SOD-123FL封装的机械尺寸数据和建议的焊盘布局。
1N4007 A7 价格&库存

很抱歉,暂时无法提供与“1N4007 A7”相匹配的价格&库存,您可以联系我们找货

免费人工找货
1N4007 A7
  •  国内价格
  • 20+0.01830
  • 200+0.01710
  • 500+0.01590
  • 1000+0.01470
  • 3000+0.01410
  • 6000+0.01326

库存:1015
