TL431
Semiconductor
Compiance
Features:
• Programmable output Voltage to 36 V
• Low dynamic output impedance
• Sink current capability of 1 to 100 mA
• Low output noise voltage
• Fast turn on response

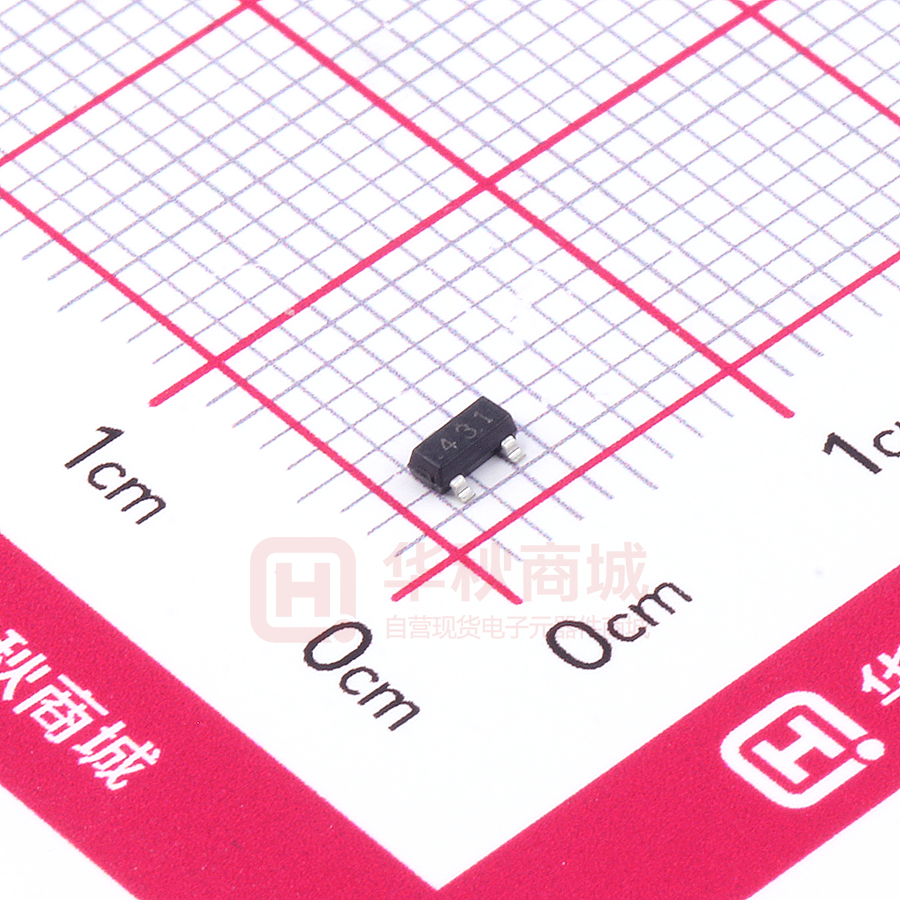

SOT-23
1. Reference 2.Cathode 3. Anode
Absolute Maximum Ratings (Ta = 25 OC, unless otherwise noted.)
Parameter
Symbol
Value
Cathode Voltage
VKA
36
Cathode Current Range (Continuous)
IKA
- 100 to + 150
mA
Reference Input Current Range
IREF
- 0.05 to + 10
mA
Power Dissipation
PD
350
mW
Operating Temperature Range
Topr
- 25 to + 85
O
Tj
150
O
Tstg
- 65 to + 150
O
Junction Temperature
Storage Temperature Range
Unit
V
C
C
C
Recmmended Operating Conditions
Parameter
Symbol
Min.
Max.
Unit
Cathode Voltage
VKA
VREF
36
V
Cathode Current
IKA
1
100
mA
Characteristics at Ta = 25 OC
Parameter
Reference Input Voltage
at VKA = VREF, IKA = 10 mA
MMTL431
MMTL431A
Deviation of Reference Input Voltage Over Temperatue
at VKA = VREF, IKA = 10 mA, - 25 OC ≤ Ta ≤ + 85 OC
Ratio of Change in Reference Input Voltage to the Change
in Cathode Voltage
at IKA = 10 mA
∆VKA = 10 V to VREF
∆VKA = 36 V to 10 V
Symbol
Min.
Typ.
Max.
Unit
VREF
2.44
2.48
2.495
2.495
2.55
2.51
V
-
4.5
17
mV
-
-1.0
-0.5
-2.7
-2
-
1.5
4
μA
-
0.4
1.2
μA
-
0.45
1
mA
-
0.05
1
μA
-
0.15
0.5
Ω
∆VREF
/∆T
∆VREF/∆
VKA
Reference Input Current
IREF
at IKA = 10 mA, R1 = 10 KΩ, R2 = ∞
Deviation of Reference Input Current Over Full Temperatue
∆IREF/∆T
at IKA = 10 mA, R1 = 10 KΩ, R2 = ∞, - 25 OC ≤ Ta ≤ + 85 OC
Minimum Cathode Current for Regulation
IKA(min)
at VKA = VREF
Off-Stage Cathode Current
IKA(OFF)
at VKA = 36 V, VREF = 0
Dynamic Impedance
ZKA
at VKA = VREF, IKA = 1 to 100 mA, f ≤ 1 KHz
mV/V
www.msksemi.com
TL431
Semiconductor
Compiance
www.msksemi.com
TL431
Semiconductor
Compiance
PACKAGE MECHANICAL DATA
Symbol
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
Dimensions In Millimeters
Min
Max
0.900
1.150
0.000
0.100
0.900
1.050
0.300
0.500
0.080
0.150
2.800
3.000
1.200
1.400
2.250
2.550
0.950 TYP
1.800
2.000
0.550 REF
0.300
0.500
0°
8°
Dimensions In Inches
Min
Max
0.035
0.045
0.000
0.004
0.035
0.041
0.012
0.020
0.003
0.006
0.110
0.118
0.047
0.055
0.089
0.100
0.037 TYP
0.071
0.079
0.022 REF
0.012
0.020
0°
8°
REEL SPECIFICATION
P/N
PKG
QTY
TL431
SOT-23
3000
www.msksemi.com
TL431
Semiconductor
Compiance
Attention
■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications
that can handle applications that require extremely high levels of reliability, such as life-support systems,
aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you
before using any MSKSEMI Semiconductor products described or contained herein in such applications.
■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products
at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described
orcontained herein.
■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the
performance, characteristics, and functions of the described products in the independent state, and are not
guarantees of the performance, characteristics, and functions of the described products as mounted in the
customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent
device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment.
■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all
semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to
accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause
damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents
or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention
circuitsfor safedesign, redundant design, and structural design.
■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described
or contained herein are controlled under any of applicable local export control laws and regulations, such
products must not be exported without obtaining the export license from theauthorities concerned in
accordance with the above law.
■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise,
without the prior written permission of MSKSEMI Semiconductor.
■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not
guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and
reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property
rights or other rightsof third parties.
■ Any and all information described or contained herein are subject to change without notice due to
product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the
MSKSEMI Semiconductor productthat you intend to use.
