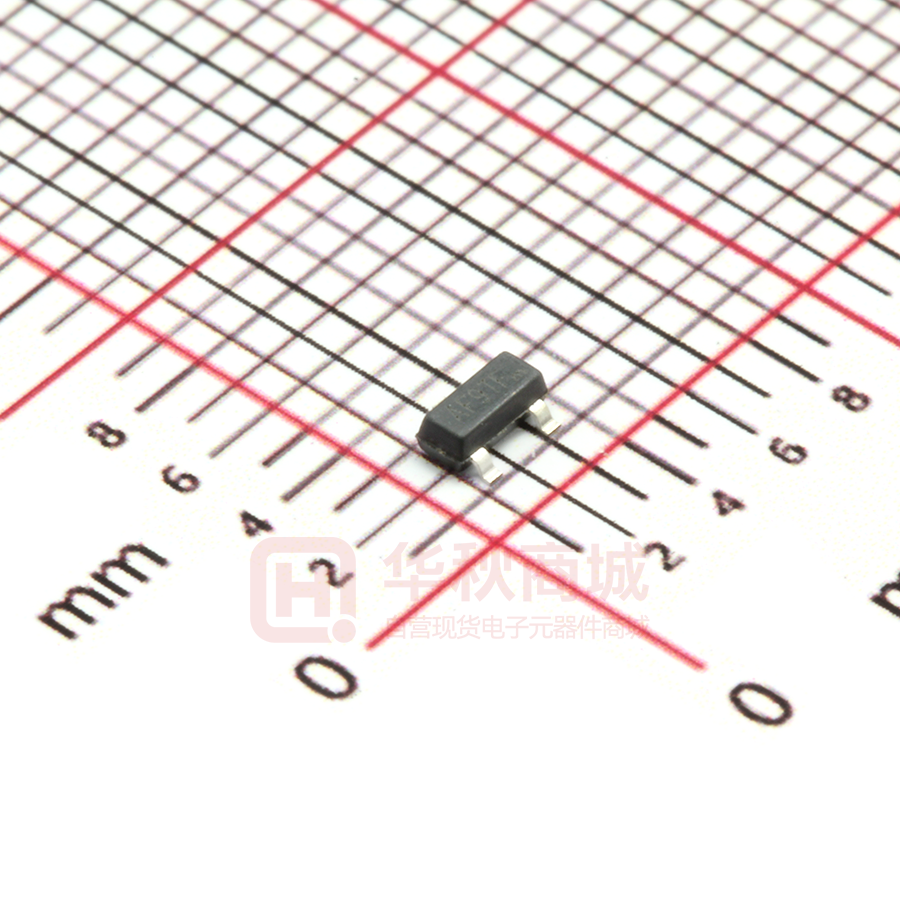

AO3415AI-MS

www.msksemi.com AO3415AI-MS Semiconductor Compiance D VDS -20V ID (at VGS=-4.5V) -4A RDS(ON) (at VGS= -4.5V) < 41m RDS(ON) (at VGS= -2.5V) < 53m RDS(ON) (at VGS= -1.8V) < 65m G S ESD protected Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol VDS Drain-Source Voltage VGS Gate-Source Voltage TA=25°C Continuous Drain Current ±8 V -4 -3.5 IDM Pulsed Drain Current C TA=25°C Power Dissipation Units V ID TA=70°C B Maximum -20 Junction and Storage Temperature Range Thermal Characteristics Parameter Maximum Junction-to-Ambient A Maximum Junction-to-Ambient A D Maximum Junction-to-Lead 1.5 PD TA=70°C Symbol Steady-State Steady-State W 1 TJ, TSTG t ≤ 10s A -30 RJA RJL -55 to 150 Typ 65 85 43 °C Max 80 100 52 Units °C/W °C/W °C/W Electrical Characteristics (TJ=25°C unless otherwise noted) Symbol Parameter STATIC PARAMETERS BVDSS Drain-Source Breakdown Voltage IDSS Zero Gate Voltage Drain Current IGSS Conditions Min ID=-250A, VGS=0V -20 -1 TJ=55°C -5 Gate-Body leakage current VDS=0V, VGS= ±8V Gate Threshold Voltage VDS=VGS, ID=-250 -0.3 ID(ON) On state drain current VGS=-4.5V, VDS=-5V -30 -0.57 -0.9 V 34 41 49 59 VGS=-2.5V, ID=-4A 42 53 m VGS=-1.8V, ID=-2A 52 65 m VGS=-1.5V, ID=-1A 61 gFS Forward Transconductance VDS=-5V, ID=-4A VSD Diode Forward Voltage IS=-1A,VGS=0V IS Maximum Body-Diode Continuous Current DYNAMIC PARAMETERS Ciss Input Capacitance Output Capacitance Crss Reverse Transfer Capacitance Rg Gate resistance SWITCHING PARAMETERS Qg Total Gate Charge Qgs Gate Source Charge VGS=0V, VDS=-10V, f=1MHz VGS=0V, VDS=0V, f=1MHz VGS=-4.5V, VDS=-10V, ID=-4A A 20 -0.64 S -1 V -2 A 600 751 905 pF 80 115 150 pF 48 80 115 pF 6 13 20  7.4 9.3 11 nC 0.8 1 1.2 nC 1.3 2.2 3.1 nC Gate Drain Charge tD(on) Turn-On DelayTime tr tD(off) Turn-On Rise Time tf trr Turn-Off Fall Time IF=-4A, dI/dt=500A/s 20 26 32 Qrr Body Diode Reverse Recovery Charge IF=-4A, dI/dt=500A/s 40 51 62 Body Diode Reverse Recovery Time m m Qgd Turn-Off DelayTime A A TJ=125°C Coss Units ±10 VGS=-4.5V, ID=-4A Static Drain-Source On-Resistance Max V VDS=-20V, VGS=0V VGS(th) RDS(ON) Typ VGS=-4.5V, VDS=-10V, RL=2.5, RGEN=3 13 ns 9 ns 19 ns 29 ns ns nC www.msksemi.com AO3415AI-MS Semiconductor Compiance PACKAGE MECHANICAL DATA Symbol A A1 A2 b c D E1 E e e1 L 0 Dimensions In Millimeters Min. Max. 1.050 1.250 0.000 0.100 1.050 1.150 0.300 0.500 0.100 0.200 2.820 3.020 1.500 1.700 2.650 2.950 0.950(BSC) 1.800 2.000 0.300 0.600 0° 8° Dimensions In Inches Min. Max. 0.041 0.049 0.000 0.004 0.041 0.045 0.012 0.020 0.004 0.008 0.111 0.119 0.059 0.067 0.104 0.116 0.037(BSC) 0.071 0.079 0.012 0.024 0° 8° REEL SPECIFICATION P/N AO3415AI-MS PKG SOT-23 QTY 3000 www.msksemi.com AO3415AI-MS Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
