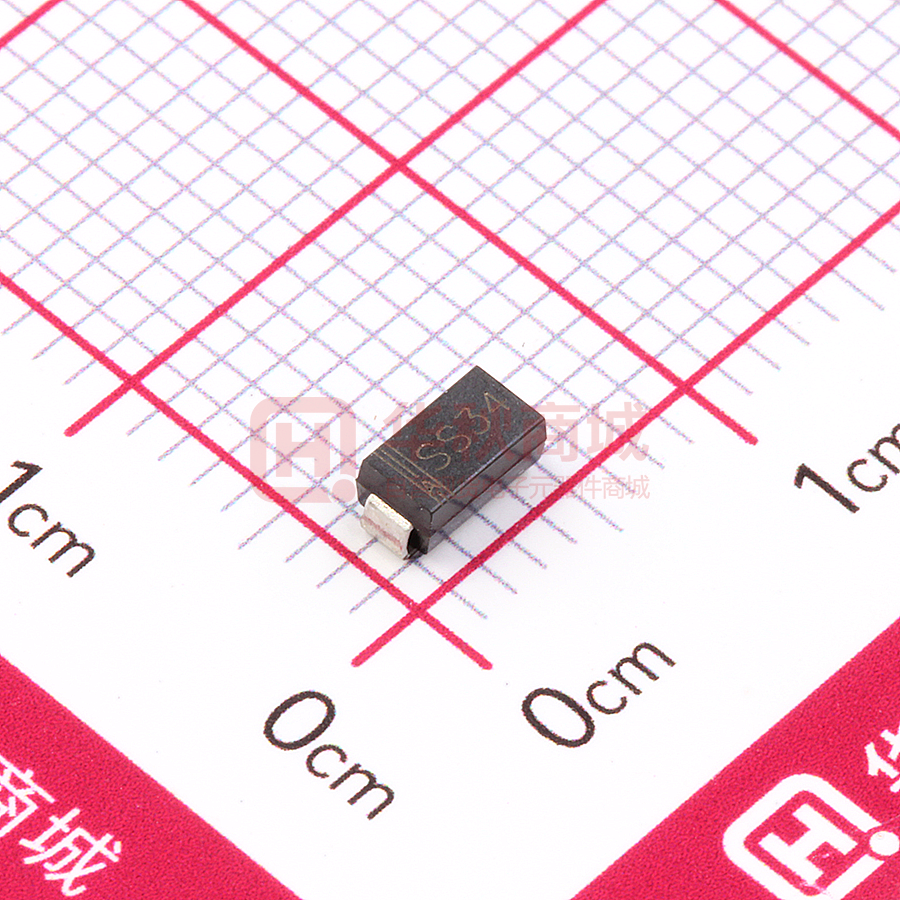

SS34-MS

www.msksemi.com SS32-MS THRU SS310-MS Semiconductor FEATURES Compiance MECHANICAL DATA The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 For surface mounted applications Low reverse leakage Built-in strain relief,ideal for automated placement High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds at terminals Case: DO-214AC Terminals: leads solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.002 ounce, 0.07 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. SYMBOLS Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL(see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 3.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction temperature range Storage temperature range VRRM VRMS VDC SS32-MS SS34-MS 20 14 20 SS36-MS SS310-MS 40 28 40 60 42 60 100 70 100 UNITS VOLTS VOLTS VOLTS I(AV) 3.0 Amps IFSM 100.0 Amps VF 0.55 IR CJ RJA TJ, TSTG 0.70 20 0.85 0.5 500 10 300 55.0 -50 to +125 -50 to +150 -50 to +150 Volts mA pF C/W C C Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas www.msksemi.com SS32-MS THRU SS310-MS FIG. 1- FORWARD CURRENT DERATING CURVE 3.0 2.4 Single Phase Half Wave 60Hz Resistive or inductive Load 1.8 1.2 SS32-SS36 SS38-SS310 0.6 0 0 25 50 75 100 125 150 175 100 80 60 40 20 0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 NUMBER OF CYCLES AT 60 Hz FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MILLIAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 4-TYPICAL REVERSE CHARACTERISTICS 100 TJ=25 C 10.0 1 SS32-SS34 SS35-SS36 SS38-SS310 0.1 10 TJ=100 C 1 TJ=75 C 0.1 0.01 TJ=25 C 0.001 0.01 100 10 AMBIENT TEMPERATURE, C 50 Compiance FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Semiconductor 0 20 40 60 80 100 PERCENT OF PEAK REVERSE VOLTAGE,% 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF 2000 1000 TJ=25 C 100 SS32-SS34 SS35-SS310 10 0.1 1.0 10 REVERSE VOLTAGE,VOLTS TRANSIENT THERMAL IMPEDANCE, C/W INSTANTANEOUS FORWARD VOLEAGE, VOLTS FIG. 6-TYPICAL TRANSIENTTHERMALIMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 100 t,PULSE DURATION,sec. www.msksemi.com SS32-MS THRU SS310-MS Semiconductor PACKAGE MECHANICAL DATA A Dimensions B Ref. Min. Max. A 4.25 B Inches Min. Max. 4.65 0.167 0.183 2.50 2.90 0.098 0.114 C 1.35 1.65 0.053 0.065 D 0.76 1.52 0.030 0.060 E E 4.93 5.28 0.194 0.208 F 0.051 0.203 0.002 0.008 J K G 0.15 0.31 0.006 0.012 H 1.98 2.41 0.078 0.095 J 6.50 H F G L D Millimeters 2.30 K DO-214AC (SMA) L 0.256 1.70 0.090 0.067 REEL SPECIFICATION P/N SS32-MS THRU SS310-MS PKG QTY SMA 2000 Compiance SS32-MS THRU SS310-MS Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
