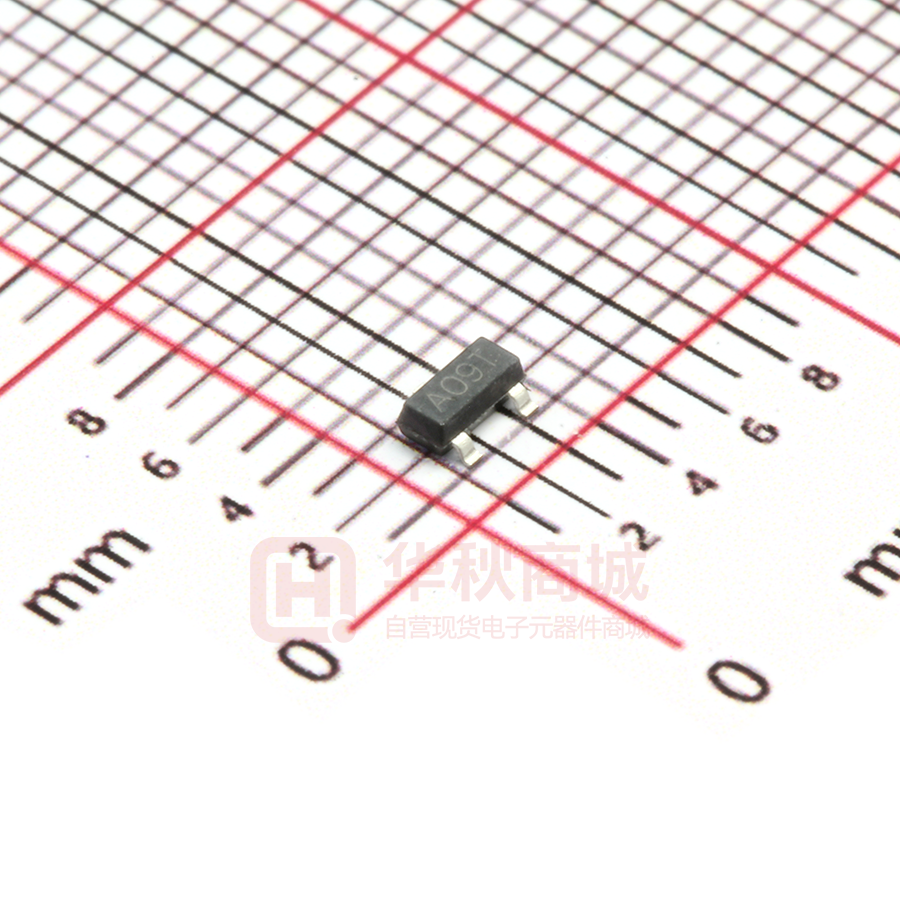

AO3400MI-MS

www.msksemi.com AO3400MI-MS Semiconductor Compiance SOT-23 FEATURE  High dense cell design for extremely low RDS(ON)  Exceptional on-resistance and maximum DC current capability 1. GATE 2. SOURCE APPLICATION  Load/Power Switching  Interfacing Switching 3. DRAIN Equivalent Circuit V(BR)DSS ID RDS(on)MAX 35mΩ@ 10V 40mΩ@4.5V 30 V 5.8A 52mΩ@2.5V Maximum ratings ( Ta=25℃ unless otherwise noted) Parameter Symbol Value Unit Drain-Source Voltage VDS 30 V Gate-Source Voltage VGS ±12 V Continuous Drain Current ID 5.8 A Drain Current-Pulsed (note 1) IDM 30 A Power Dissipation PD 350 mW RθJA 357 ℃/W Junction Temperature TJ 150 ℃ Storage Temperature TSTG -55~+150 ℃ Thermal Resistance from Junction to Ambient (note 2) www.msksemi.com AO3400MI-MS Semiconductor Compiance MOSFET ELECTRICAL CHARACTERISTICS Ta=25 ℃ unless otherwise specified Parameter Symbol Test Condition Min Typ Max Unit Off Characteristics Drain-source breakdown voltage V(BR) DSS VGS = 0V, ID =250µA Zero gate voltage drain current IDSS VDS =24V,VGS = 0V Gate-source leakage current IGSS VGS =±12V, VDS = 0V 30 V 1 µA ±100 nA VGS =10V, ID =5.8A 35 mΩ VGS =4.5V, ID =5A 40 mΩ VGS =2.5V,ID=4A 52 mΩ On characteristics Drain-source on-resistance (note 3) Forward tranconductance Gate threshold voltage RDS(on) gFS VGS(th) VDS =5V, ID =5A VDS =VGS, ID =250µA 8 S 0.7 1.4 V 1050 pF Dynamic Characteristics (note 4,5) Input capacitance Ciss Output capacitance Coss Reverse transfer capacitance Crss Gate resistance Rg VDS =15V,VGS =0V,f =1MHz VDS =0V,VGS =0V,f =1MHz 99 pF 77 pF 3.6 Ω 5 ns Switching Characteristics (note 4,5) Turn-on delay time Turn-on rise time Turn-off delay time Turn-off fall time td(on) tr VGS=10V,VDS=15V, 7 ns td(off) RL=2.7Ω,RGEN=3Ω 40 ns 6 ns 1 V tf Drain-source diode characteristics and maximum ratings Diode forward voltage (note 3) VSD IS=1A,VGS=0V Note : 1. Repetitive Rating : Pulse width limited by maximum junction temperature. 2. Surface Mounted on FR4 Board, t < 5 sec. 3. Pulse Test : Pulse Width≤300µs, Duty Cycle ≤ 2%. 4. Guaranteed by design, not subject to production testing. www.msksemi.com AO3400MI-MS Semiconductor Compiance Typical Characteristics Output Characteristics 25 Transfer Characteristics 5 Pulsed VDS =5.0V VGS =10.0V、4.5V、3.0V Pulsed 20 4 (A) ID 15 3 10 DRAIN CURRENT DRAIN CURRENT ID (A) VGS =2.5V VGS =2.0V 5 2 Ta=100℃ 1 Ta=25℃ 0 0 1 2 3 4 DRAIN TO SOURCE VOLTAGE R DS(ON) —— VDS 0 0.0 5 ID (mΩ) 300 RDS(ON) 250 ON-RESISTANCE (mΩ) RDS(ON) ON-RESISTANCE VGS=2.5V 35 VGS=4.5V 30 4 8 12 DRAIN CURRENT ID 16 VGS Pulsed 200 150 100 0 20 ID=5A 0 2 4 6 GATE TO SOURCE VOLTAGE (A) IS —— VSD 10 —— 2.5 (V) 50 VGS=10V 1 2.0 VGS 350 Pulsed 25 1.5 Ta=25℃ Ta=25℃ 40 20 R DS(ON) 400 55 45 1.0 GATE TO SOURCE VOLTAGE 60 50 0.5 (V) 8 VGS 10 (V) Threshold Voltage 1.0 Ta=25℃ Pulsed V S I 0.1 THRESHOLD VOLTAGE SOURCE CURRENT 0.9 TH (A) (V) 1 0.01 1E-3 1E-4 0 200 400 600 800 SOURCE TO DRAIN VOLTAGE 1000 V SD (mV) 1200 ID=250uA 0.8 0.7 0.6 0.5 25 50 75 100 125 JUNCTION TEMPERATURE TJ (℃) www.msksemi.com AO3400MI-MS Semiconductor Compiance PACKAGE MECHANICAL DATA Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° REEL SPECIFICATION P/N AO3400MI-MS PKG SOT-23-3 QTY 3000 www.msksemi.com AO3400MI-MS Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
