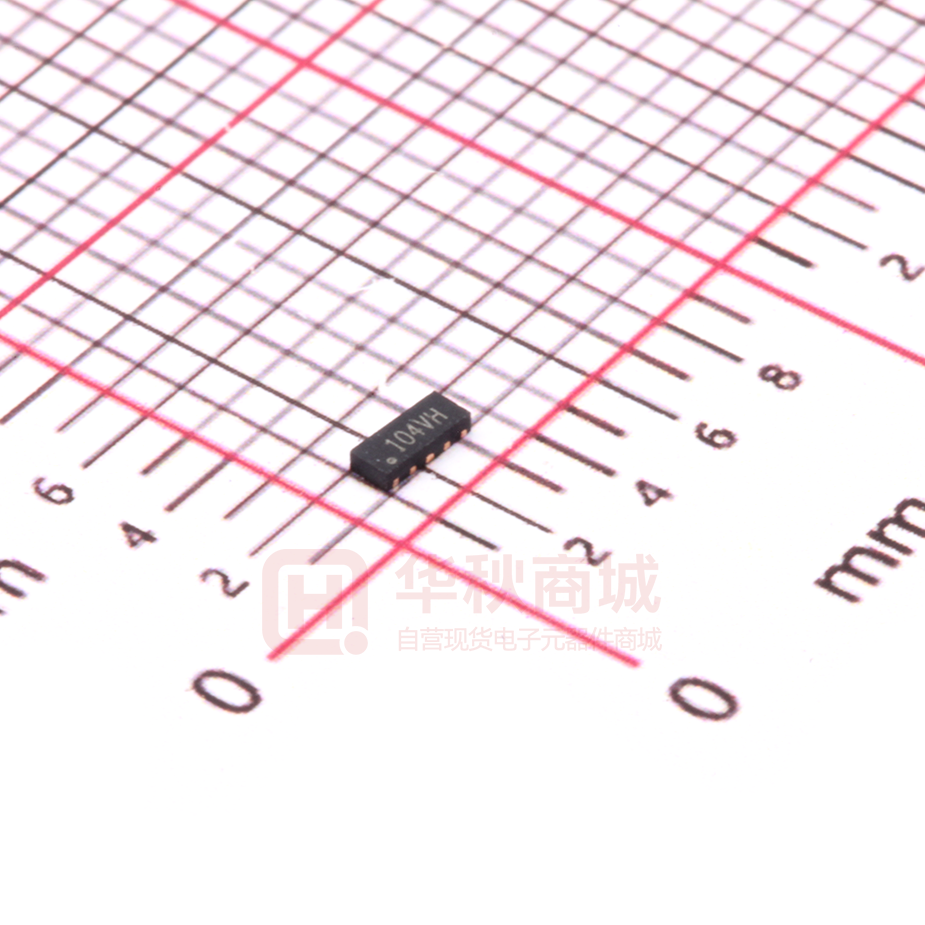

AZ1345-04F-MS

www.msksemi.com AZ1345-04F-MS Semiconductor Compiance Features         Protects two or four I/O lines Low capacitance: 0.5pF Typical between I/O channel Low leakage current 5V operating voltage Response time < 1ns Solid-state silicon avalanche technology Device meets MSL 1 requirements RoHS compliant Applications          High Definition Multi-Media Interface (HDMI) Digital Visual Interface (DVI) USB 1.1/2.0/3.0/OTG IEEE 1394 Firewire Ports Notebooks & Handhelds DFN2510 Projection TV & Monitors Set-top box Flat Panel Displays PCI Express Mechanical Characteristics      DFN2510 package Flammability Rating: UL 94V-0 Terminal: Matte tin plated. Packaging: Tape and Reel High temperature soldering guaranted:260℃/10s  Reel size: 7 inch www.msksemi.com AZ1345-04F-MS Semiconductor Compiance Maximum Ratings And Characteristics @ 25°C Ambient Temperature (unless otherwise noted) Symbol Parameter Value Units PPP Peak Pulse Power (8/20μs) 150 W IPP Peak Pulse Current (8/20μs) 5 A ±15 ±8 kV VESD ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) TOPT Operating Temperature -55/+150 C TSTG Storage Temperature -55/+150 C Electrical Characteristics(Tamb=25C) Symbol Parameter Test Condition VRWM Reverse Working Voltage Any I/O pin to GND VBR Reverse Breakdown Voltage IR Reverse Leakage Current IT = 1mA Any I/O pin to GND VRWM = 5V Any I/O pin to GND VF Diode Forward Voltage IF = 15mA VC1 Clamping Voltage 1 VC2 Clamping Voltage 2 CJ1 Junction Capacitance 1 CJ2 Junction Capacitance 2 Min Typ Max Units 5.0 V 6.0 V 1 μA 1.2 V IPP = 1A, tp = 8/20μs Any I/O pin to GND 15.5 V IPP = 5, tp = 8/20μs Any I/O pin to GND 25 V 0.3 0.6 pF 0.45 0.8 pF VR = 0V, f = 1MHz Between I/O pins VR = 0V, f = 1MHz Any I/O pin to GND 0.85 Note: I/O pins are pin 1,2,4,5. www.msksemi.com AZ1345-04F-MS Semiconductor Compiance Electrical Characteristics Curve www.msksemi.com AZ1345-04F-MS Semiconductor Compiance PACKAGE MECHANICAL DATA A A b1xN bbb 1 E/2 C A1 R0.125 E C A B 2 DIMENSI LxN DIM 2X R0.075 PLACES 7 N bxN e B SEATING PLANE aaa C A2 D bbb D/2 C A B Dimensions in millimeters A A1 A2 b b1 D E e L N aaa bbb ONS INCHES MIN MILLIMETERS NOM MAX .020 .023 0.00 .001 (.005) .006 .008 .014 .016 .094 .098 .035 .039 .020 BSC .012 .015 8 .003 .004 .026 .002 .010 .018 .102 .043 .017 MIN NOM MAX 0.50 0.58 0.00 0.03 (0.13) 0.15 0.20 0.35 0.40 2.40 2.50 0.90 1.00 0.50 BSC 0.30 0.38 8 0.08 0.10 0.65 0.05 0.25 0.45 2.60 1.10 0.425 DIMENSIONS P1 P Y Z (C) (Y1) G X X1 DIM INCHES MILLIMETERS C (.034) (0.875) G .008 0.20 P .020 0.50 P1 .039 1.00 X .008 0.20 X1 .016 0.40 Y .027 0.675 Y1 (.061) (1.55) Z .061 1.55 NOTES: CONTROLLING DIMENSIONS ARE IN MILLIMETERS (ANGLES IN DEGREES). THIS LAND PATTERN IS FOR REFERENCE PURPOSES ONLY. CONSULT YOUR MANUFACTURING GROUP TO ENSURE YOUR COMPANY'S MANUFACTURING GUIDELINES ARE MET. REEL SPECIFICATION P/N AZ1345-04F-MS PKG DFN2510 QTY 3000 www.msksemi.com AZ1345-04F-MS Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
