US3M

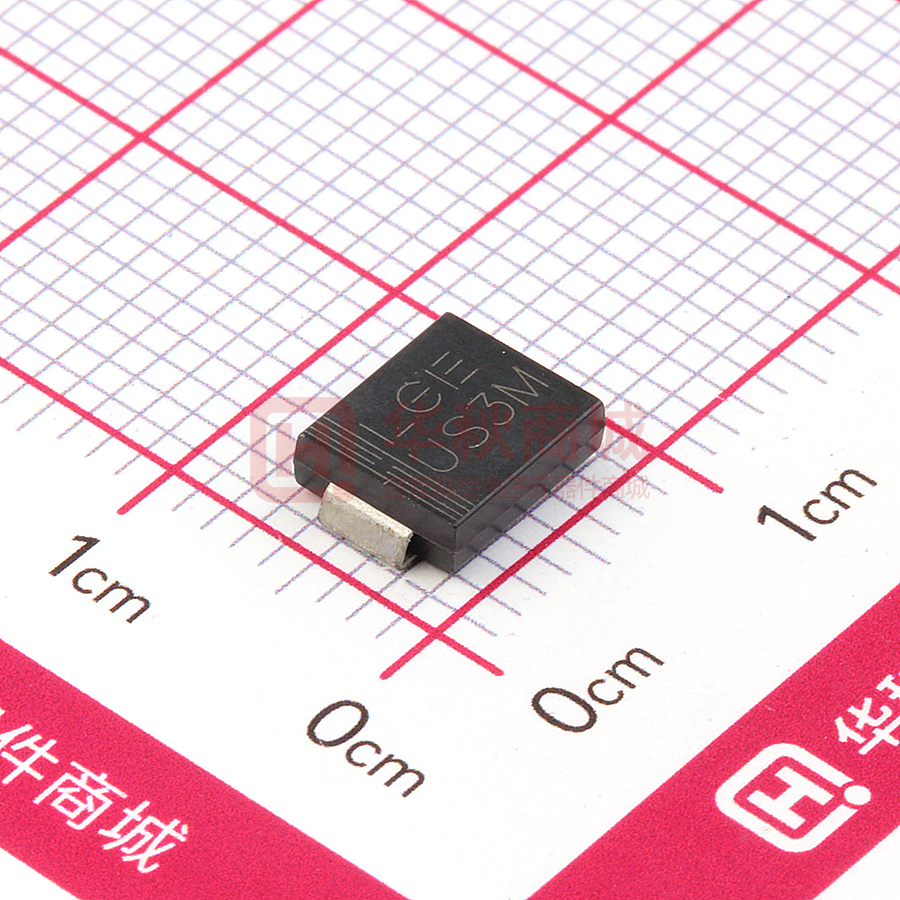

US3ACUS3M Surface Mount Rectifiers Features







Plastic package has underwriters laboratories vvflam mability classification 94V-0 For surface mount applications SMC/DO-214AB Low profile package Easy pick and place Ultrafast recovery times for high efficiency Low forward voltage,low power loss
Built-in strain relief,ideal for autom ated placem ent

High temperature soldering: 250 oC/10 seconds on terminals Mechanical Data
