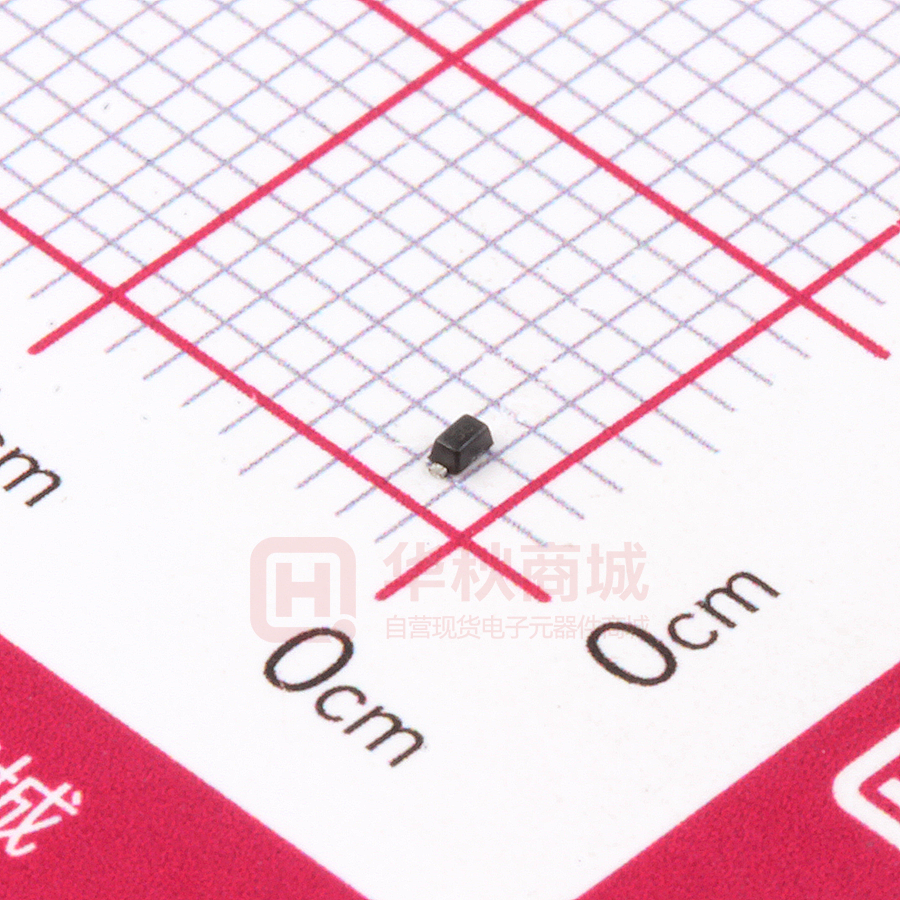

ESD5Z5V0C

ESD5Z5V0C SOD-523 SURFACE MOUNT Very Small Outline Flat Lead Plastic Package Transient Voltage Suppressors ESD Protection Diodes Absolute Maximum Ratings Symbol Vpp TA = 25°C unless otherwise noted Parameter IEC61000-4-2(ESD) Air Contact Value Units ±15 ±8 KV ESD Per Human Body Model 16 KV PD Power Dissipation (Note 1) 150 mW TSTG TJ TL Storage Temperature Range Operating Junction Temperature Max Lead Solder Temperature range (10 Second Duration) -55 to +150 °C +150 °C 260 °C These ratings are limiting values above which the serviceability of the diode may be impaired. Note 1. FR-5 = 1.0 x 0.75 x 0.62 in. Specification Features: ƒ ƒ ƒ ƒ ƒ ƒ ƒ DEVICE MARKING CODES: Stand-off Voltage: 5V0 Low Leakage Response Time is Typically < 1ns IEC61000-4-2 Level 4 ESD Protection Device Type Device Marking ESD5Z5V0C 5C RoHS Compliant Green EMC Matte Tin(Sn) Lead Finish Packing SOD-523: ƒ Revision:20170701-P1 Quantity per reel ：3,000pcs ht t p : // www.lgesem i .c o m mail:lge@lgesemi.com ESD5Z5V0C Electrical Characteristics (TA = 25°C unless otherwise noted) Device Type VBR @ IT VRWM IR @ VRWM (Volts) (μA) Max Max Min Max 5.0 1 5.6 7.8 ESD5Z5V0C (Note 2) (Volts) IT (mA) IPP+ VC @ Max IPP+ (A) C@ (Volts) PPK+ (W) VR = 0V, f = 1MHz Max Max Max Typ. 4 12 48 15 1.0 (pF) + Surge current waveform per Figure 1. Note 2: VBR is measured with a pulse test current IT at an ambient temperature of 25°C. SURGE CURRENT WAVEFORM： Ordering Information Device Package Shipping ESD5Z5V0C SOD523 Tape & Reel 3000pcs Flat Lead SOD-523 Package Outline Note: Dimensions are exclusive of Burrs, Mold Flash & Tie Bar extrusions. Revision:20170701-P1 ht t p : // www.lgesem i .c o m mail:lge@lgesemi.com
