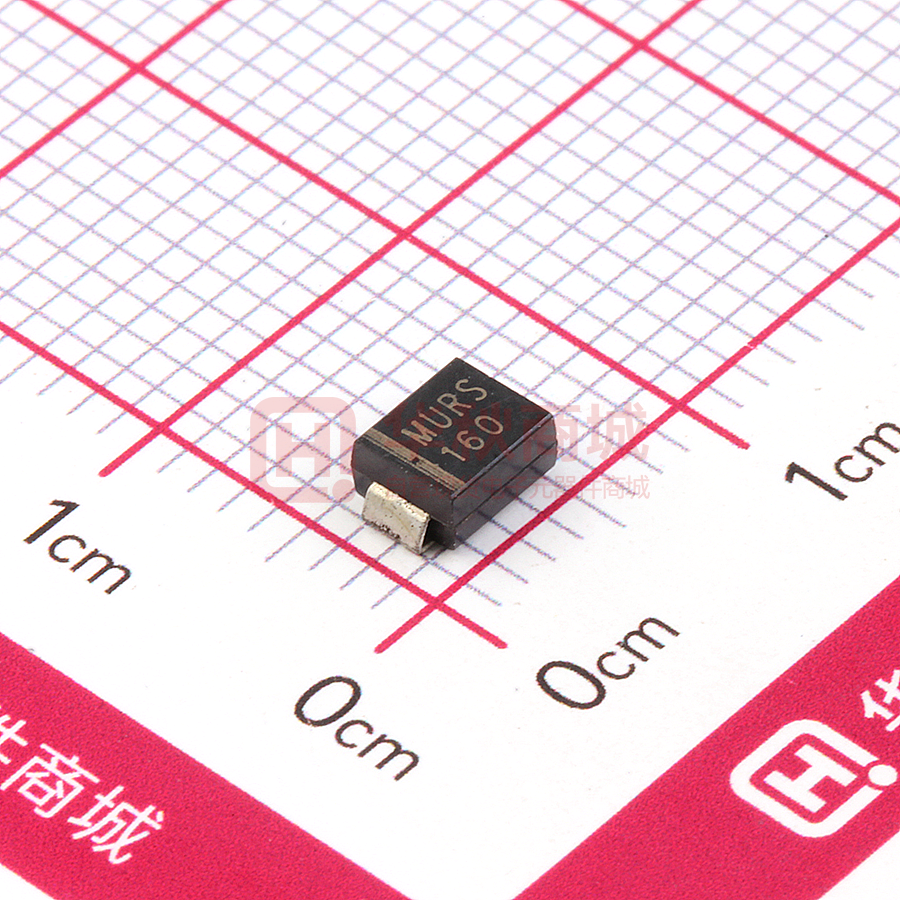

MURS140-MURS160 Surface Mount Rectifiers VOLTAGE RANGE: 400 --- 600 V CURRENT: 1.0 A Features





SMB/DO-214AA Low cost Low leakage Low forward voltage drop High current capability Easily cleaned with Alcohol,Isopropanol and similar solvents The plastic material carries U/L recognition 94V-0 0.180(4.57) 0.160(4.06) 0.086(2.20) 0.077(1.95) 0.209(5.30) 0.201(5.10) 0.012(0.30) 0.006(0.15) Mechanical Data 0.096(2.44) 0.084(2.13)
Case:JEDEC DO-214AA,molded plastic
Polarity: Color band denotes cathode Weight: 0.003 ounces,0.093 grams Mounting position: Any

0.155(3.94) 0.130(3.30) 0.059(1.50) 0.035(0.90) 0.008(0.20) 0.002(0.05) Dimensions in inches and(millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 　ambient temperature unless otherwise specified. Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%. MURS140 Device marking code MURS160 MG MJ UNITS Maximum recurrent peak reverse voltage VRRM 400 600 V Maximum RMS voltage VRMS VDC 420 600 V Maximum DC blocking voltage 280 400 Maximum average forw ard rectified current @TL=110 V IF(AV) 1.0 A IFSM 35 A t rr 50 ns Peak forw ard surge current 8.3ms single half-sine-w ave superimposed on rated load @TJ=125 Typical reverse recovery time (Note1) Maximum reverse current at rated DC blocking voltage @TA=25 @T A=125 IR Maximum instantaneous forw ard voltage at 1.0 A Typical thermal resistance (Note2) Operating junction temperature range Storage temperature range 5.0 150 VF 1.25 RθJL 13 TJ - 55 ---- + 150 TSTG - 55 ---- + 150 A V ／W NOTE: 1. Measured with I F =0.5A, I R=1A, I rr=0.25A. 2. Junction to ambient. ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com MURS140-MURS160 Surface Mount Rectifiers Ratings AND Charactieristic Curves 10 TJ=25 Pulse Width=300uS 4 2 1.0 AMPERES 0.4 0.2 0.1 0.06 0.04 0.02 0.01 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 INSTANTANEOUS REVERSE LEAKAGE CURRENT 100 FIG.2 -- TYPICAL REVERSE LEAKAGE CHARACTERISTICS 1000 100 O TJ=125 C 10 O TJ=75 C 1 TJ=25OC 0.1 0.01 0 20 40 60 80 100 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) FIG.3 -- PEAK FORWARD SURGE CURRENT FIG.4 -- FORWARD DERATING CURVE 45 40 TJ =125 8.3ms Single Half Sine-Wave 35 30 25 20 15 10 5 1 2 4 8 10 20 40 60 80 100 AVERAGE FORWARD CURRENT AMPERES INSTANTANEOUS FORWARD VOLTAGE,VOLTS AMPERES PEAK FORWARD SURGE CURRENT INSTANTANEOUS FORWARD CURRENT FIG.1 -- TYPICAL FORWARD CHARACTERISTIC 1.2 1.0 0.8 0.6 0.4 Single Phase Half Wave 60H Z Resistive or Inductive Load 0.2 0 25 50 100 125 PACKAGE SPQ/PCS CARTON SPQ/PCS CARTON SIZE/CM CARTON GW/KG CARTON NW/KG SMB 3000/REEL 48000 36X35.8X36.5 12.00 11.00 ht t p : // 150 175 LEAD TEMPERATURE, NUMBER OF CYCLES AT 60Hz Revision:20170701-P1 75 www.lgesemi .c o m mail:lge@lgesemi.com
