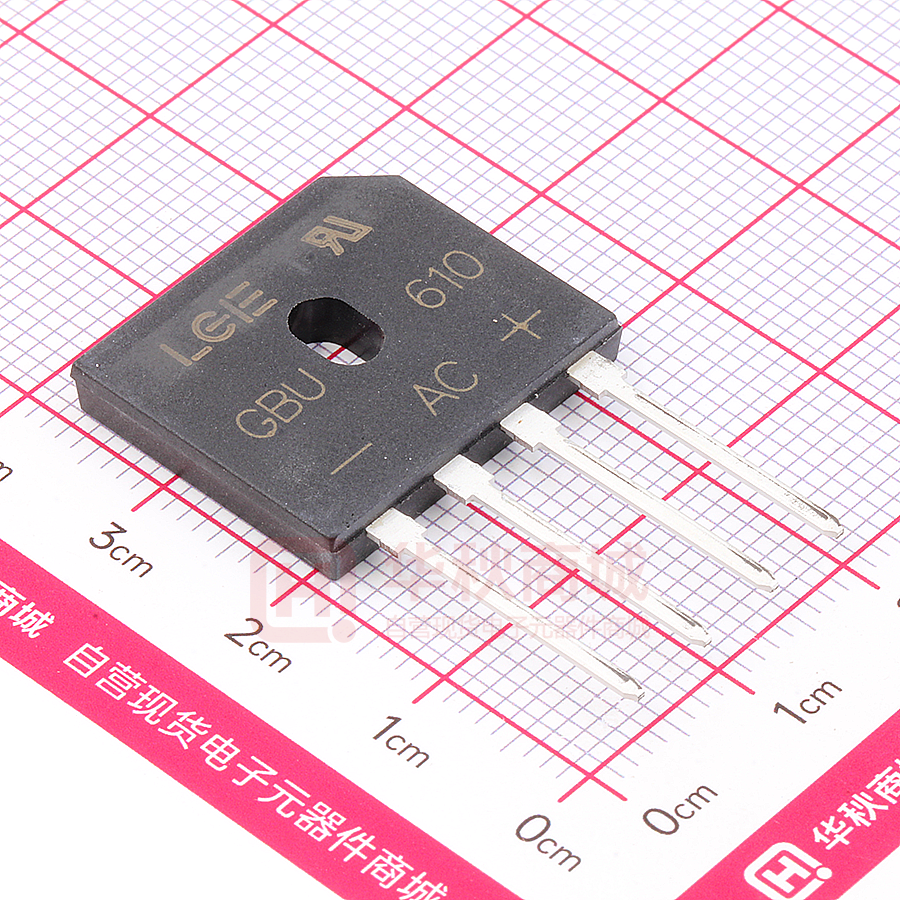

GBU610

GBU6005 thru GBU610 6.0A Single-Phase GLass Passivated Bridge Rectifiers Recifiter Reverse Voltage 50V to 1000V GBU Features ●Glass passivated junction ●The plastic material used carries Underwriters Laboratory flammability recognition 94V-0 ●Suge overload ratings to 175 amperes peak ●Ideal for printed circuit board application ●High temperature soldering guaranteed 265℃/10 Mechanical Data Case:Molded plastic Terminals:Platde leads solderable per MIL-STD-750, Method 2026 Polarity:Polarity symbols molded or Marked on body Mounting Position:Any Weight:0.138ounce,3.9 grams(approx) Maximum Ratings & Thermal Characteristics Dimensions in inches and (milimeters) Rating at 25℃ ambient temperature unless otherwise specified,Resistive or inductive load,60HZ. For Capacitive load derate current by 20% Parameter Symbol GBU6005 GBU601 GBU602GBU604 GBU606 GBU608 GBU610 unit Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS bridge input voltage VRMS 35 70 140 280 420 560 700 V VDC 50 100 200 400 6.0 600 800 1000 V Maximum DC blocking voltage Maximum average forward rectified IF(AV) output current at TA=40℃ Peak forward surge current single sine-wave A 2.8 IFSM 150 A I2 t ReJA 93 Mounting torque(Suggests 045~0.65) Tor Rating Torque:0.8(Suggests 045~0.65) A2sec ℃/w N.m Typical thermal resistance per element(2) Cj 50.0 PF Operating junction and stroage temperature TJ, -55to+150 ℃ superimposed on rated load (JEDEC Method) Rating for fusing(t
