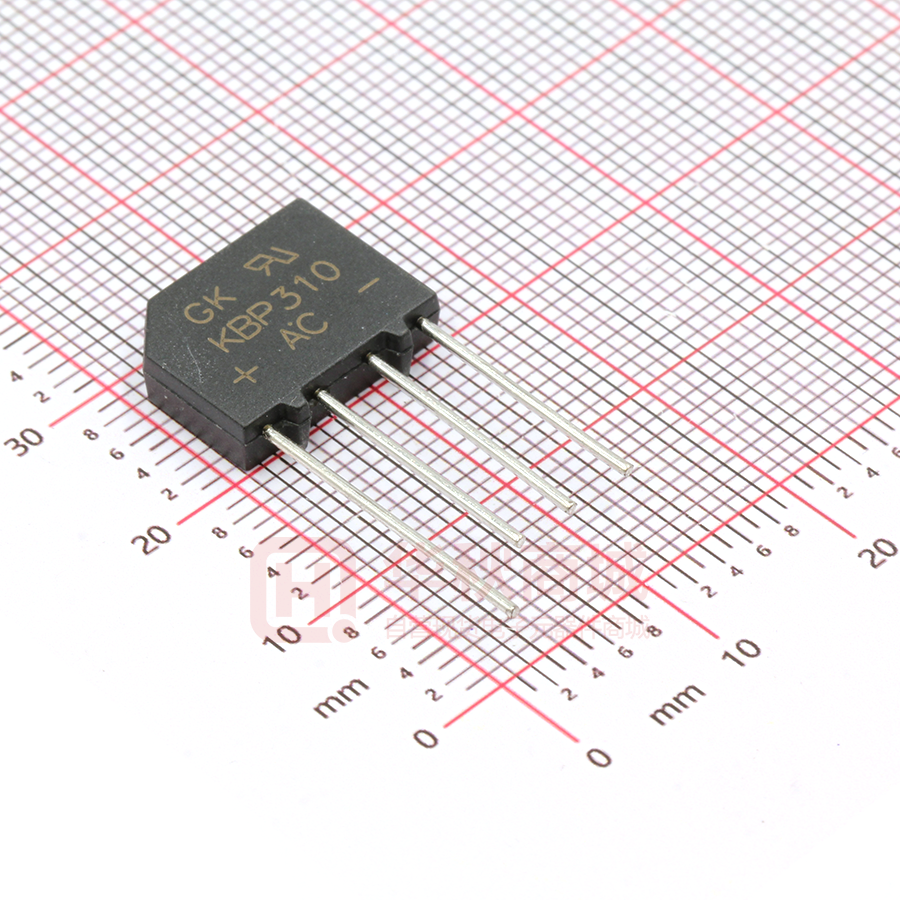

KBP310

KBP3005-KBP310 Silicon Bridge Rectifiers VOLTAGE RANGE: 50 --- 1000 V CURRENT: 3.0 A KBP Features 1.8 TYP. 1.8 TYP. 4.8± 0.2 1.5 TYP. Rating to 1000V PRV Surge overload rating to 50 Amperes peak 14.5± 0.5 3.2 45° 11.2± 0.5 Ideal for printed circuit board + - AC 15.2 MIN 1.0 TYP. plastic technique results in inexpensive product Lead solderable per MIL-STD-202 method 208 Plastic material has UL flammability classification 12.7 MIN Reliable low cost construction utilizing molded φ 0.8± 0.1 3.7± 0.25 94V-O 3.7± 0.25 Weight: 0.050 ounces,1.42 grams Dimensions in millimeters Glass passivated chip junctions MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ambient temperature unless otherwise specified. Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%. KBP 3005 KBP 301 KBP 302 KBP 304 KBP 306 KBP 308 KBP 310 UNITS Maximum recurrent peak reverse voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC blocking voltage V DC 50 100 200 400 600 800 1000 V Maximum average forw ard IF(AV) 3.0 A IFSM 80.0 A I²t Rating for fusing @Tj=25℃ I²t 26.6 A²S Maximum instantaneous forw ard voltage @ 3.0 A VF 1.1 V 10.0 μA 1.0 mA Output current @TA=25 Peak forw ard surge current 8.3ms single half-sine-w ave superimposed on rated load Maximum reverse current at rated DC blocking voltage @TA=25 IR @TA =100 Typical Thermal Resistance (Note) RθJA RθJC 30 8 RθJL 11 TJ - 55 ---- + 150 TSTG - 55 ---- + 150 Operating junction temperature range Storage temperature range Revision:20170701-P1 ht t p : // www.lgesem i .c o m o C/W mail:lge@lgesemi.com KBP3005-KBP310 Silicon Bridge Rectifiers PEAK FORWARD SURGE CURRENT, AMPERSE FIG.1 -- PEAK FORWARD SURGE CURRENT 90 80 8.3mS Single Half-Sine-Wave (JEDEC METOD) 8.3毫秒正弦半波 70 60 50 40 30 20 10 0 1 10 100 AVERAGE FORWARD OUTPUT CURRENT, AMPERSE Ratings AND Charactieristic Curves FIG.2 -- FORWARD DERATING CURVE VVNVVOUTPUT RECTIFIED CURRENT 3 2 1 0 0 NUMBER OF CYCLES AT 60HZ 50 100 150 AMBIENT TEMPERATURE, FIG.3 -- TYPICAL FORWARD CHARACTERISTIC FIG.4 -- TYPICAL REVERSE CHARACTERISTIC INSTANTANEOUS REVERSE CURRENT, MICRO AMPERSE Pulse Width 300uS 2%Duty Cycle 300uS脉宽、2%工作周 1 TJ=100°C TJ=25°C AMPERSE INSTANTANEOUS FORWARD CURRENT, 7.5 0.1 TJ=125°C TJ=75°C 0.01 0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 INSTANTANEOUS FORWARD VOLTAGE, VOLTS Revision:20170701-P1 ht t p : // 1000 TJ=125°C TJ=100°C 100 TJ=75°C 10 TJ=25°C 1 0.1 20 40 60 80 100 PERCENT OF RATED PEAK REVERSE VOLTAGE www.lgesem i .c o m mail:lge@lgesemi.com
