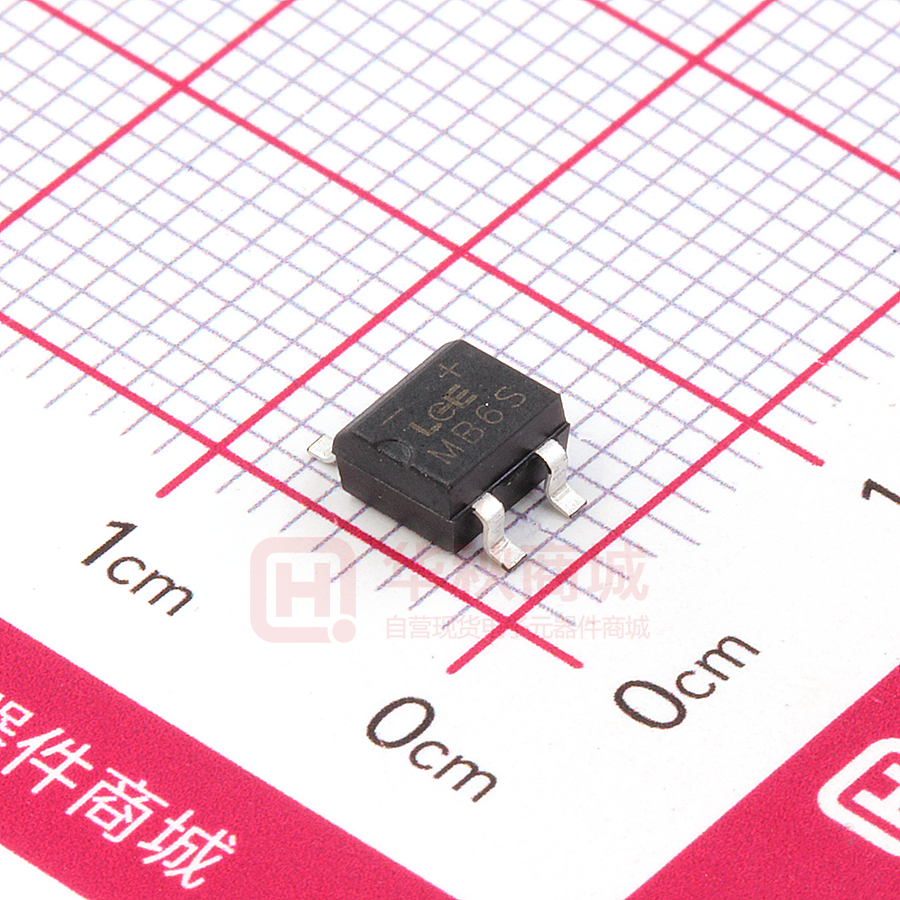

MB6S

MB05S-MB10S SILICON BRIDGE RECTIFIERS MBS A + ~ ~ B FEATURES - z Glass：passivated chip junctions z High surge overload rating: 30A peak z Saves space on printed circuit boards z This series is UL recognized under Component Index, file number E239431 z Plastic material has U/L flammability classification94V-O z High temperature soldering guaranteed: 260°C/10 seconds at 5 lbs. (2.3kg) tension I D Dim Min Max A 4.40 4.80 B 3.40 3.80 C 2.35 2.65 D 6.50 7.00 E 0.15 0.35 F 0.90 1.50 E H C G F 2.50 2.80 I 0.50 0.80 2.30 2.70 K G K 0.20MAX H All Dimensions in mm MECHANICAL DATA z Case: Molded plastic body over passivated junctions z Terminals: Plated leads solderable per MIL-STD-750, Method 2026 Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol MB05S MB1S MB2S MB4S MB6S MB8S MB10S UNITS Peak Repetitive Reverse Voltage VRRM 50 100 200 400 600 800 1000 V RMS Reverse Voltage VRMS 35 70 140 280 420 560 700 V DC Blocking Voltage VDC 50 100 200 400 600 800 1000 V Maximum average forward Output current @TA=25℃ Peak forward surge current 8.3ms single half- 0.5 IF(AV) 1) A 2) 0.8 IFSM 30 A 3.74 As sine-wave superimposed on rated load Current squared time t < 8.3ms , Ta = 25℃ 2 It 2 Thermal Characteristics Characteristic Symbol Typical junction capacitance per leg (NOTE 3) Typical thermal resistance per leg (NOTE 1) (NOTE 2) Operating junction temperature range Storage temperature range MB05S MB1S MB2S MB4S MB6S MB8S MB10S UNITS CJ 13 pF R ΘJC 29 R ΘJA 73 RθJL 25 TJ - 55 ---- + 150 ℃ TSTG - 55 ---- + 150 ℃ ℃/W Electrical Characteristics (@TA = 25°C unless otherwise specified) Characteristic Maximum instantaneous forward voltage at 0.4 A Maximum reverse current @TA=25℃ at rated DC blocking voltage @TA=125℃ Symbol MB05S MB1S MB2S MB4S MB6S 1.0 VF 5.0 IR 100 MB8S MB10S UNITS V μA NOTES: (1) On glass epoxy P.C.B. mounted on 0.05 x 0.05" (1.3 x 1.3mm) pads (2) On aluminum substrate P.C.B. with an area of 0.8" x 0.8" (20 x 20mm) mounted on 0.05 x 0.05" (1.3 x 1.3mm) solder pad (3) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com MB05S-MB10S SILICON BRIDGE RECTIFIERS 30 CAPACITANCE (pF) a 25 20 15 10 f=1.0MHz Vslg=50mVp-p 5 0 0.1 PACKAGE INFORMATION 10 100 REVERSE VOLTAGE (V) Device Package Shipping MB05S-MB10S MBS 3000/Tape&Reel ht t p : // Revision:20170701-P1 1 www.lgesemi .c o m mail:lge@lgesemi.com
