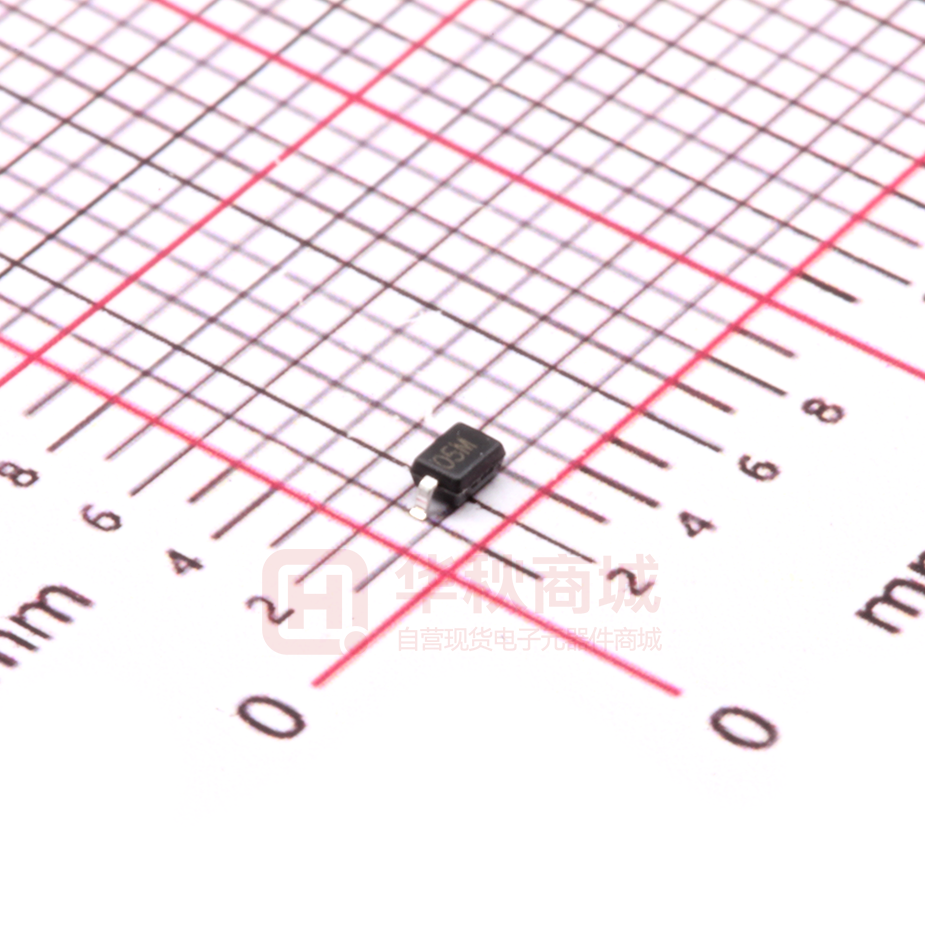

PDC0541D3

PDC0541D3

  • 厂商:

    PDW(江苏芯格诺)

  • 封装:

    SOD-323

  • 描述:

    截止电压(Vrwm):5V (最大值) 峰值脉冲电流(8/20us):15A 极性:双向 最大钳位电压:14V 击穿电压(最小值):6V

  • 数据手册
  • 价格&库存
PDC0541D3 数据手册
ESD Protection Diode PDC0541D3 Description Features The PDC0541D3 is a bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive data and power line. The PDC0541D3 complies with the IEC 61000-4-2 (ESD) with ±30 kV air and ±30 kV contact discharge. It is assembled into an ultra-small SOD-323 leadfree package. The small size and high ESD surge protection make PDC0541D3 an ideal choice to protect cell phone, digital cameras, audio players and many other portable applications.  Protects one data or power line  Ultra low leakage: nA level  Operating voltage: 5V  Low clamping voltage  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-5 (Lightning) 15A (8/20μs)  ROHS Compliant Mechanical Characteristics Applications  Package: SOD-323  Lead Finish: Matte Tin  Case Material: “Green” Molding Compound.  Moisture Sensitivity: Level 3 per J-STD-020  Terminal Connections: See Diagram Below  Marking Information: See Below         Dimensions and Pin Configuration Marking Information Cellular Handsets and Accessories Personal Digital Assistants Notebooks and Handhelds Portable Instrumentation Digital Cameras Peripherals Audio Players Keypads, Side Keys, LCD Displays 05M 05M = Device Marking Code Circuit and Pin Schematic Ordering Information Part Number Marking Packaging Reel Size PDC0541D3 05M 3000/Tape & Reel 7 inch www.pdwsemi.com 1 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDC0541D3 Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 200 W Peak Pulse Current (8/20µs) IPP 15 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM VBR 6 Max Unit Test Condition 5 V 8 V IT = 1mA Reverse Leakage Current IR 0.2 μA VRWM = 5V Clamping Voltage VC 8 V IPP = 1A Clamping Voltage VC 14 V IPP = 15A Junction Capacitance CJ 50 pF VR = 0V, f = 1MHz www.pdwsemi.com 30 2 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDC0541D3 Typical Performance Characteristics (TA=25℃ unless otherwise Specified) Junction Capacitance vs. Reverse Voltage Peak Pulse Power vs. Pulse Time Clamping Voltage vs. Peak Pulse Current (tp = 8/20us) Power Derating Curve 100 % of Peak Pulse Current 90 80 70 60 50 40 30 20 10 0 0 20 40 Time_t(uS) 60 80 ESD Clamping Voltage 8 X 20μs Pulse Waveform www.pdwsemi.com 8 kV Contact per IEC61000−4−2 3 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDC0541D3 SOD-323 Package Outline Drawing A DIMENSIO MILLIMETERS INCHES MIN MAX MIN MAX 1.50 1.80 0.060 0.071 SYM B 1.20 1.40 0.045 0.054 C 2.30 2.70 0.090 0.107 D - 1.10 - 0.043 E 0.30 0.40 0.012 0.016 F 0.10 0.25 0.004 0.010 H - 0.10 - 0.004 Suggested Land Pattern SYM www.pdwsemi.com 4 -4 DIMENSIONS MILLIMETERS INCHES A 3.15 0.120 B 0.80 0.031 C 0.80 0.031 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08
