PDC3301D5

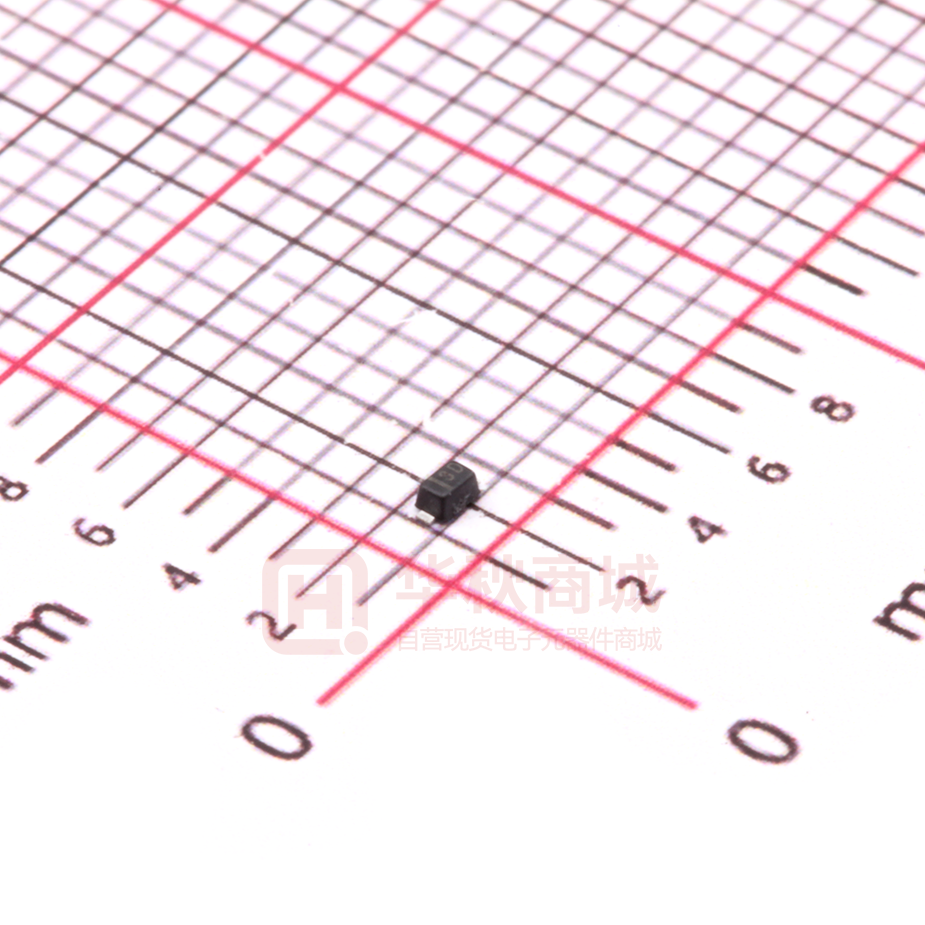

ESD Protection Diode PDC3301D5 Description Features The PDC3301D5 is an uni-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and ultra low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive data and power line. The PDC3301D5 complies with the IEC 61000-42(ESD) with ±30kV air and ±30kV contact discharge. It is assembled into an ultra-small SOD-523 lead-free package. The small size and high ESD surge protection make PDC3301D5 an ideal choice to protect cell phone, digital cameras, audio players and many other portable applications.  Protects one data line  Ultra low leakage: nA level  Operating voltage: 3.3V  Ultra low clamping voltage  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns)  ROHS Compliant Mechanical Characteristics Applications  Package: SOD-523  Lead Finish: Matte Tin  Case Material: “Green” Molding Compound.  Moisture Sensitivity: Level 3 per J-STD-020  Terminal Connections: See Diagram Below  Marking Information: See Below         Dimensions and Pin Configuration Marking Information Cellular Handsets and Accessories Personal Digital Assistants Notebooks and Handhelds Portable Instrumentation Digital Cameras Peripherals Audio Players Keypads, Side Keys, LCD Displays 3D 3D = Device Marking Code Bar denotes Pin1 Package Dimensions Circuit and Pin Schematic Ordering Information Part Number Marking Packaging Reel Size PDC3301D5 3D 3000/Tape & Reel 7 inch www.pdwsemi.com 1 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDC3301D5 Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 150 W Peak Pulse Current (8/20µs) Ipp 15 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM VBR Max Unit 3.3 V 3.5 Test Condition V IT = 1mA Reverse Leakage Current IR 0.2 μA VRWM = 3.3V Clamping Voltage VC 7 V IPP = 1A (8 x 20µs pulse) Clamping Voltage VC 10 V IPP = 15A (8 x 20µs pulse) Junction Capacitance CJ pF VR = 0V, f = 1MHz www.pdwsemi.com 20 2 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDC3301D5 Typical Performance Characteristics (TA=25℃ unless otherwise Specified) Junction Capacitance vs. Reverse Voltage Peak Pulse Power vs. Pulse Time Clamping Voltage vs. Peak Pulse Current Power Derating Curve Note：Data is taken with a 10x attenuator ESD Clamping Voltage 8 X 20μs Pulse Waveform www.pdwsemi.com 8 kV Contact per IEC61000−4−2 3 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDC3301D5 SOD-523 Package Outline Drawing DIMENSIONS MILLIMETERS INCHES MIN NOM MAX MIN NOM MAX A 0.51 -- 0.77 0.020 -- 0.031 A1 0.50 -- 0.70 0.020 -- 0.028 b 0.25 -- 0.35 0.010 -- 0.014 c 0.08 -- 0.15 0.003 -- 0.006 D 0.75 -- 0.85 0.030 -- 0.033 E 1.10 -- 1.30 0.043 -- 0.051 E1 1.50 -- 1.70 0.059 SYM E2 L Θ 0.20REF 0.01 -- 0.067 0.008REF 0.07 0.001 7°REF -- 0.003 7°REF Suggested Land Pattern 单位（mm） www.pdwsemi.com 4 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08
