PDC2401D5

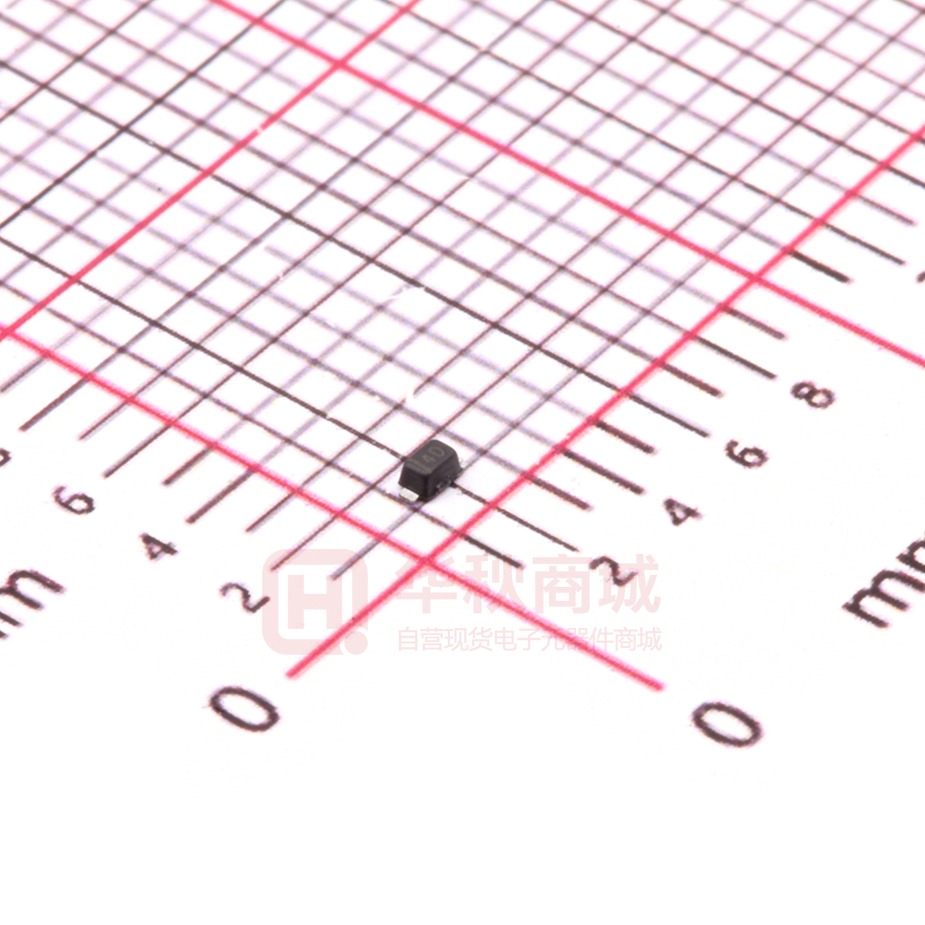

ESD Protection Diode PDC2401D5 Description Features The PDC2401D5 is a 24V uni-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and ultra low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive data and power line. The PDC2401D5 complies with the IEC 61000-4-2(ESD) with ±30kV air and ±30kV contact discharge. It is assembled into an ultra- small SOD-523 leadfree package. The small size and high ESD surge protection make PDC2401D5 an ideal choice to protect cell phone, digital cameras, audio players and many other portable applications.  Protects one data or power line  Ultra low leakage: nA level  Working voltage: 24V  Low clamping voltage  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns) – IEC61000-4-5 (Lightning) : 6A(8/20μs)  ROHS Compliant Mechanical Characteristics Applications  Package: SOD-523  Lead Finish: Matte Tin  Case Material: “Green” Molding Compound.  Moisture Sensitivity: Level 3 per J-STD-020  Terminal Connections: See Diagram Below  Marking Information: See Below        Dimensions and Pin Configuration Marking Information Peripherals Industrial Equipment Notebook Computers Portable Instrumentation Microprocessor Based Equipment Cell Phone Handsets and Accessories Personal Digital Assistants(PDAs) and Pagers 1.60 4D 1.20 0.30 0.80 4D = Device Marking Code Bar denotes Pin1 Package Dimensions Circuit and Pin Schematic Ordering Information Part Number Marking Packaging Reel Size PDC2401D5 4D 3000/Tape & Reel 7 inch www.pdwsemi.com 1 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDC2401D5 Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 300 W Peak Pulse Current (8/20µs) Ipp 6 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM VBR Max Unit 24 V 27 Test Condition V IT = 1mA 0.2 μA VRWM = 24V 1.2 V IF = 10mA Reverse Leakage Current IR Forward Voltage VF Clamping Voltage VC 33 V IPP = 1A (8 x 20µs pulse) Clamping Voltage VC 50 V IPP = 6A (8 x 20µs pulse) Junction Capacitance CJ 40 pF VR = 0V, f = 1MHz www.pdwsemi.com 1.0 2 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDC2401D5 Typical Performance Characteristics (TA=25℃ unless otherwise Specified) Peak Pulse Power vs. Pulse Time Junction Capacitance vs. Reverse Voltage Power Derating Curve Clamping Voltage vs. Peak Pulse Current Note：Data is taken with a 10x attenuator ESD Clamping Voltage 8 kV Contact per IEC61000−4−2 8 X 20μs Pulse Waveform www.pdwsemi.com 3 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDC2401D5 SOD-523 Package Outline Drawing DIMENSIONS MILLIMETERS INCHES MIN NOM MAX MIN NOM MAX A 0.51 -- 0.77 0.020 -- 0.031 A1 0.50 -- 0.70 0.020 -- 0.028 b 0.25 -- 0.35 0.010 -- 0.014 c 0.08 -- 0.15 0.003 -- 0.006 D 0.75 -- 0.85 0.030 -- 0.033 E 1.10 -- 1.30 0.043 -- 0.051 E1 1.50 -- 1.70 0.059 SYM E2 L Θ 0.20REF 0.01 -- 0.067 0.008REF 0.07 0.001 7°REF -- 0.003 7°REF Suggested Land Pattern 单位（mm） www.pdwsemi.com 4 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08
