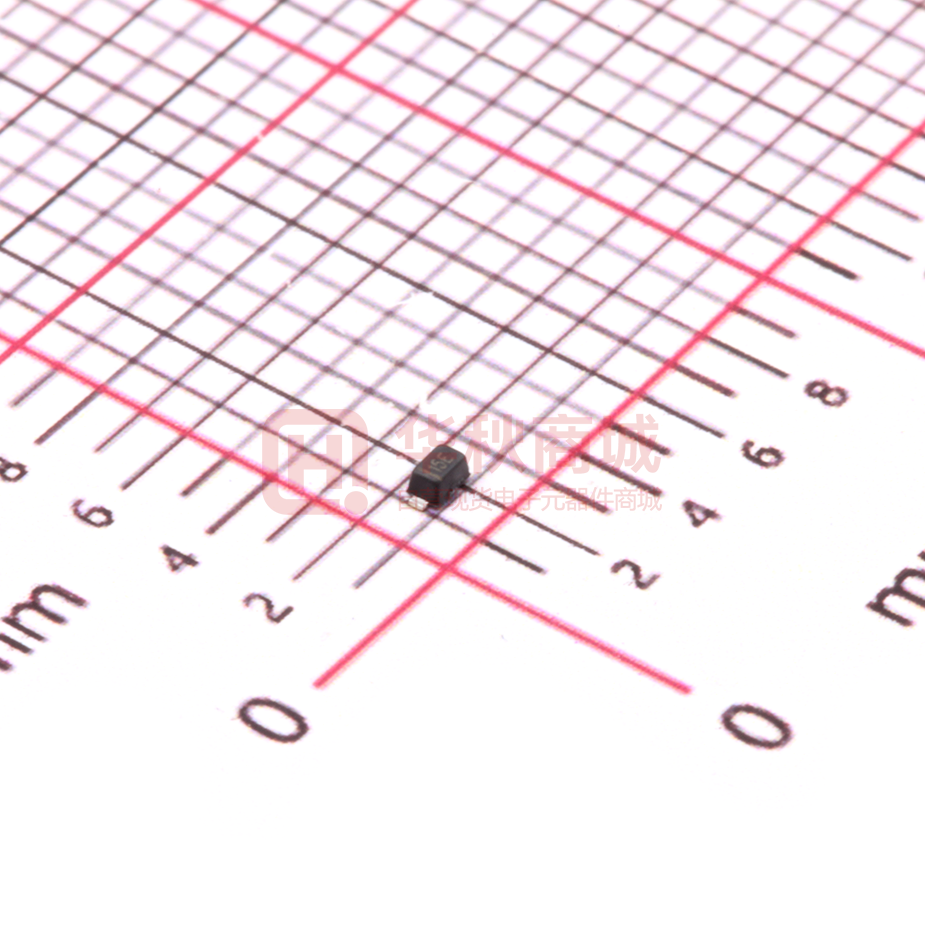

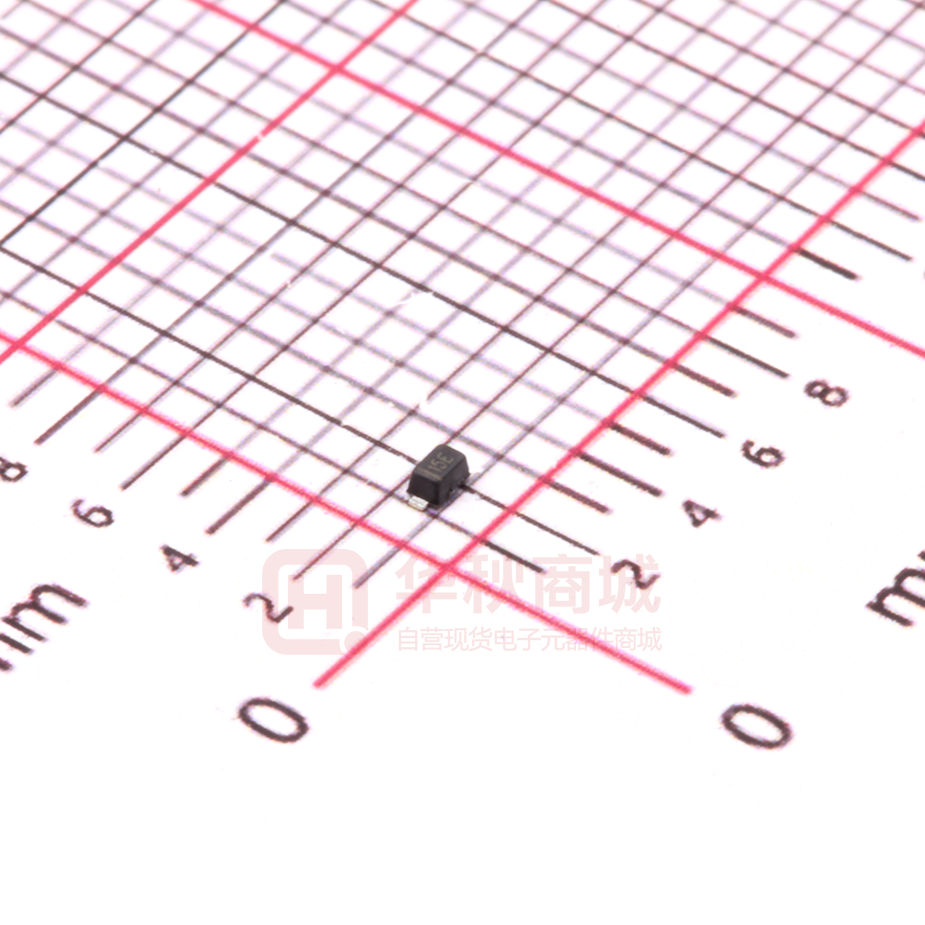

PDC1501D5

ESD Protection Diode PDC1501D5 Description Features The PDC1501D5 is an uni-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and ultra low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive data and power line. The PDC1501D5 complies with the IEC 61000-42 (ESD) with ± 30kV air and ± 30kV contact discharge. It is assembled into an ultra- small SOD-523 lead-free package. The small size and high ESD surge protection make PDC1501D5 an ideal choice to protect cell phone, digital cameras, audio players and many other portable applications.  Protects one line  Ultra low leakage: nA level  Operating voltage: 15V  Low clamping voltage  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-5 (Lightning) 11A (8/20μs)  ROHS Compliant Mechanical Characteristics Applications  Package: SOD-523  Lead Finish: Matte Tin  Case Material: “Green” Molding Compound.  Moisture Sensitivity: Level 3 per J-STD-020  Terminal Connections: See Diagram Below  Marking Information: See Below          Dimensions and Pin Configuration Marking Information Cellular Handsets and Accessories Personal Digital Assistants Notebooks, Desktops, Servers Portable Instrumentation Printers Analog Inputs Video equipment Communication systems Laser Diode Protection 15E 15E = Device Marking Code Bar denotes Cathode Circuit and Pin Schematic Ordering Information Part Number Marking Packaging Reel Size PDC1501D5 15E 3000/Tape & Reel 7 inch www.pdwsemi.com 1 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDC1501D5 Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 350 W Peak Pulse Current (8/20µs) Ipp 11 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM VBR Max Unit 15 V 18 Test Condition V IT = 1mA Reverse Leakage Current IR 0.2 μA VRWM = 15V Clamping Voltage VC 23 V IPP = 1A (8 x 20µs pulse) Clamping Voltage VC 32 V IPP = 11A (8 x 20µs pulse) Junction Capacitance CJ 80 pF VR = 0V, f = 1MHz www.pdwsemi.com 2 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDC1501D5 Typical Performance Characteristics (TA=25℃ unless otherwise Specified) Junction Capacitance vs. Reverse Voltage Peak Pulse Power vs. Pulse Time Clamping Voltage vs. Peak Pulse Current Power Derating Curve 100 % of Peak Pulse Current 90 80 70 60 50 40 30 20 10 0 0 20 40 Time_t(uS) 60 Note：Data is taken with a 10x attenuator 80 ESD Clamping Voltage 8 X 20μs Pulse Waveform www.pdwsemi.com +8 kV Contact per IEC61000−4−2 3 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDC1501D5 SOD-523 Package Outline Drawing DIMENSIONS SYM MIN MILLIMETERS NOM MAX MIN INCHES NOM MAX A 0.51 -- 0.77 0.020 -- 0.031 A1 0.50 -- 0.70 0.020 -- 0.028 b 0.25 -- 0.35 0.010 -- 0.014 c 0.08 -- 0.15 0.003 -- 0.006 D 0.75 -- 0.85 0.030 -- 0.033 E 1.10 -- 1.30 0.043 -- 0.051 E1 1.50 -- 1.70 0.059 E2 L Θ 0.20REF 0.01 -- 0.067 0.008REF 0.07 7°REF 0.001 -- 0.003 7°REF Suggested Land Pattern Unit : mm www.pdwsemi.com 4 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08
