PDLLC08CI

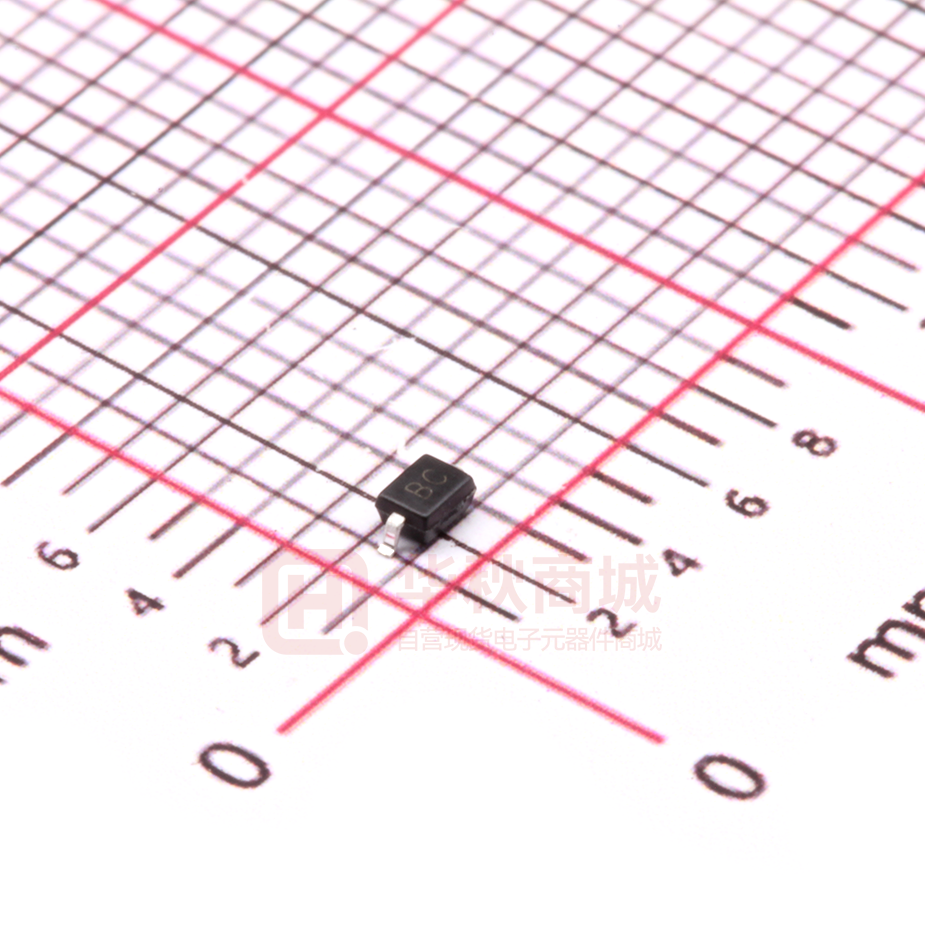

ESD Protection Diode PDLLC08CI Description Features PDLLC12CI a 12V bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive high-speed data lines. The PDLLC12CI has a low capacitance with a typical value at 1pF,and complies with the IEC 61000-4-2 (ESD) standard with ±30kV air and ±30kV contact discharge. It is assembled into a lead-free SOD-323 package. The small size, low capacitance and high ESD surge protection make PDLLC12CI an ideal choice to protect cell phone, wireless systems, and communication equipment.  Ultra low capacitance ：1.0pF typical  Ultra low leakage：nA level  Low Operating：8V  Low clamping voltage  Protects one power line or data line  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns)  RoHS Compliant Mechanical Characteristics Applications  Package: SOD-323  Lead Finish: Matte Tin  Case Material: “Green” Molding Compound.  UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 3 per J-STD-020  Terminal Connections: See Diagram Below  Marking Information: See Below     Dimensions and Pin Configuration Marking Information USB Ports Smart Phones Wireless Systems Ethernet 10/100/1000 Base T BC Circuit and Pin Schematic BC = Device Marking Code Ordering Information Part Number Marking Packaging Reel Size PDLLC08CI BC 3000/Tape & Reel 7 inch www.pdwsemi.com 1 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDLLC08CI Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol ESD per IEC 61000−4−2 (Air) Value ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range ±30 Unit kV TJ −40 to +85 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM VBR Max Unit 8 V 8.5 Test Condition V IT = 1mA Reverse Leakage Current IR 100 nA VRWM = 8V Clamping Voltage VC 13 V IPP = 1A (8 x 20µs pulse) Clamping Voltage VC 15 V IPP = 8A (8 x 20µs pulse) Clamping Voltage VC 20 V IPP = 17A (8 x 20µs pulse) Peak Pulse Current IPP 17 A tp=8/20µs Junction Capacitance CJ pF VR = 0V, f = 1MHz www.pdwsemi.com 1.0 2 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDLLC08CI Typical Performance Characteristics (TA=25℃ unless otherwise Specified) Junction Capacitance vs. Reverse Voltage Peak Pulse Power vs. Pulse Time Clamping Voltage vs. Peak Pulse Current Power Derating Curve ESD Clamping Voltage 8 X 20μS Pulse Waveform www.pdwsemi.com 8 kV Contact per IEC61000−4−2 3 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDLLC08CI SOD-323 Package Outline Drawing A DIMENSIONS MILLIMETERS INCHES MIN MAX MIN MAX 1.50 1.80 0.060 0.071 SYM B 1.20 1.40 0.045 0.054 C 2.30 2.70 0.090 0.107 D - 1.10 - 0.043 E 0.30 0.40 0.012 0.016 F 0.10 0.25 0.004 0.010 H - 0.10 - 0.004 Suggested Land Pattern SYM www.pdwsemi.com 4 -4 DIMENSIONS MILLIMETERS INCHES A 3.15 0.120 B 0.80 0.031 C 0.80 0.031 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08
