PDCSD15CW

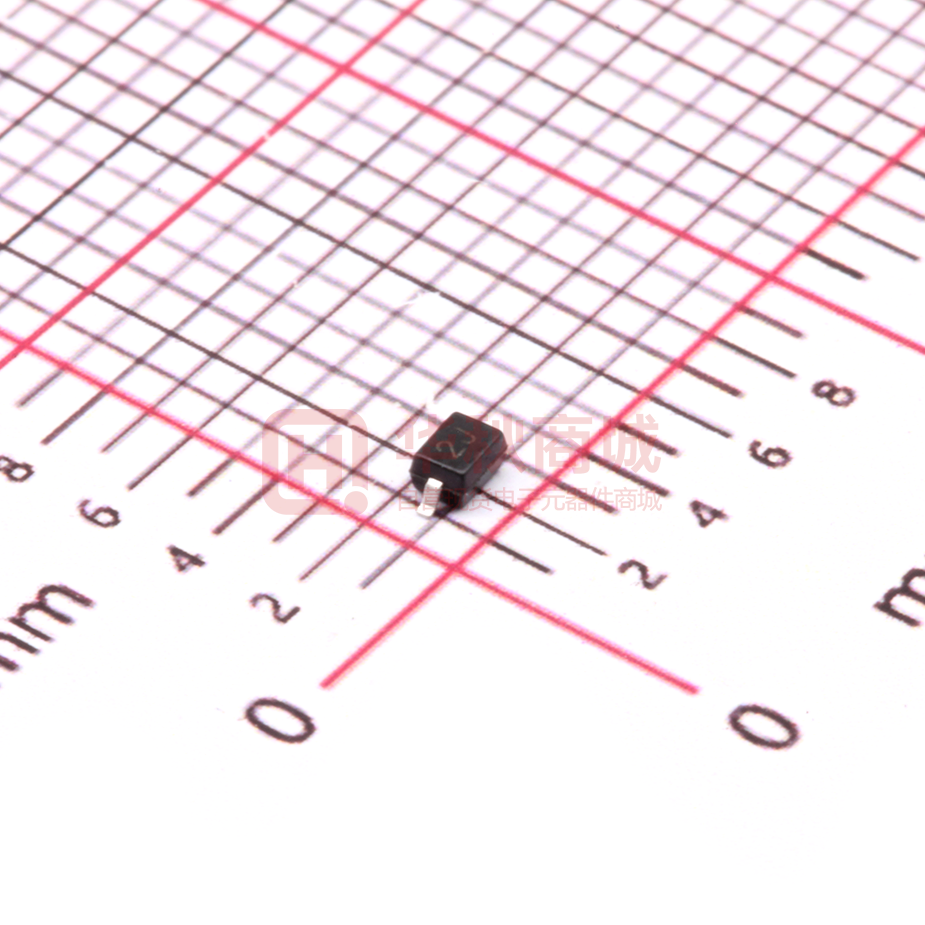

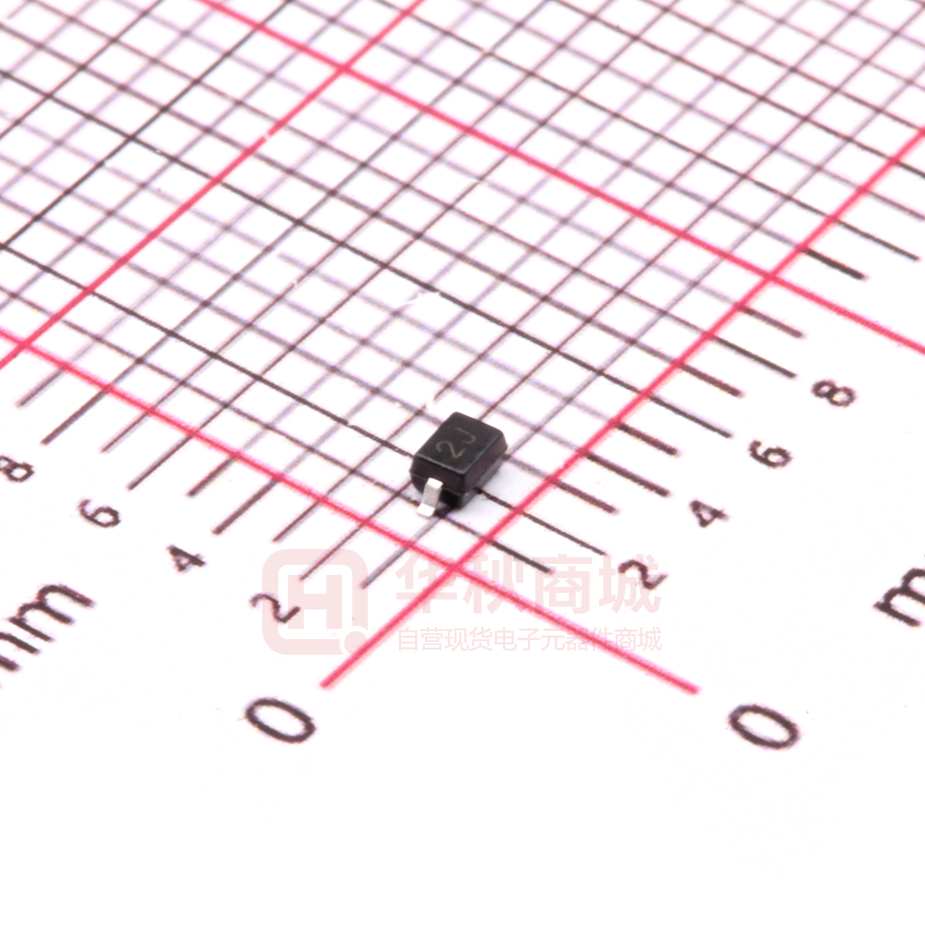

ESD Protection Diode PDCSD15CW Description Features The PDCSD15CW is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers and PDA’s, using monolithic silicon technology to provide fast response time and ultra low ESD clamping voltage, making this device an ideal solution for protecting sensitive semiconductor components from damage. The PDCSD15CW complies with the IEC 61000-42 (ESD) with ±30kV air and ±30kV contact discharge. The PDCSD15CW is assembled into a lead-free SOD-323 package and will protect one bidirectional line. These devices will fit on the same PCB pad area as an 0805 MLV device.  250W peak pulse power (8/20μs)  Protects one data or power line  Ultra low leakage：nA level  Operating voltage：15V  Ultra low clamping voltage  2-pin leadless package  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-5 (Lightning) 10A (8/20μs)  RoHS Compliant Mechanical Characteristics Applications  Package: SOD-323  Lead Finish: Matte Tin  Case Material: “Green” Molding Compound.  Moisture Sensitivity: Level 3 per J-STD-020  Terminal Connections: See Diagram Below  Marking Information: See Below        Dimensions and Pin Configuration Marking Information Cellular Handsets and Accessories Personal Digital Assistants Notebooks and Handhelds Portable Instrumentation Peripherals Pagers Peripherals Desktop and Servers 2J 2J =Device Marking Code Circuit and Pin Schematic Ordering Information Part Number Marking Packaging Reel Size PDCSD15CW 2J 3000/Tape & Reel 7 inch www.pdwsemi.com 1 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDCSD15CW Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 250 W Peak Pulse Current (8/20µs) Ipp 10 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM VBR Max Unit 15 V 16.5 Test Condition V IT = 1mA Reverse Leakage Current IR 0.5 µA VRWM = 15V Clamping Voltage VC 20 V IPP = 1A (8 x 20µs pulse) Clamping Voltage VC 25 V IPP = 10A (8 x 20µs pulse) Junction Capacitance CJ pF VR = 0V, f = 1MHz www.pdwsemi.com 17 2 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDCSD15CW Typical Performance Characteristics (TA=25℃ unless otherwise Specified) Junction Capacitance vs. Reverse Voltage Peak Pulse Power vs. Pulse Time Power Derating Curve Clamping Voltage vs. Peak Pulse Current ESD Clamping Voltage 8 kV Contact per IEC61000−4−2 8 X 20μs Pulse Waveform www.pdwsemi.com 3 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDCSD15CW SOD-323 Package Outline Drawing A DIMENSIO MILLIMETERS INCHES MIN MAX MIN MAX 1.50 1.80 0.060 0.071 SYM B 1.20 1.40 0.045 0.054 C 2.30 2.70 0.090 0.107 D - 1.10 - 0.043 E 0.30 0.40 0.012 0.016 F 0.10 0.25 0.004 0.010 H - 0.10 - 0.004 Suggested Land Pattern SYM www.pdwsemi.com 4 -4 DIMENSIONS MILLIMETERS INCHES A 3.15 0.120 B 0.80 0.031 C 0.80 0.031 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08
