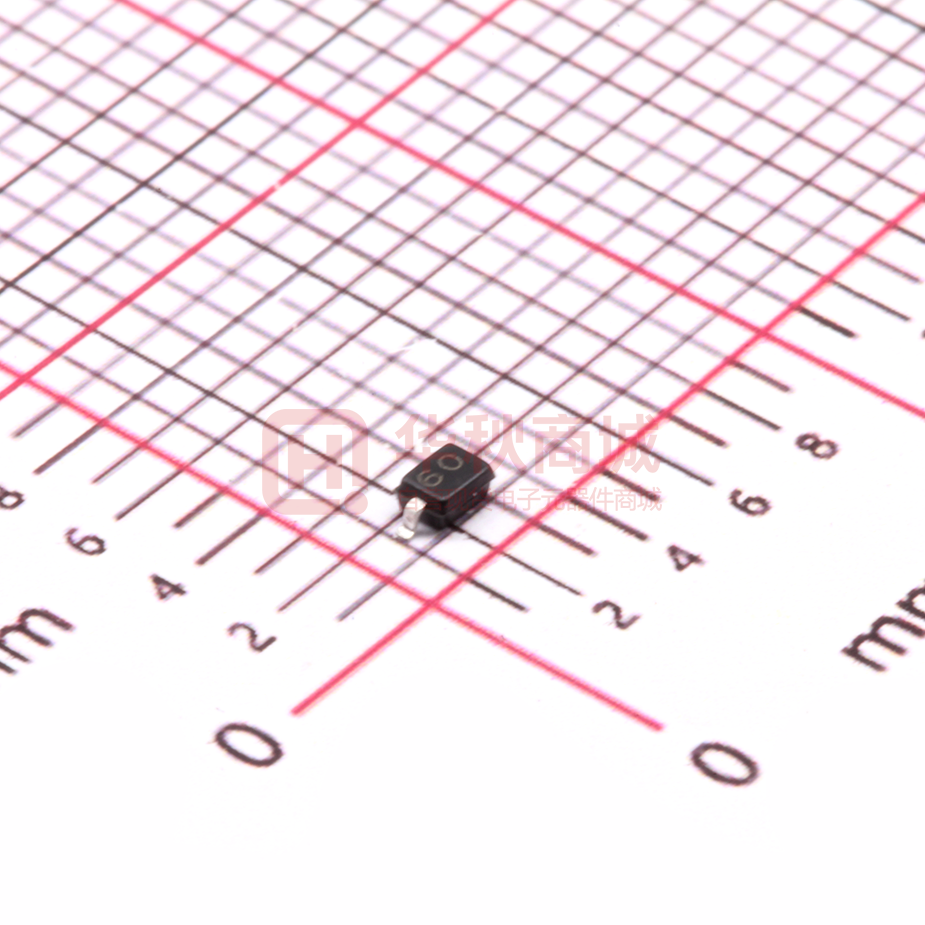

PDCSD60C

PDCSD60C

  • 厂商:

    PDW(江苏芯格诺)

  • 封装:

    SOD-323

  • 描述:

    截止电压(Vrwm):55V (最大值) 峰值脉冲电流(8/20us):2A 极性:双向 最大钳位电压:90V 击穿电压(最小值):60V

  • 数据手册
  • 价格&库存
PDCSD60C 数据手册
ESD Protection Diode PDCSD60C Description Features The PDCSD60C is a 60V bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive data and power line. The PDCSD60C complies with the IEC 61000-4-2 (ESD) standard with ±25 kV air and ±20 kV contact discharge. It is assembled into an ultra-small leadfree SOD-323 package. The small size and high ESD surge protection make PDCSD60C an ideal choice to protect cell phone, digital cameras, audio players and many other portable applications.  200W peak pulse power (8/20μs)  Protects one data or power line  Ultra low leakage:nA level  Operating voltage:60V  Low clamping voltage  2-pin leadless package  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV – IEC61000-4-5 (Lightning) 2A (8/20μs)  RoHS Compliant Mechanical Characteristics Applications  Package: SOD-323  Case Material: “Green” Molding Compound.  Moisture Sensitivity: Level 3 per J-STD-020  Terminal Connections: See Diagram Below  Marking Information: See Below        Dimensions and Pin Configuration Marking Information Cellular Handsets and Accessories Personal Digital Assistants Notebooks and Handhelds Portable Instrumentation Peripherals Digital Cameras Audio Players 60 60=Device MarkingCode Circuit and Pin Schematic Ordering Information Part Number Marking Packaging Reel Size PDCSD60C 60 3000/Tape & Reel 7 inch www.pdwsemi.com 1 -3 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDCSD60C Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 200 W Peak Pulse Current (8/20µs) Ipp 2 A ESD per IEC 61000−4−2 (Air) ±25 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range ±20 kV TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM VBR Max Unit 55 V 60 Test Condition V IT = 1mA Reverse Leakage Current IR 0.2 μA VRWM = 60V Clamping Voltage VC 80 V IPP = 1A (8 x 20µs pulse) VC 90 V IPP = 2A (8 x 20µs pulse) CJ 25 pF VR = 0V, f = 1MHz Junction Capacitance www.pdwsemi.com 2 -3 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDCSD60C SOD-323 Package Outline Drawing A DIMENSIO MILLIMETERS INCHES MIN MAX MIN MAX 1.50 1.80 0.060 0.071 SYM B 1.20 1.40 0.045 0.054 C 2.30 2.70 0.090 0.107 D - 1.10 - 0.043 E 0.30 0.40 0.012 0.016 F 0.10 0.25 0.004 0.010 H - 0.10 - 0.004 Suggested Land Pattern SYM www.pdwsemi.com 3 -3 DIMENSIONS MILLIMETERS INCHES A 3.15 0.120 B 0.80 0.031 C 0.80 0.031 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08
