PDL0521P1L

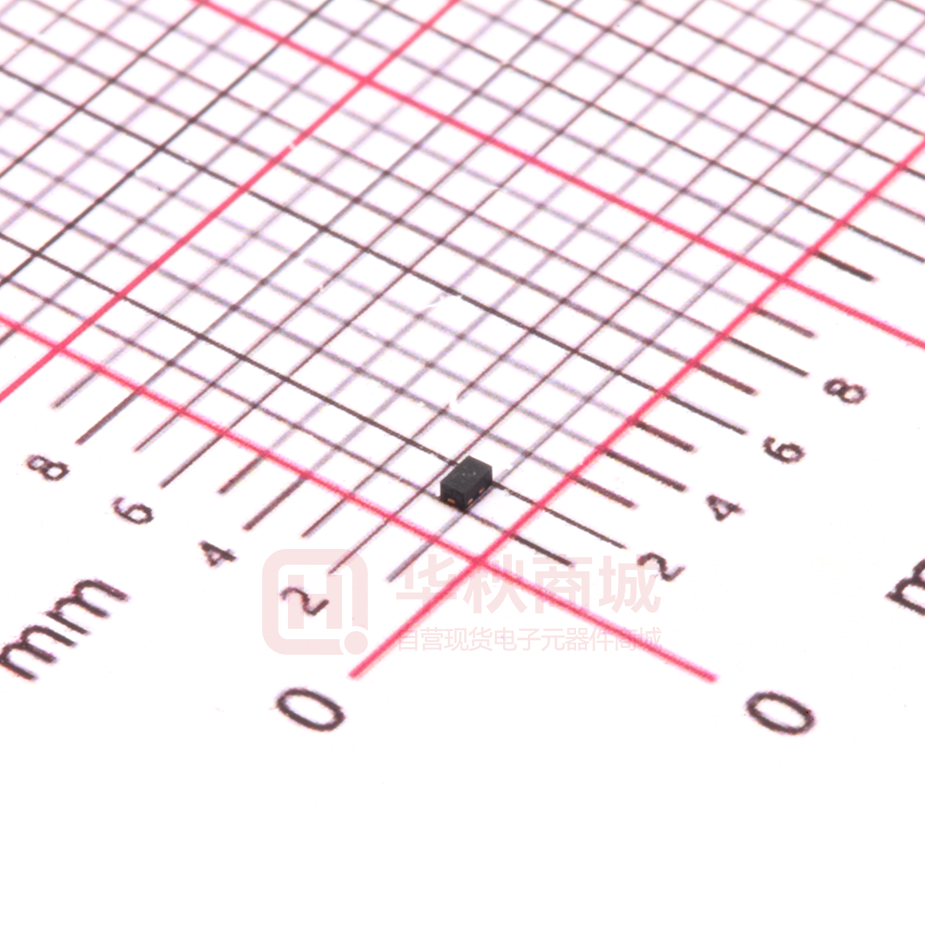

ESD Protection Diode PDL0521P1L Description Features The PDL0521P1L is a bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive highspeed data lines. The PDL0521P1L has an ultra-low capacitance with a typical value at 0.15pF, and complies with the IEC 61000-4-2 (ESD) with ±25kV air and ±22kV contact discharge. It is assembled into an ultra- small 1.0x0.6x0.5mm lead-free DFN package. The small size, ultra-low capacitance and high ESD surge protection make PDL0521P1L an ideal choice to protect cell phone, digital video interfaces and other high speed ports.  Ultra small package: 1.0 x0.6 x0.5mm  Ultra low capacitance: 0.15pF typical  Ultra low leakage：nA level  Operating voltage：5V  Low clamping voltage  AEC-Q101 qualified  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±22kV – IEC61000-4-5 (Lightning) 4A (8/20µs)  RoHS Compliant Mechanical Characteristics Applications  Package: DFN1006-2 (1.0 x0.6 x0.5mm)  Case Material: “Green” Molding Compound.  Moisture Sensitivity: Level 3 per J-STD-020  Terminal Connections: See Diagram Below  Marking Information: See Below       Dimensions and Pin Configuration Marking Information Cellular Handsets and Accessories Display Ports MDDI Ports USB Ports Digital Visual Interface(DVI) PCI Express and Serial SATA Ports 2L Package Dimensions Circuit and Pin Schematic Ordering Information Part Number Marking Packaging Reel Size PDL0521P1L 2L 10000/Tape & Reel 7 inch www.pdwsemi.com 1 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDL0521P1L Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power(8/20µs) Ppk 100 W Peak Pulse Current(8/20µs) IPP 4 A ESD per IEC 61000−4−2 (Air) ±25 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range ±22 kV TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM VBR 6.5 Max Unit Test Condition 5 V 9.5 V IT = 1mA Reverse Leakage Current IR 0.2 uA VRWM = 5V Clamping Voltage VC 12.5 V IPP = 1A (8 x 20µs pulse) Clamping Voltage VC 25 V IPP = 4A (8 x 20µs pulse) Junction Capacitance CJ 0.3 pF VR = 0V, f = 1MHz www.pdwsemi.com 0.15 2 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDL0521P1L Typical Performance Characteristics (TA=25℃ unless otherwise Specified) Junction Capacitance vs. Reverse Voltage Peak Pulse Power vs. Pulse Time Power Derating Curve Clamping Voltage vs. Peak Pulse Current 100 % of Peak Pulse Current 90 80 70 60 50 40 30 20 10 0 0 20 40 Time_t(uS) 60 80 Note：Data is taken with a 10x attenuator ESD Clamping Voltage 8 X 20μs Pulse Waveform www.pdwsemi.com 8 kV Contact per IEC61000−4−2 3 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDL0521P1L DFN1006-2 Package Outline Drawing A DIMENSIONS MILLIMETERS INCHES MIN NOM MAX MIN NOM MAX 0.450 0.500 0.550 0.018 0.020 0.022 A1 0.000 0.020 0.050 0.000 0.001 0.002 b 0.450 0.50 0.550 0.018 0.020 0.022 c 0.120 0.150 0.180 0.005 0.006 0.007 D 0.950 1.000 1.050 0.037 0.039 0.041 SYM e 0.65 BSC 0.026 BSC E 0.55 0.60 0.65 0.022 0.024 0.026 L 0.20 0.25 0.30 0.008 0.010 0.012 L1 0.05REF h 0.07 0.12 0.002REF 0.17 0.003 0.005 0.007 Suggested Land Pattern SYM www.pdwsemi.com DIMENSIONS MILLIMETERS INCHES X 0.60 0.024 Y1 0.50 0.020 Y2 0.30 0.012 Y3 0.80 0.032 Z 1.30 0.052 4 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08
