PDL0501P1

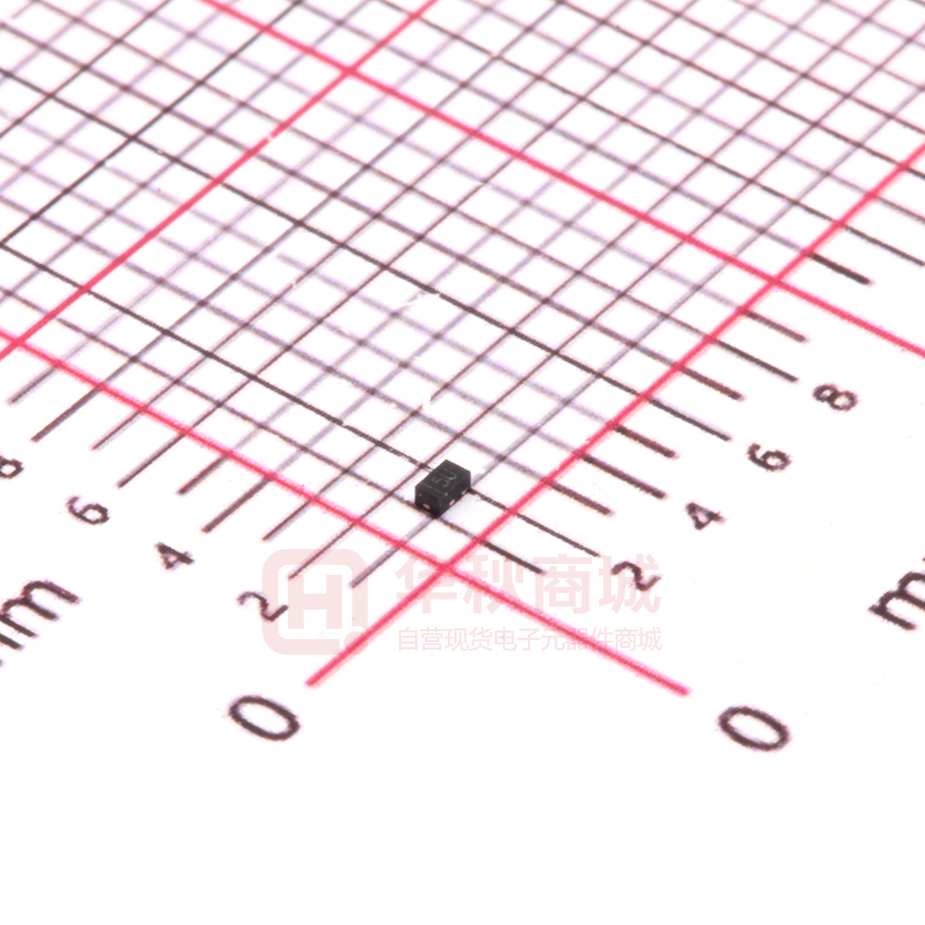

ESD Protection Diode PDL0501P1 Description Features The PDL0501P1 is an uni-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive highspeed data lines. The PDL0501P1 has an ultra- low capacitance with a typical value at 0.8pF, and complies with the IEC 61000-4-2 (ESD) standard with ±25kV air and ±20kV contact discharge. It is assembled into an ultra-small 1.0 x0.6 x 0.5mm lead-free DFN package. The small size, ultra-low capacitance and high ESD surge protection make PDL0501P1 an ideal choice to protect cell phone, digital visual interfaces, HDMI, DVI, USB2.0, USB3.0, and other high speed ports.  Ultra small package: 1.0 x0.6 x0.5mm  Ultra low capacitance: 0.8pF typical  Ultra low leakage：nA level  Operating voltage：5V  Low clamping voltage  2-pin leadless package  Complies with following standards: Mechanical Characteristics Applications  Package: DFN1006-2 (1.0 x0.6 x0.5mm)  Case Material: “Green” Molding Compound.  Moisture Sensitivity: Level 3 per J-STD-020  Terminal Connections: See Diagram Below  Marking Information: See Below       Dimensions and Pin Configuration Marking Information – IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV – IEC61000-4-5 (Lightning) 5A (8/20µs)  RoHS Compliant Cellular Handsets and Accessories Display Ports MDDI Ports USB Ports Digital Visual Interface(DVI) PCI Express and Serial SATA Ports 1.0 0.6 1 - 5U 0.5 5U = Device Marking Code Bar denotes cathode 2 Ordering Information Part Number Marking Packaging Reel Size PDL0501P1 5U 10000/Tape & Reel 7 inch www.pdwsemi.com 1 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDL0501P1 Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power(8/20µs) Ppk 80 W Peak Pulse Current(8/20µs) IPP 5 A ESD per IEC 61000−4−2 (Air) ±25 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range kV ±20 TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM VBR Max Unit 5 V Pin 1 to Pin 2 V IT = 1mA, Pin 1 to Pin 2 6 Test Condition Reverse Leakage Current IR 0.5 µA VRWM = 5V, Pin 1 to Pin 2 Clamping Voltage VC 10 V IPP = 1A (8 x 20µs pulse), Pin 1 to Pin 2 Clamping Voltage VC 16 V IPP = 5A (8 x 20µs pulse), Pin 1 to Pin 2 Junction Capacitance CJ pF VR = 0V, f = 1MHz www.pdwsemi.com 0.8 2 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDL0501P1 Typical Performance Characteristics (TA=25℃ unless otherwise Specified) Junction Capacitance vs. Reverse Voltage Peak Pulse Power vs. Pulse Time Clamping Voltage vs. Peak Pulse Current Power Derating Curve Note：Data is taken with a 10x attenuator ESD Clamping Voltage 8 X 20μs Pulse Waveform www.pdwsemi.com 8 kV Contact per IEC61000−4−2 3 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08 ESD Protection Diode PDL0501P1 DFN1006-2 Package Outline Drawing A DIMENSIONS MILLIMETERS INCHES MIN NOM MAX MIN NOM MAX 0.450 0.500 0.550 0.018 0.020 0.022 A1 0.000 0.020 0.050 0.000 0.001 0.002 b 0.450 0.50 0.550 0.018 0.020 0.022 c 0.120 0.150 0.180 0.005 0.006 0.007 D 0.950 1.000 1.050 0.037 0.039 0.041 SYM e 0.65 BSC 0.026 BSC E 0.55 0.60 0.65 0.022 0.024 0.026 L 0.20 0.25 0.30 0.008 0.010 0.012 L1 0.05REF h 0.07 0.12 0.002REF 0.17 0.003 0.005 0.007 Suggested Land Pattern SYM www.pdwsemi.com DIMENSIONS MILLIMETERS INCHES X 0.60 0.024 Y1 0.50 0.020 Y2 0.30 0.012 Y3 0.80 0.032 Z 1.30 0.052 4 -4 © 2022 PDW, Inc. Specifications are subject to change without notice. Revised: 2022/04/08
