TS-1199A26050

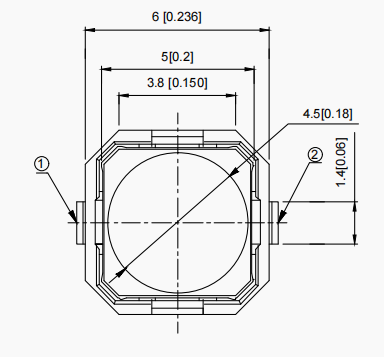

6 [0.236] CIRCUIT DIAGRAM 5[0.2] SPECIFICATION Contact Rating Contact Resistance Insulation Resistance Dielectric Strength Travel Operating Temp Storage Temp 3.8 [0.150] 2 1 1.4[0.06] 4.5[0.18] 1 2 SMD REFLOW PATTERN 50mA,12V DC 100m max 100m min.500V DC 250V AC/1minute 1.3mm -30 85 -30 80 8[0.3] 3.5[0.14] 5.0 2 [0.079] 4[0.16] Terminal 5 Contact 4 Base 3 Cover 2 Keystake 1 ITEM PAPT NAMF TER‚NO Brass（0.30t） Plating silvering 2 1 1 1 1 F.ag/Sus Natural Lcp Lcp Lcp QTY MATERIAL FINISHING REMARK 6.6[0.26] new ECN BO. DESIGNED Mikey CHECKED Tom DESCRIPTION. APPROVAL Jerry 2015/5/3 DATE. SCALT: 1/2 DRAWING NUMBER PART NAME TS-1199A26050 MODEL NAME TS-1199A26050 3RD ANGLE PROJ A REV. HANYONES TECH CO.,LTD SCALE: 3:1 FILE.NO.
