TS-1102S2605090

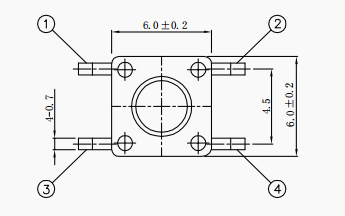

12.0 4.0 5.2 t0.4 7.5 ∅1.5 16.0 6.0 ±0.2 4.5 4-0.7 2.0 1.75 6.0 ±0.2 21.0 M 5.0 3.6 t0.3 17.0 9.0 ∅330 CIRCUIT DIAGRAM P.C.B MOUNTING HOLES 160±50gf 100,000 CYCLE 260±50gf 50,000 CYCLE 3.1 STEM HEIGT 1.RATING:DC 12V 50mA. 2.TRAVE:0.25±0.1mm. 3.CONTACT RESISTANCE:100mΩ MAX. 4.BOUNCE:10m SES MAX. 5. MODEL OPERATING FORCE LIFE CYCLES 5.9 SPECIFICATION 1,000/1REEL(EA) REEL TYPE PACKING 6.8 1,000/1REEL(EA) 12.0 new ECN BO. DESIGNED Mikey CHECKED Tom DESCRIPTION. APPROVAL Jerry 2015/5/3 DATE. SCALT: 1/2 DRAWING NUMBER PART NAME TS-1102S2605090 MODEL NAME TS-1102S2605090 3RD ANGLE PROJ A REV. HANYONES TECH CO.,LTD SCALE: 3:1 FILE.NO.
