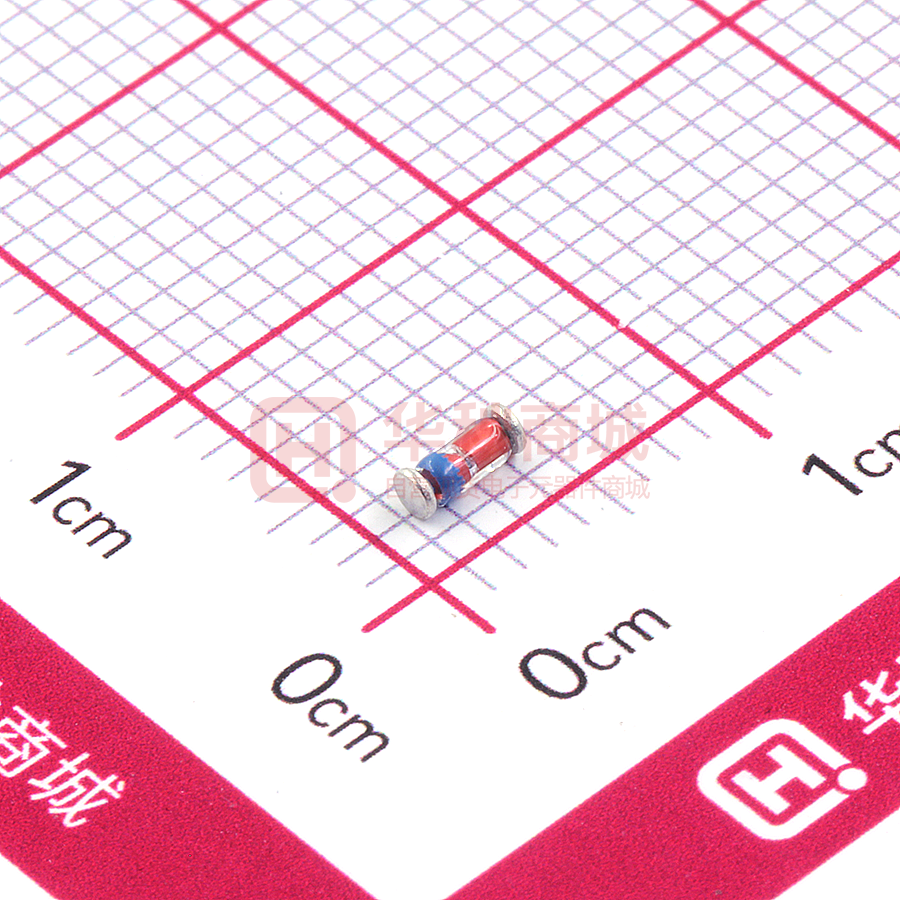

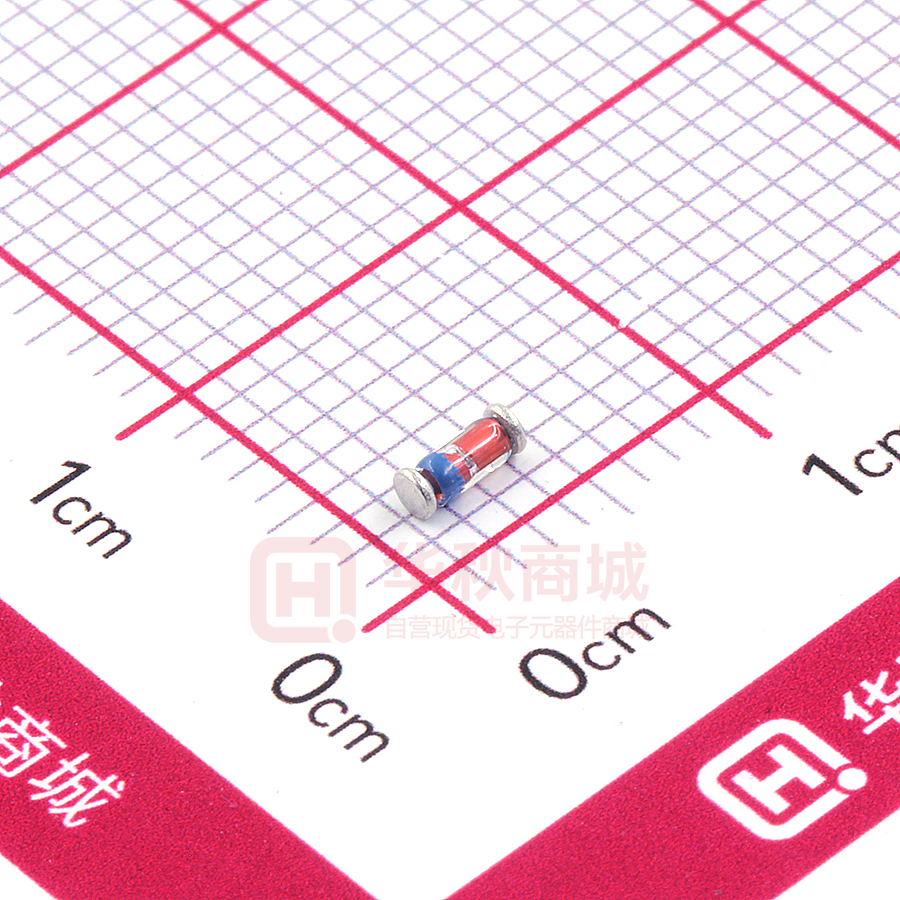

ZMM2V7PF-M

ZMMxxxPF-M Silicon Planar Zener Diodes LL-34 Features • Lead Free Absolute Maximum Ratings (Ta = 25℃) Parameter Power Dissipation 1) Junction Temperature Storage Temperature Range Symbol Value Unit Ptot 500 mW Tj 175 ℃ Tstg - 55 to + 175 ℃ Symbol Max. Unit RθJA 300 ℃/W Thermal Characteristics Parameter Thermal Resistance Junction to Ambient 1) 1) Valid provided that leads are kept at ambient temperature at a distance of 8 mm from case. 1/3 ® Dated：30/12/2021 SLB6 Rev：02 ZMMxxxPF-M Characteristics at Ta = 25℃ (VF = 1 V Max. at IF = 100 mA) Zener Voltage Range 1) Type ZMM2V0PF ZMM2V2PF ZMM2V4PF ZMM2V7PF ZMM3V0PF ZMM3V3PF ZMM3V6PF ZMM3V9PF ZMM4V3PF ZMM4V7PF ZMM5V1PF ZMM5V6PF ZMM6V2PF ZMM6V8PF ZMM7V5PF ZMM8V2PF ZMM9V1PF ZMM10PF ZMM11PF ZMM12PF ZMM13PF ZMM15PF ZMM16PF ZMM18PF ZMM20PF ZMM22PF ZMM24PF ZMM27PF ZMM30PF ZMM33PF ZMM36PF ZMM39PF ZMM43PF ZMM47PF 1) Maximum Dynamic Resistance Maximum Reverse Current Vznom VZT at IZT ZZT at IZT ZZK at IZK IR at VR V V mA Ω mA Ω mA µA V 2.0 2.2 2.4 2.7 3.0 3.3 3.6 3.9 4.3 4.7 5.1 5.6 6.2 6.8 7.5 8.2 9.1 10 11 12 13 15 16 18 20 22 24 27 30 33 36 39 43 47 1.8…2.15 2.08…2.33 2.28…2.56 2.5…2.9 2.8…3.2 3.1…3.5 3.4…3.8 3.7…4.1 4…4.6 4.4…5 4.8…5.4 5.2…6 5.8…6.6 6.4…7.2 7…7.9 7.7...8.7 8.5...9.6 9.4...10.6 10.4...11.6 11.4...12.7 12.4...14.1 13.8...15.6 15.3...17.1 16.8...19.1 18.8...21.2 20.8...23.3 22.8...25.6 25.1...28.9 28...32 31...35 34...38 37...41 40...46 44...50 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 2.5 2.5 2.5 85 85 85 85 85 85 85 85 75 60 35 25 10 8 7 7 10 15 20 20 26 30 40 50 55 55 80 80 80 80 80 90 90 110 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 2.5 2.5 2.5 600 600 600 600 600 600 600 600 600 600 550 450 200 150 50 50 50 70 70 90 110 110 170 170 220 220 220 220 220 220 220 500 500 600 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0.5 0.5 0.5 100 75 50 10 4 2 2 2 1 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 1 1 1 1 1 1 1 1 1 1 1 1 2 3 5 6.2 6.8 7.5 8.2 9.1 10 11 12 13 15 16 18 20 22 24 27 30 33 36 Tested with pulses tp = 20 ms. 2/3 ® Dated：30/12/2021 SLB6 Rev：02 ZMMxxxPF-M Electrical Characteristics Curves Fig 1. Zener Characteristics Curve Zener Current (mA) Zener Current (mA) Fig 2. Zener Characteristics Curve Zener Voltage (V) Zener Voltage (V) Fig 3. Power Derating Curve Power Dissipation (W) 0 .6 0 .5 0 .4 0 .3 0 .2 0 .1 0 0 25 50 75 100 125 150 175 Ambient Temperature (℃) 3/3 ® Dated：30/12/2021 SLB6 Rev：02
