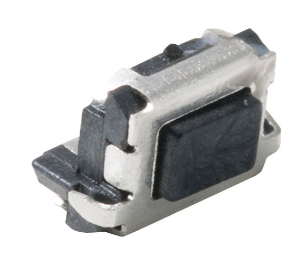

TS-1134A-B

4.5[0.18] 2.2[0.09] 2 1 3 CIRCUIT DIAGRAM 1.5[0.06] 2.9[0.12] 1 2 3 0.03[0.001] 0.55[0.02] 1[0.04] 3.6[0.14] 3.1[0.12] 2-R0.30-R0.50 TS-1134A-X PAPT NO Operating Force B:160gf C:260gf Height H:1.7 2-0.25[0.01] 3.8[0.15] 2-R0.3 MAX 1.65[0.06] 0.08[0.003] 0.3[0.01] 1[0.04] 2.2[0.09] 1.7[0.07] 2.6[0.1] 0.8[0.03] 1.35[0.05] Max 0.4[0.02] 1.5[0.06] 4.8[0.19] A SPECIFICATION Contact Rating： 50mA,12V DC Contact Resistance： 100mΩ max Insulation Resistance： 100mΩ min.500V DC Dielectric Strength： 250V AC/1minute Travel： 0.20mm Operating Temp： -30℃~+85℃ Storage Temp： -30℃~+80℃ 5.6[0.22] P.C.B LAYOUT VIEW FORM THE DIRECTIONA 2-0.6[0.02] Terminal 5 Contact 4 Base 3 Cover 2 Keystake 1 ITEM PAPT NAMF TER‚NO 2-06[0.02] 2.3[0.09] X X X MARK DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED units: tolerance: X.X X.XX X.XXX QTY Brass（0.30t） Plating silvering F.ag/Sus Natural Lcp Brass Plating Nickel Lcp MATERIAL FINISHING REMARK DSND DATE SCALE: N/A MODEL TYPE: mm DWN DATE VIEW: ±0.2mm ±0.1mm ±0.05mm CHKD DATE UNIT: mm/in APPD DATE UNSPECIFIED TOLERANCES www.helloxkb.cn 3 1 1 1 1 TACT SWITCH PART NO.: DWG NO.: SIZE: A4 XKB INDUSTRIAL PRECISION CO.,LIMITED WEIGHT 1.0g TS-1134A-X SHEET 1/1 REVISION A0
