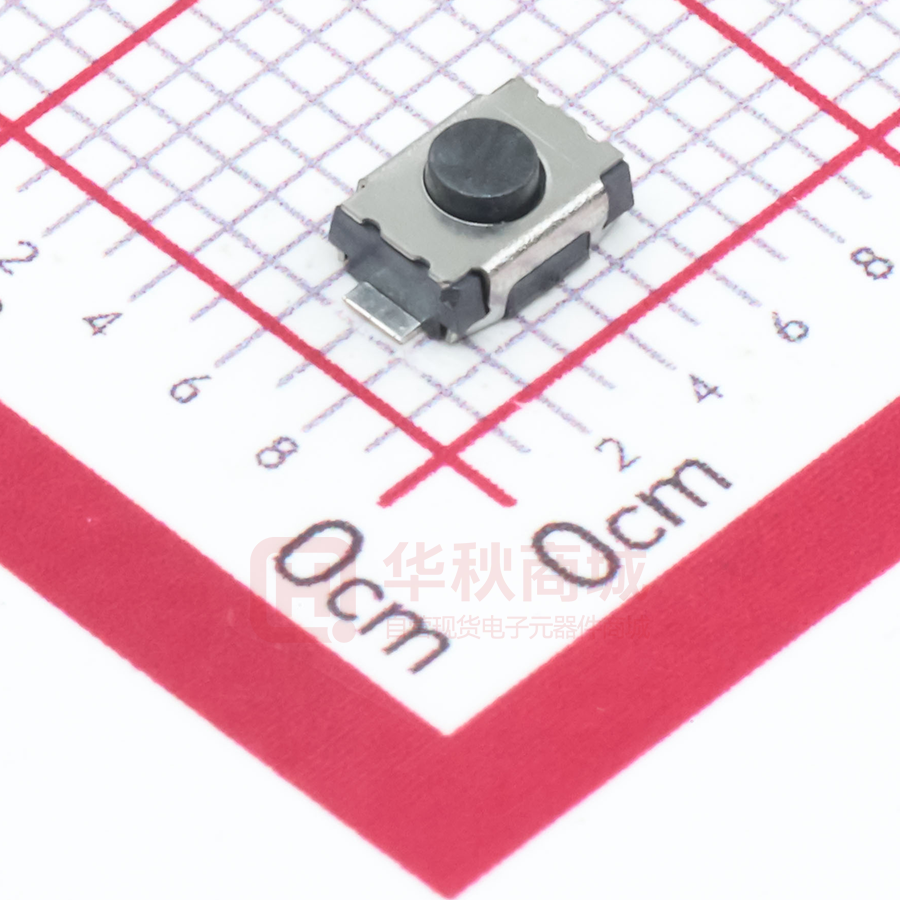

TS-1185-B-A-B-A

SPECIFICATION Contact Rating： Contact Resistance： Insulation Resistance： Dielectric Strength： Travel： Operating Temp： Storage Temp： 0.15[0.006] H 1.35[0.05] 1.7[0.07] 4.65[0.18]±0.1 50mA,12V DC 100mΩ max 100mΩ min.500V DC 250V AC/1minute 0.13mm -30℃~+85℃ -30℃~+80℃ 4-0.5[0.02] 1.5[0.06] 3[0.12]±0.1 3.65[0.14]±0.1 PAPT NO Operating Force Height TS-1185EC-X-X-X A:100gf B:160gf C:260gf H:A:1.8 B:1.85 C:1.92 D:2.0 E:2.5 Fixed column B:black W:white Terminal 5 Contact 4 Base 3 Cover 2 Keystake 1 ITEM PAPT NAMF TER‚NO 2.4[0.09] 2.6[0.1] 0.6[0.02] 5.1[0.2] X X X MARK DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED units: tolerance: X.X X.XX X.XXX QTY Brass（0.30t） Plating silvering F.ag/Sus Natural Lcp Brass Plating Nickel Lcp MATERIAL FINISHING REMARK DSND DATE SCALE: N/A MODEL TYPE: mm DWN DATE VIEW: ±0.2mm ±0.1mm ±0.05mm CHKD DATE UNIT: mm/in APPD DATE UNSPECIFIED TOLERANCES www.helloxkb.cn 2 1 1 1 1 TACT SWITCH PART NO.: DWG NO.: SIZE: A4 XKB INDUSTRIAL PRECISION CO.,LIMITED TS-1185EC-X-X-X WEIGHT 1.0g SHEET 1/1 REVISION A0
