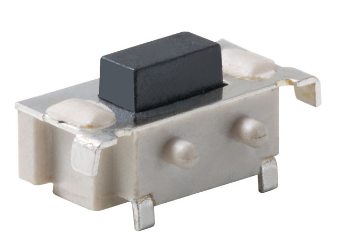

TS-1101VS-B-A-A

7.8 [0.307] 3 [0.118] CIRCUIT 2 2.3[0.09] 1 1 [0.039] 2 0.6 [0.024] 1 DIAGRAM 7 [0.276] 1.2 [0.047] 8.2[0.323] 5.8 [0.228] SPECIFICATION Contact Rating: 50mA,12V DC Dielectric Strength: Travel: Operating Temp: Storage Temp: 250V AC/1 minute 0.25mm -25 ~ 70 -30 ~ 80 PAPT NO TS-1101VS-X-X-A 1.6 [0.063] 3.4 [0.134] Operating Force A:100gf B:160gf C:260gf Height H:3.5 Fixed column Keystake A:With B:without A:PA46: B:Silica gel 1.2 [0.047] 1.3 [0.051] 2.3 [0.091] 3.2 [0.126] 5 4 3 2 1 ITEM 5.2 [0.205] units: mm tolerance: X X Terminal 2 1 1 1 1 Contact Base Cover Keystake PAPT NAMF TER NO QTY DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED UNSPECIFIED TOLERANCES www.helloxkb.cn ag Plated 0.30t F.ag/SUS PA46 Brass Tin plated PA46 MATERIAL FINISHING DSND DATE SCALE: N/A MODEL TYPE: DWN DATE VIEW: CHKD DATE UNIT: mm/in APPD DATE REMARK TACT SWITCH PART NO.: DWG NO.: X MARK Brass SIZE: A4 XKB INDUSTRIAL PRECISION CO.,LIMITED TS-1101VS-X-X-A WEIGHT 1.0g SHEET 1/1 REVISION A0
